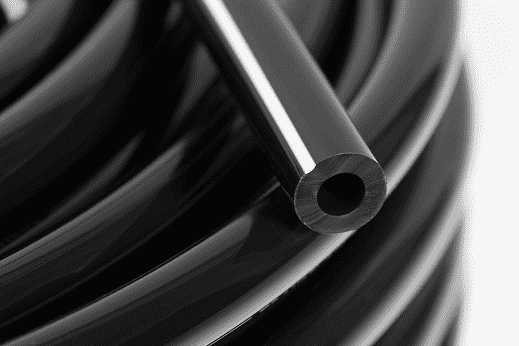

ACS02029 Tygon S3™ by Saint Gobain | 3/8" ID x 5/8" OD x 1/8" Wall | Black A24-C | Single Tube Black Vacuum Air Tubing | 100' Package Length
Minimum Order Quantity: 28 Units
Saint Gobain - Transflow S3® Single & Twin Tube A24-C Black Vacuum (Air) Tubing
No by the foot sales. This is a Packaged Length product.
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $133.24 |
| 30–59 | $120.48 |
| 60+ | $106.31 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
44
Tubing Construction:
Specifications and Approvals:
SPECIFICATIONS
| Application: | Supply Air Transport | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | N/A |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -32 deg. F (-36 deg. C) - 165 deg. F (74 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | FDA, 3-A |
| Literature: | Transflow S3® Single & Twin Tube A24-C Black Vacuum (Air) Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Min. Bend Radius (in.) | Max. Working Pressure at 73 deg. F (PSI)* | Vacuum Rating at 73 deg. F (in. Hg) | Length |
|---|---|---|---|---|---|---|---|
| ACS02019 | 1/4" | 1/2" | 1/8" | 5/8" | 60 PSI | 29.9 in. Hg | 100ft |
| ACS02021 | 9/32" | 17/32" | 1/8" | 3/4" | 55 PSI | 29.9 in. Hg | 100ft |
| ACS02029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 44 PSI | 29.9 in. Hg | 100ft |
| ACS02034 | 7/16" | 11/16" | 1/8" | 1-3/8" | 39 PSI | 29.9 in. Hg | 100ft |
| ACS02038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 34 PSI | 26.0 in. Hg | 100ft |
| Twin Tube | |||||||
| ACS02916 | 1/4" | 1/2" | 1/8" | 5/8" | 60 PSI | 29.9 in. Hg | 100ft |
| ACS02917 | 9/32" | 17/32" | 1/8" | 3/4" | 55 PSI | 29.9 in. Hg | 100ft |
| ACS02918 | 3/8" | 5/8" | 1/8" | 1-1/8" | 55 PSI | 29.9 in. Hg | 100ft |
