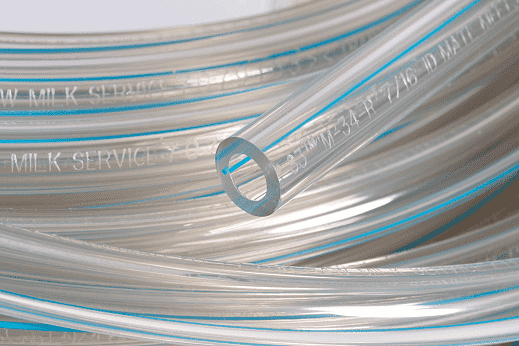

ACK37061 Tygon S3™ by Saint Gobain | 7/8" ID x 1-3/8" OD x 1/4" Wall | M-34-R | Raw Milk Tubing | 300' Package Length
Saint-Gobain

ACK37061 Tygon S3™ by Saint Gobain | 7/8" ID x 1-3/8" OD x 1/4" Wall | M-34-R | Raw Milk Tubing | 300' Package Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Raw Milk Transport Lines SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -32 deg. F (-36 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA, 3-A
Literature: Tygon S3™ Raw Milk Tubing Formulation M-34-R (PDF)
Other Features:
  • Crystal Clarity Permits Visiual Inspection of Milk Flow
  • Smooth, Non-Porous Bore Resists Build Up
  • Lightweight and Flexible for Quick Installation
  • Non-Wetting Properties Allow Easy Cleaning and Complete Drainage
  • Durability for Long and Reliable Service
  • WARNING: Tygon S3™ Raw Milk Tubing Formulation M-34-R is not intended as an implant material.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
ACK02035 7/16" 3/4" 5/32" 1-1/8" 45 PSI 29.9 in. Hg 100ft
ACK02039 1/2" 13/16" 5/32" 1-1/2" 40 PSI 29.9 in. Hg 100ft
ACK00043 9/16" 15/16" 3/16" 1-1/2" 43 PSI 29.9 in. Hg 50ft
ACK02043 9/16" 5/16" 3/16" 1-1/2" 43 PSI 29.9 in. Hg 100ft
ACK03043 9/16" 15/16" 3/16" 1-1/2" 43 PSI 29.9 in. Hg 250ft
ACK04043 9/16" 15/16" 3/16" 1-1/2" 43 PSI 29.9 in. Hg 500ft
ACK02048 5/8" 1" 3/16" 1-3/4" 40 PSI 29.9 in. Hg 100ft
ACK03048 5/8" 1" 3/16" 1-3/4" 40 PSI 29.9 in. Hg 250ft
ACK04048 5/8" 1" 3/16" 1-3/4" 40 PSI 29.9 in. Hg 500ft
ACK02056 3/4" 1-5/32" 13/64" 2-1/4" 36 PSI 29.9 in. Hg 100ft
ACK07056 3/4" 1-5/32" 13/64" 2-1/4" 36 PSI 29.9 in. Hg 400ft
ACK00061 7/8" 1-3/8" 1/4" 2-1/2" 38 PSI 29.9 in. Hg 50ft
ACK02061 7/8" 1-3/8" 1/4" 2-1/2" 38 PSI 29.9 in. Hg 50ft
ACK37061 7/8" 1-3/8" 1/4" 2-1/2" 38 PSI 29.9 in. Hg 300ft
ACK00065 1" 1-1/2" 1/4" 3" 34 PSI 25.0 in. Hg 50ft
ACK02065 1" 1-1/2" 1/4" 3" 34 PSI 25.0 in. Hg 100ft
ACK36075 1-1/2" 2-1/4" 3/8" 4-3/8" 34 PSI 26.0 in. Hg 60ft
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
