ALR00700 Tygon® by Saint Gobain | 2/25" I.D. x 7/50" OD x 3/100" Wall | LP-1200 Series | EPA Compliant Fuel Tubing | 50ft Length

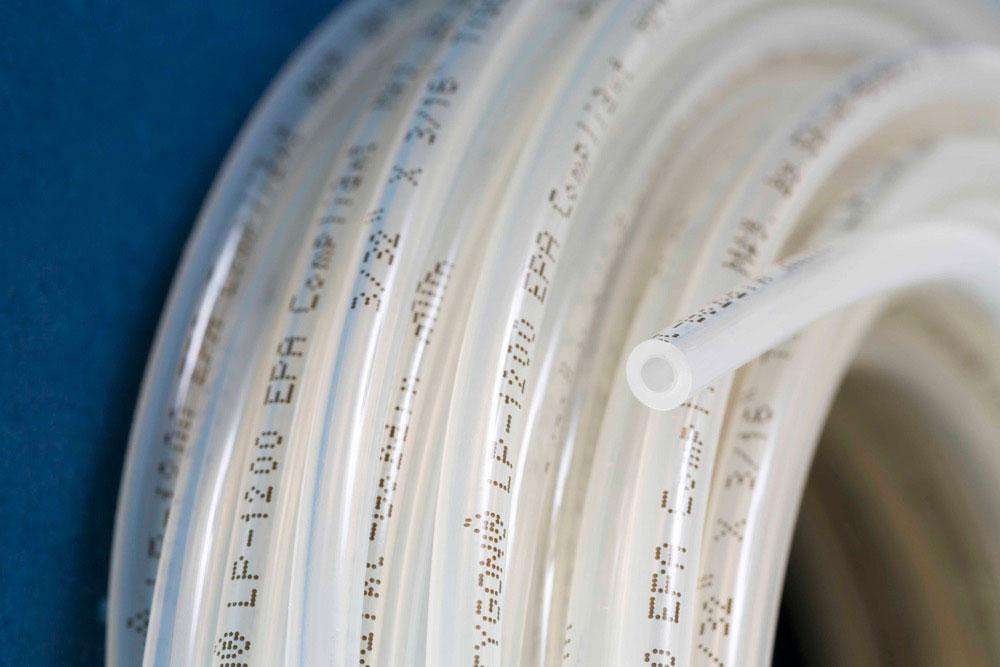

Saint Gobain - Tygon® LP-1200 Tubing: Clear, High-Performance Fuel Tubing for Small Engines.
Designed to meet Clean Air Regulatory Standards and maintain flexibility in frigid temperatures.
Tygon® LP-1200 Low Permeation Fuel Tubing is specially designed to meet new EPA and CARB evaporative emission standards of 15g/m2/day. The patent-pending design and robust multi-layer construction offers superior fitting retention and resistance to swelling, hardening, and cracking caused by hydrocarbon-based fluids.
LP-1200 is also designed to retain flexibility in frigid temperatures. Its formulation helps to prevent rupture while maintaining tube flexibility, lowering the risk of fuel system failure in cold weather conditions.
LP-1200 tubing is ideal for lawn and garden power equipment, small engine fuel lines, and lubricating oil and grease transfer lines. It meets ANSI B175.1 Annex D standard.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $55.57 |
| 40–79 | $50.25 |
| 80+ | $44.34 |
Product Data:
70
SPECIFICATIONS
| Application: | Brush Cutters, Chainsaws, Cut-Off Machines, Earth/Ice Augers, Edgers, Engine Drills, Hedge & Weed Trimmers, Leaf Blowers, Pole Pruners, Split-boom Products, Tillers |
SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | Meets ANSI B175.1 Annex D Standard UV Testing | Tube: | N/A |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | 180°F (82°C) to -130°F (-90°C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Literature: | Tygon® LP-1200 Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Length | Min. Bend Radius | Max. Working Pressure | Vacuum Rating |
|---|---|---|---|---|---|---|---|
| ALR00700 | 2/25" | 7/50" | 3/100" | 50ft | 1/4" | 70 PSI | 29.9 inHG |
| ALR00165 | 3/32" | 3/16" | 3/64" | 50ft | 1/4" | 65 PSI | 29.9 inHG |
| ALR00007 | 1/8" | 1/4" | 1/16" | 50ft | 3/8" | 60 PSI | 29.9 inHG |
| ALR00012 | 3/16" | 5/16" | 1/16" | 50ft | 1/2" | 45 PSI | 29.9 inHG |
| ALR00017 | 1/4" | 3/8" | 1/16" | 50ft | 5/8" | 30 PSI | 29.9 inHG |
*Working Pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.
The values listed for working and burst pressures are derived from tests conducted under controlled laboratory conditions. Many factors will reduce the tubing's ability to withstand pressures, including temperature, chemical attack, stress, pulsation and the attachment to fittings. It is imperative that the user conduct tests simulating the conditions of the application prior to specifying the tubing for use.
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
