ACG00038 Tygon® by Saint Gobain | 1/2" I.D. x 3/4" O.D x 1/8" Wall | Formulation 2475 | High Purity Tubing | 50' Package Length
Saint Gobain - Tygon® High Purity Tubing - Formulation 2475
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $327.33 |
| 15–29 | $295.99 |
| 30+ | $261.17 |
Product Data:
20
SPECIFICATIONS

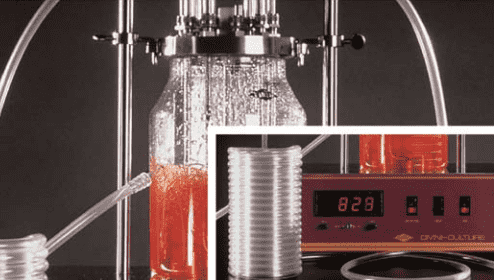

| Application: | Sterile filling and Dispensing Systems, Diagnostic Equipment, Nuclear Equipment, Laboratory Analytical Instrumentation, Infusion Sets for Parenterals and Drugs, Cosmetic Production, Food and Beverage Processing, Cell and Tissue Culture Transport | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | N/A |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -108 deg. F (-78 deg. C) - 125 deg. F (52 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | FDA 21 CFR, USP Class VI |
| Literature: | Tygon® High Purity Tubing - Formulation 2475 (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Min. Bend Radius (in.) | Max. Suggested Working Pressure at 180 deg. F (PSI)* | Vacuum Rating at 73 deg. F (in. Hg) | Length |
|---|---|---|---|---|---|---|---|
| ACG00003 | 1/16" | 3/16" | 1/16" | 1/4" | 60 PSI | 29.9 in. Hg | 50ft |
| ACG00007 | 1/8" | 1/4" | 1/16" | 3/8" | 45 PSI | 29.9 in. Hg | 50ft |
| ACG00012 | 3/16" | 5/16" | 1/16" | 5/8" | 35 PSI | 29.9 in. Hg | 50ft |
| ACG00017 | 1/4" | 3/8" | 1/16" | 1" | 25 PSI | 29.9 in. Hg | 50ft |
| ACG00022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 17 PSI | 29.9 in. Hg | 50ft |
| ACG00027 | 3/8" | 1/8" | 1/16" | 1-5/8" | 15 PSI | 25.0 in. Hg | 50ft |
| ACG00038 | 1/2" | 3/4" | 1/8" | 1-7/8" | 20 PSI | 29.9 in. Hg | 50ft |
| ACG00046 | 5/8" | 7/8" | 1/8" | 2-7/8" | 17 PSI | 29.9 in. Hg | 50ft |
| ACG00053 | 3/4" | 1" | 1/8" | 3" | 16 PSI | 29.9 in. Hg | 50ft |
| ACG42064 | 1" | 1-3/8" | 3/16" | 3" | 19 PSI | 29.9 in. Hg | 25ft |
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
