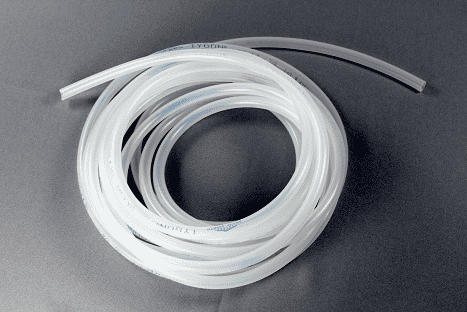

ABW53NSF Tygon® by Saint Gobain | 3/4" ID x 1" OD x 1/8" Wall | SPT-3350 | Silicone Tubing for Food & Beverage Transfer | Old Part #: ABW00053 | 50' Package Length

ABW53NSF Tygon® by Saint Gobain | 3/4" ID x 1" OD x 1/8" Wall | SPT-3350 | Silicone Tubing for Food & Beverage Transfer | Old Part #: ABW00053 | 50' Package Length

Minimum Order Quantity: 10 Units

Sale price$816.99

Saint Gobain - Tygon® Silicone Tubing for Food & Beverage Transfer - Formulation SPT-3350

The inner surface of Tygon® SPT-3350 silicone tubing for food & beverage dispensing has been designed to reduce the risk of particle entrapment and microscopic build-up during fluid transfer.

A smoother fluid path helps to facilitate complete sanitation of a fluid transfer system. Even in repeat use applications, Tygon® SPT-3350 tubing may prevent residue build-up, aiding in complete cleaning and sterilization.

No by the foot sales. This is a Packaged Length product. 2-14 Week Lead Times.

Package Quantity: 50 FT

Buy More, Save More!
Quantity Price Each
5–14 $767.97
15–29 $694.44
30+ $612.74
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tygon
Series:
  • SPT-3350
Color(s):
  • Clear/Semi-Clear
Application: Food and Beverage Dispensing SAE Rating: N/A
Other Ratings: N/A Tube: Silicone
Reinforcement: N/A Cover: N/A
Temperature Range: -112 deg. F (-80 deg. C) - 400 deg. F (204 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3-A Sanitary Standard No. 18-01 FDA 21 CFR 175.300 NSF 51**
Literature: Tygon® Silicone Tubing for Food & Beverage Transfer - Formulation SPT-3350 (PDF)
Other Features:
  • Ultra-smooth inner bore reduces potential for particle entrapment
  • Minimal extractables help maintain fluid integrity
  • Excellent fluid flow characteristics
  • Complete inventory of standard sizes available, including metric sizes
  • Tygon® Silicone Tubing for Food & Beverage Transfer - Formulation SPT-3350 is not intended as an implant material.
Part Number Inside Diameter Outside Diameter Wall Thickness Length Min. Bend Radius Max. Working Pressure Vacuum Rating
(in.) (in.) (in.) (in.) 73 deg. F (PSI)* 320 deg. F (PSI)* inHg at 73 deg. F* inHg at 320 deg. F*
ABW01NSF 1/32" 3/32" 1/32" 50ft 1/2" 22 PSI 21 PSI 29.9 in. Hg 29.9 in. Hg
ABW02NSF 1/16" 1/8" 1/32" 50ft 1/4" 14 PSI 13 PSI 29.9 in. Hg 29.9 in. Hg
ABW03NSF 1/16" 3/16" 1/16" 50ft 1/4" 22 PSI 21 PSI 29.9 in. Hg 29.9 in. Hg
ABW04NSF 3/32" 5/32" 1/32" 50ft 1/4" 11 PSI 10 PSI 29.9 in. Hg 29.9 in. Hg
ABW05NSF 3/32" 7/32" 1/16" 50ft 1/4" 18 PSI 16 PSI 29.9 in. Hg 29.9 in. Hg
ABW06NSF 1/8" 3/16" 1/32" 50ft 3/8" 9 PSI 8 PSI 20.0 in. Hg 15.0 in. Hg
ABW07NSF 1/8" 1/4" 1/16" 50ft 1/2" 14 PSI 13 PSI 29.9 in. Hg 29.9 in. Hg
ABW09NSF 5/32" 7/32" 1/32" 50ft 3/4" 7 PSI 6 PSI 10.0 in. Hg 10.0 in. Hg
ABW11NSF 3/16" 1/4" 1/32" 50ft 1" 7 PSI 6 PSI 5.0 in. Hg 5.0 in. Hg
ABW12NSF 3/16" 5/16" 1/16" 50ft 1/2" 11 PSI 10 PSI 25.0 in. Hg 25.0 in. Hg
ABW13NSF 3/16" 3/8" 3/32" 50ft 3/8" 14 PSI 13 PSI 29.9 in. Hg 29.9 in. Hg
ABW14NSF 3/16" 7/6" 1/8" 50ft 3/8" 18 PSI 16 PSI 29.9 in. Hg 29.9 in. Hg
ABW16NSF 1/4" 5/16" 1/32" 50ft 1-1/2" 5 PSI 4 PSI 1.0 in. Hg 1.0 in. Hg
ABW17NSF 1/4" 3/8" 1/16" 50ft 3/4" 9 PSI 8 PSI 15.0 in. Hg 15.0 in. Hg
ABW18NSF 1/4" 7/16" 3/32" 50ft 5/8" 12 PSI 11 PSI 29.9 in. Hg 29.9 in. Hg
ABW19NSF 1/4" 1/2" 1/8" 50ft 5/8" 14 PSI 13 PSI 29.9 in. Hg 29.9 in. Hg
ABW22NSF 5/16" 7/16" 1/16" 50ft 1-1/4" 7 PSI 6 PSI 5.0 in. Hg 5.0 in. Hg
ABW23NSF 5/16" 1/2" 3/32" 50ft 5/8" 10 PSI 9 PSI 20.0 in. Hg 20.0 in. Hg
ABW27NSF 3/8" 1/2" 1/16" 50ft 1-1/2" 9 PSI 8 PSI 5.0 in. Hg 5.0 in. Hg
ABW28NSF 3/8" 9/16" 3/32" 50ft 1" 11 PSI 10 PSI 20.0 in. Hg 15.0 in. Hg
ABW29NSF 3/8" 5/8" 1/8" 50ft 1" 12 PSI 11 PSI 29.9 in. Hg 29.9 in. Hg
ABW32NSF 7/16" 9/16" 1/16" 50ft 1-1/2" 4 PSI 3 PSI 2.0 in. Hg 2.0 in. Hg
ABW33NSF 7/16" 5/8" 3/32" 50ft 1-3/4" 8 PSI 7 PSI 10.0 in. Hg 10.0 in. Hg
ABW36NSF 1/2" 5/8" 1/16" 50ft 3" 5 PSI 4 PSI 1.0 in. Hg 1.0 in. Hg
ABW37NSF 1/2" 11/16" 3/32" 50ft 1-3/4" 7 PSI 6 PSI 5.0 in. Hg 5.0 in. Hg
ABW38NSF 1/2" 3/4" 1/8" 50ft 1-1/2" 9 PSI 8 PSI 15.0 in. Hg 15.0 in. Hg
ABW45NSF 5/8" 13./16" 3/32" 50ft 3" 6 PSI 5 PSI 5.0 in. Hg 0.0 in. Hg
ABW46NSF 5/8" 7/8" 1/8" 50ft 2-1/2" 7 PSI 6 PSI 10.0 in. Hg 10.0 in. Hg
ABW53NSF 3/4" 1" 1/8" 50ft 2-1/2" 7 PSI 6 PSI 1.0 in. Hg 1.0 in. Hg
ABW62NSF 1" 1-1/4" 1/8" 50ft 5" 5 PSI 4 PSI 0.0 in. Hg 0.0 in. Hg
ABW69NSF 1-1/4" 1-1/2" 1/8" 50ft 6" 5 PSI 4 PSI 0.0 in. Hg 0.0 in. Hg
ABW74NSF 1-1/2" 2" 1/4" 50ft 7" 6 PSI 5 PSI 1.0 in. Hg 1.0 in. Hg
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 **Only US Manufacturing sites are NSF compliant. For EU manufacturing sites, NSF compliance is in progress. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
