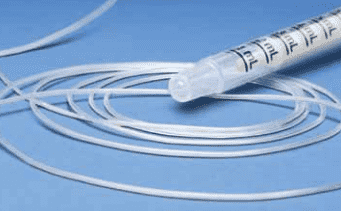

AAD04103 Tygon® by Saint Gobain | .020 I.D. x .060 O.D. x .020" Wall | ND 100-80 Non-DEHP | Microbore Tubing | 500' Package Length
Saint-Gobain

AAD04103 Tygon® by Saint Gobain | .020 I.D. x .060 O.D. x .020" Wall | ND 100-80 Non-DEHP | Microbore Tubing | 500' Package Length

Sale price$230.17

Saint Gobain - Tygon® Microbore Tubing (NON-DEHP) - Formulation ND 100-80

No by the foot sales. This is a Packaged Length product.

Package Quantity: 500 FT

Product Data:

Brand:
  • Tygon
Series:
  • ND 100-80
Color(s):
  • White/Off-White

SPECIFICATIONS

Application: Draining Blood, Catheters, Intravenous or Intra-arterial Infusion, Surgical and Hospital SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -31 deg. F (-35 deg. C) - 185 deg. F (85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications USP Class VI, REACH Compliant
Literature: Tygon® Microbore Tubing (NON-DEHP) - Formulation ND 100-80 (PDF)
Other Features:
    • High rigidity for kink resistance
    • Compatible with blood
    • Clear, with a glass-smooth inner bore
    • Reduced flexibility for suction applications
    • WARNING: Tygon® Microbore Tubing (NON-DEHP) - Formulation ND 100-80 is not intended as an implant material.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Needle Gauge Length
AAD04091 .010" .030" .010" 30 500ft
AAD04103 .020" .060" .020" 23 500ft
AAD04119 .030" .090" .030" 20-21 500ft
AAD04127 .040" .070" .010" 18-20 500ft
AAD04133 .050" .090" .020" 17-18 500ft

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
