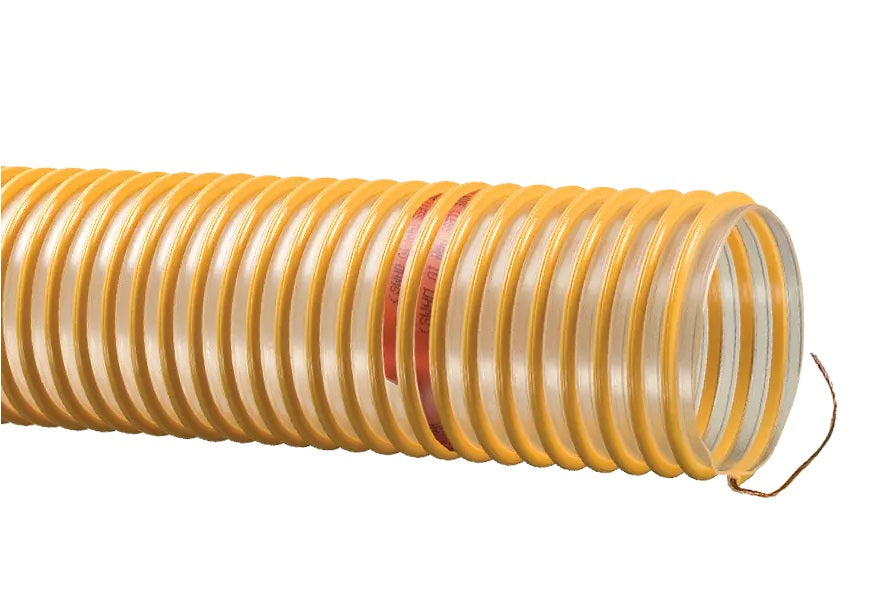

TV202X60 Tigerflex® Tigervapor™ by Kuriyama | TV™ Series | Standard Duty Vapor Recovery Hose | Polyurethane (TPU) | 2.02" ID | 2.46" OD | 60ft Length

TV202X60 Tigerflex® Tigervapor™ by Kuriyama | TV™ Series | Standard Duty Vapor Recovery Hose | Polyurethane (TPU) | 2.02" ID | 2.46" OD | 60ft Length

Sale price$595.39
p>Kuriyama of America Inc.
Tigerflex® | Tigervapor™ TV™ Series | Standard Duty Vapor Recovery Hose | Polyurethane (TPU)

Designed for tank truck vapor recovery.

Biofuel Compatible.

Made in the USA.


Package Quantity: 60 Foot

Buy More, Save More!
Quantity Price Each
5–14 $559.67
15–29 $506.08
30+ $446.54
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tigervapor
  • Tigerflex
Series:
  • TV Series
Color(s):
  • Yellow & Clear/Semi-Clear
Applications: Tank truck vapor recovery.
Specially designed to handle gasoline, ethanol**, diesel and biodiesel** vapors (Meeting ASTM D5798, D4806 or D6751 criteria.).
Tube: Polyurethane (TPU). Reinforcement: Rigid PVC helix. Embedded grounding wire.
Cover: - Service Temperature Range: -40ºF (-40ºC) to +140ºF (+60ºC)
(Actual service temperature range is application dependent)
Specifications: -
What are the Features?
  • Lightweight - much lighter than conventional TPR/rubber hoses.
  • Superior Flexibility - especially in sub-zero weather!
  • "See-through" Construction - for visual confirmation if fuel backs up into the vapor recovery system.
  • Grounding Wire - Durable multi-strand copper wire dissipates static electricity. Physically extract wire from the rigid helix and bond to the metal coupling (or by other means) to ground.+
  • Easy Slide Helix - Rigid counter clockwise helix design protects hose tube from cover wear; allows hose to slide easily over rough surfaces.
  • Biofuel Compatible - Revolutionary polyurethane compound! Specially designed to handle gasoline, ethanol**, diesel and biodiesel** vapors... and still keeps all the other great features and benefits! (Meeting ASTM D5798, D4806 or D6751 criteria.)
  • Non-permeable Polyurethane Construction - won't swell or become stiff like conventional TPR/rubber hoses. Long life reduces operating costs.
  • Hose ID specifically designed for use with Kuriyama Couplings.
  • Note: OD measured over helix.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
60ft		 Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
TV202X60 TV202X100 2.02" 51.3mm 2.46" 62.5mm 17 PSI 6 PSI 21 in Hg 12 in Hg 3.0" 0.51 lbs
TV303X60 TV303X100 3.03" 77.0mm 3.57" 90.7mm 11 PSI 5 PSI 18 in Hg 10 in Hg 3.5" 0.78 lbs
TV404X60 TV404X100 4.04" 102.6mm 4.61" 117.1mm 9 PSI 4 PSI 13 in Hg 8 in Hg 4.5" 1.10 lbs
