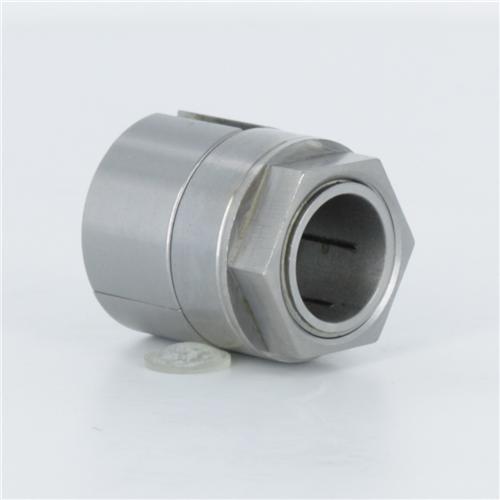

TTQM1023 by Fenner Drives | Trantorque Mini | 10mm | Steel

Overview:
The Trantorque Mini Series 10mm Keyless Bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 10mm in diameter by means of a mounted mechanical interference fit and transmits up to 68 Nm of torque.
Description:
Trantorque Mini Series 10mm Keyless Bushings provide a zero-backlash frictional connection that will never wear or pound out and can accommodate high-torque, thrust, bending, and/or radial loads. This product has exceptional concentricity and the ability to accommodate bending loads. The Trantorque Mini Series has limited axial movement during installation. All Trantorque units use a single hex nut for speed and simplicity of installation. Best Suited For: Small shaft applications where speed and simplicity of installation and repositioning are critical. Exceptional concentricity and ability to accommodate bending loads Limited axial movement during installation All Trantorque units use a single hex nut for speed and simplicity of installation Features of Fenner Drives Keyless Bushings: Ability to transmit higher torques than keyed connections True zero-backlash Less equipment downtime Ability to mount over existing keyways Complete axial and radial adjustability Simple installation, adjustment and removal All Fenner Drives keyless locking devices operate using the simple wedge principle. An axial force is applied- by either a hex nut (Trantorque) or a series of annular screws (B-LOC)- to engage circular steel rings with mating tapers. The resulting wedge action creates a radial force on the tapered rings, one of which contracts to squeeze the shaft while the other expands and presses into the component bore.

SPECIFICATIONS

Series:	Trantorque Mini	Torque Transmission:	68 Nm
Axial Movement:	Approximately 1.9mm	Compliancy:	RoHS
Component Bore Diameter:	23mm	Hub Pressure:	123 N/mm2
Installation Torque:	44 Nm	Internal/ External:	Internal
Material:	Steel	Metric/Inch:	Metric
Releasing/ Locking:	Locking	Self-Centering:	Yes
Shaft Diameter:	10mm	Taper:	Single
Thrust:	14 kN

Part Number	d	D	L	L1	Wrench Size	B	Ma*	Mt * Max. Transmitted	Th Max. Transmitted	Ph
Steel	(mm)	(mm)	(mm)	(mm)	A (mm)	(mm)	Install Torque (Nm)	Torque (Nm)	Thrust (kN)	Hub Pressure (psi)
TTQM0316	3mm	16mm	10mm	19mm	13mm	3mm	14	10	6	112
TTQM0416	4mm	16mm	10mm	19mm	13mm	3mm	14	13	6	112
TTQM0516	5mm	16mm	10mm	19mm	13mm	3mm	14	16	6	112
TTQM0616	6mm	16mm	10mm	19mm	13mm	3mm	14	19	6	112
TTQM0720	7mm	20mm	11mm	22mm	16mm	3mm	28	36	10	123
TTQM0820	8mm	20mm	11mm	22mm	16mm	3mm	28	40	10	123
TTQM0920	9mm	20mm	11mm	22mm	16mm	3mm	28	47	10	123
TTQM1023	10mm	23mm	13mm	26mm	19mm	5mm	44	68	14	123
TTQM1123	11mm	23mm	13mm	26mm	19mm	5mm	44	75	14	123
TTQM1223	12mm	23mm	13mm	26mm	19mm	5mm	44	81	14	123
TTQM1426	14mm	26mm	16mm	29mm	22mm	5mm	66	123	18	113
TTQM1526	15mm	26mm	16mm	29mm	22mm	5mm	66	132	18	113
TTQM1626	16mm	26mm	16mm	29mm	22mm	5mm	66	140	18	113

NOTE: The data in the M_t Th and P_h is for a steel unit. To obtain data for other materials, use the multiplier provided below.

Multipliers:
Steel - 1.0
Electroless Nickel Plated Steel - 0.8
Thin Dense Chrome Coated Steel - 1.0
Stainless Steel - 0.35
When installing Trantorque Mini with an open-ended wrench, a reduction in installation torque by 50% is recommended. This will result in a Transmitted Torque (Mt) reduced by 50%.
