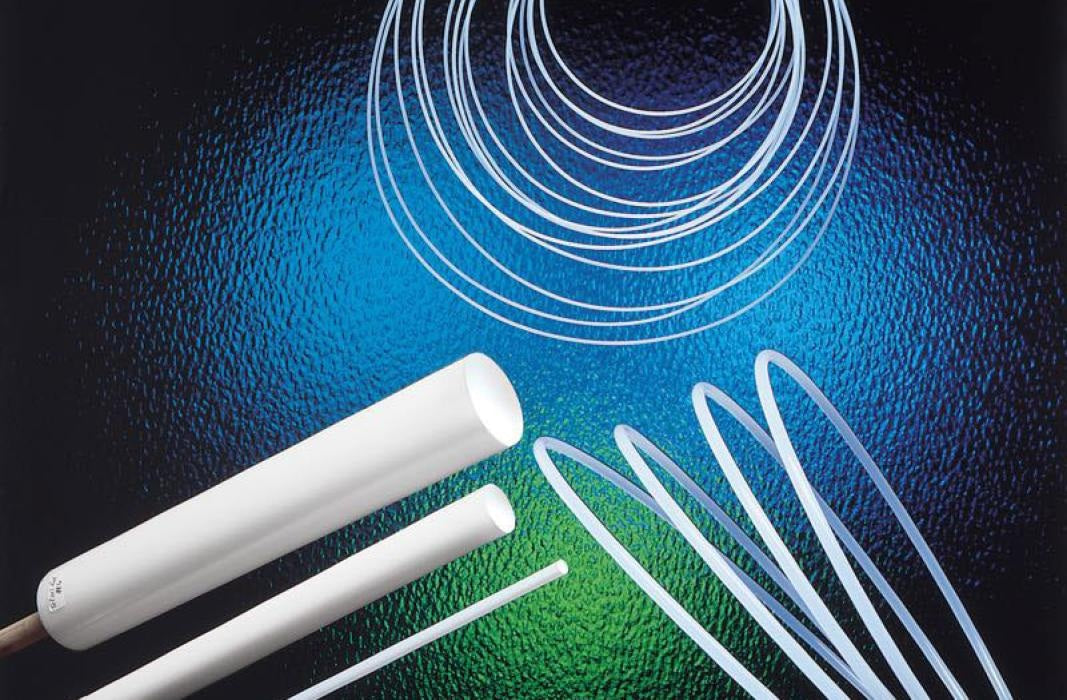

TSTZ83-0375-048-50 Versilon™ by Saint Gobain | ETFE Series | Radiation-Resistant Tubing | .278" ID x 3/8" OD x .048" Wall | Roll of 50 Feet
Saint Gobain
Versilon® ETFE | Radiation-Resistant Tubing
Versilon® ETFE tubing can be used to manufacture valves, fittings, bearings, pump components, and electrical coatings.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $314.90 |
| 15–29 | $284.75 |
| 30+ | $268.00 |
Versilon® ETFE | Radiation-Resistant Tubing
Versilon® ETFE flexible tubing from Saint-Gobain offers improved mechanical properties over fluoropolymers such as FEP and PFA, and is resistant to radiation, abrasion, and impact. The material is weather-resistant, inert to most solvents and chemicals, and has a continuous service temperature of 300°F (148°C). Made from materials that meet ASTM standard D3159, Versilon® ETFE tubing can be used to manufacture valves, fittings, bearings, pump components, and electrical coatings.
1
What is this product used for?
- Bearings
- Electrical coatings
- Fittings
- Pump components
- Valves
2
What are the key specifications?
N/A
N/A
None
White/Opaque
300°F (150°C)
-150°F (-66°C)
Materials meet ASTM standard D3159.
Not intended as an implant material!
3
What are the main product features?
- Mechanical strength.
- Abrasion resistant.
- Broad temperature range.
- Good chemical resistance.
- Continuous service temperature 300°F (148°C).
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
|---|---|---|---|
| TSTZ83-0062-021-50 | 0.020" | 1/16" | 0.021" |
| TSTZ83-0062-021.10 | 0.020" | 1/16" | 0.021" |
| TSTZ83-0062-023-50 | 0.016" | 1/16" | 0.023" |
| TSTZ83-0062-023.10 | 0.016" | 1/16" | 0.023" |
| TSTZ83-0125-016-50 | 3/32" | 1/8" | 0.016" |
| TSTZ83-0125-016.10 | 3/32" | 1/8" | 0.016" |
| TSTZ83-0125-031-50 | 1/16" | 1/8" | 0.031" |
| TSTZ83-0125-031.10 | 1/16" | 1/8" | 0.031" |
| TSTZ83-0250-031-50 | 3/16" | 1/4" | 1/32" |
| TSTZ83-0250-031.10 | 3/16" | 1/4" | 1/32" |
| TSTZ83-0250-062-50 | 1/8" | 1/4" | 1/16" |
| TSTZ83-0250-062.10 | 1/8" | 1/4" | 1/16" |
| TSTZ83-0312-040-50 | 0.232" | 5/16" | 0.040" |
| TSTZ83-0312-040.10 | 0.232" | 5/16" | 0.040" |
| TSTZ83-0375-048-50 | 0.278" | 3/8" | 0.048" |
| TSTZ83-0375-048.10 | 0.278" | 3/8" | 0.048" |
| TSTZ83-0500-062-50 | 3/8" | 1/2" | 1/16" |
| TSTZ83-0500-062.10 | 3/8" | 1/2" | 1/16" |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® ETFE Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
