TSTZ83-0312-040.10 Versilon™ by Saint Gobain | ETFE Series | Radiation-Resistant Tubing | .232" ID x 5/16" OD x .040" Wall | Roll of 100 Feet
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.

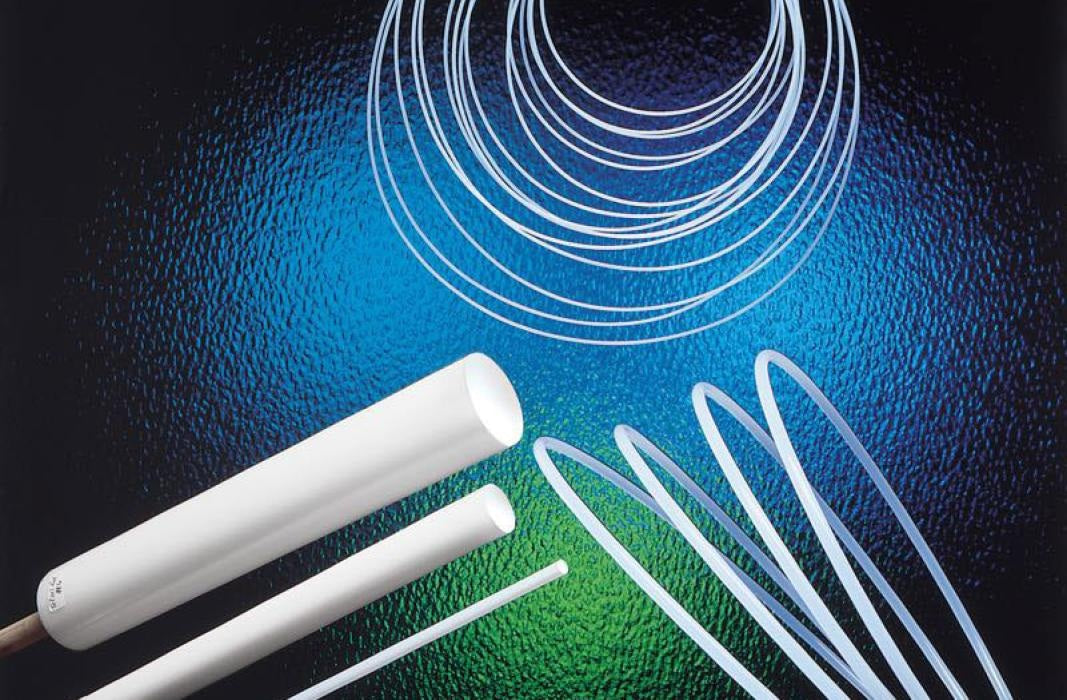

Versilon® ETFE | Radiation-Resistant Tubing
Versilon® ETFE flexible tubing from Saint-Gobain offers improved mechanical properties over fluoropolymers such as FEP and PFA, and is resistant to radiation, abrasion, and impact. The material is weather-resistant, inert to most solvents and chemicals, and has a continuous service temperature of 300°F (148°C). Made from materials that meet ASTM standard D3159, Versilon® ETFE tubing can be used to manufacture valves, fittings, bearings, pump components, and electrical coatings.
1
What is this product used for?
- Bearings
- Electrical coatings
- Fittings
- Pump components
- Valves
2
What are the key specifications?
N/A
N/A
None
White/Opaque
300°F (150°C)
-150°F (-66°C)
Materials meet ASTM standard D3159.
Not intended as an implant material!
3
What are the main product features?
- Mechanical strength.
- Abrasion resistant.
- Broad temperature range.
- Good chemical resistance.
- Continuous service temperature 300°F (148°C).
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
|---|---|---|---|
| TSTZ83-0062-021-50 | 0.020" | 1/16" | 0.021" |
| TSTZ83-0062-021.10 | 0.020" | 1/16" | 0.021" |
| TSTZ83-0062-023-50 | 0.016" | 1/16" | 0.023" |
| TSTZ83-0062-023.10 | 0.016" | 1/16" | 0.023" |
| TSTZ83-0125-016-50 | 3/32" | 1/8" | 0.016" |
| TSTZ83-0125-016.10 | 3/32" | 1/8" | 0.016" |
| TSTZ83-0125-031-50 | 1/16" | 1/8" | 0.031" |
| TSTZ83-0125-031.10 | 1/16" | 1/8" | 0.031" |
| TSTZ83-0250-031-50 | 3/16" | 1/4" | 1/32" |
| TSTZ83-0250-031.10 | 3/16" | 1/4" | 1/32" |
| TSTZ83-0250-062-50 | 1/8" | 1/4" | 1/16" |
| TSTZ83-0250-062.10 | 1/8" | 1/4" | 1/16" |
| TSTZ83-0312-040-50 | 0.232" | 5/16" | 0.040" |
| TSTZ83-0312-040.10 | 0.232" | 5/16" | 0.040" |
| TSTZ83-0375-048-50 | 0.278" | 3/8" | 0.048" |
| TSTZ83-0375-048.10 | 0.278" | 3/8" | 0.048" |
| TSTZ83-0500-062-50 | 3/8" | 1/2" | 1/16" |
| TSTZ83-0500-062.10 | 3/8" | 1/2" | 1/16" |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® ETFE Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
