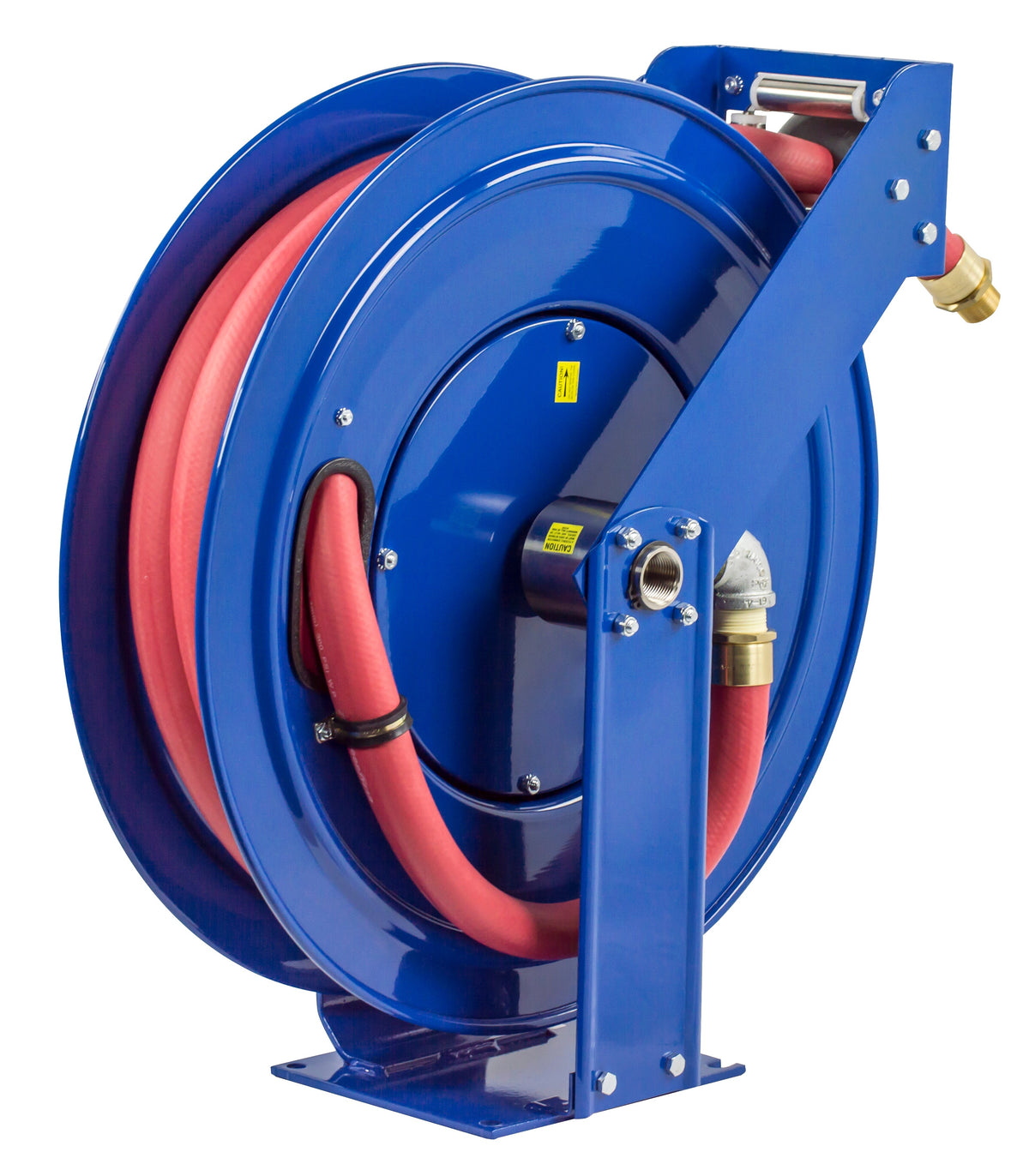

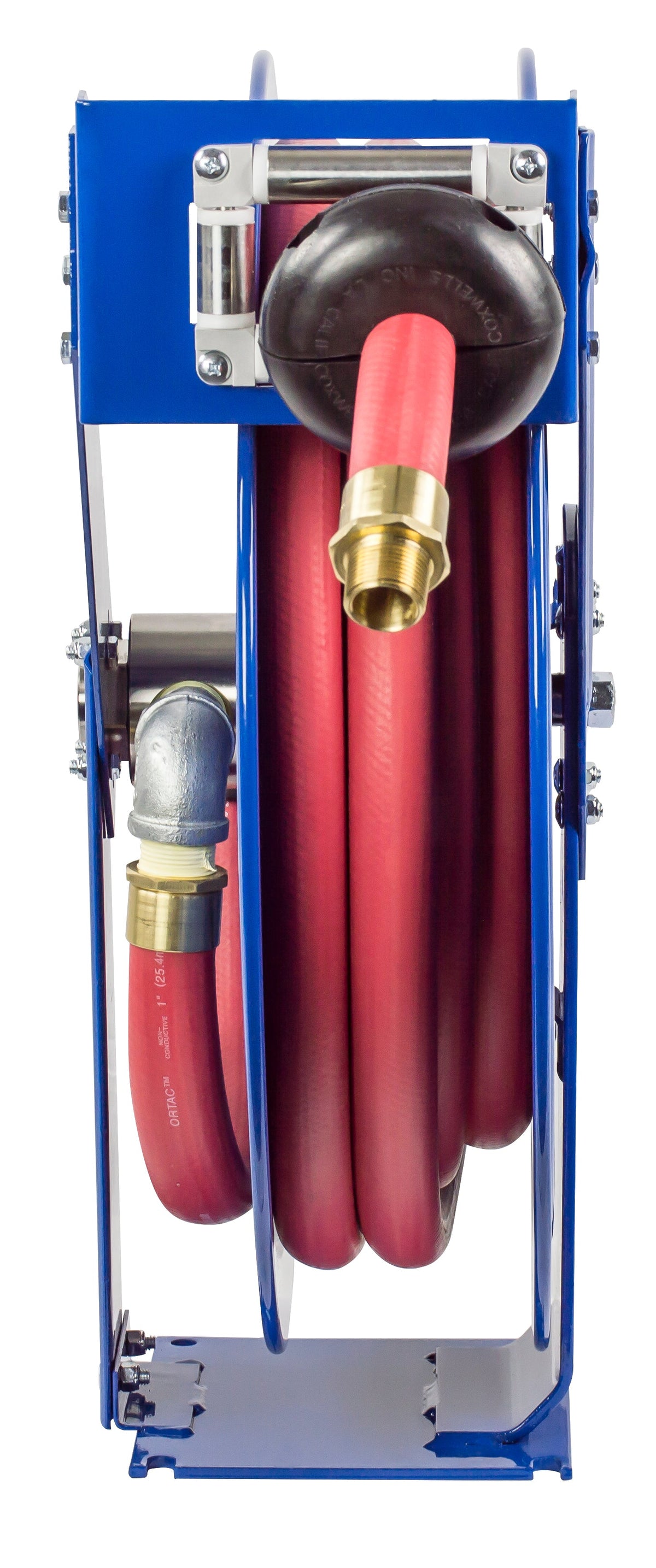

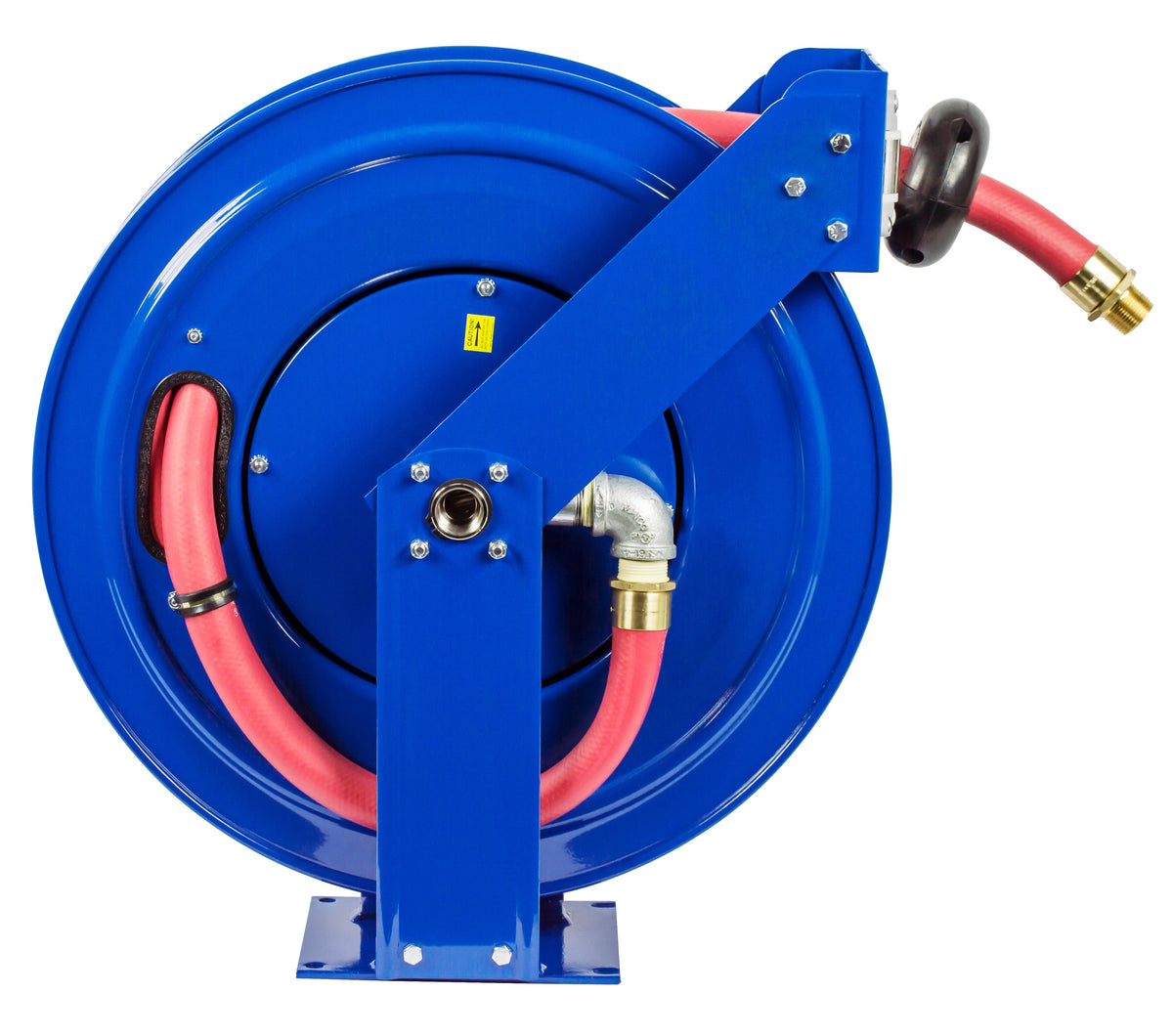

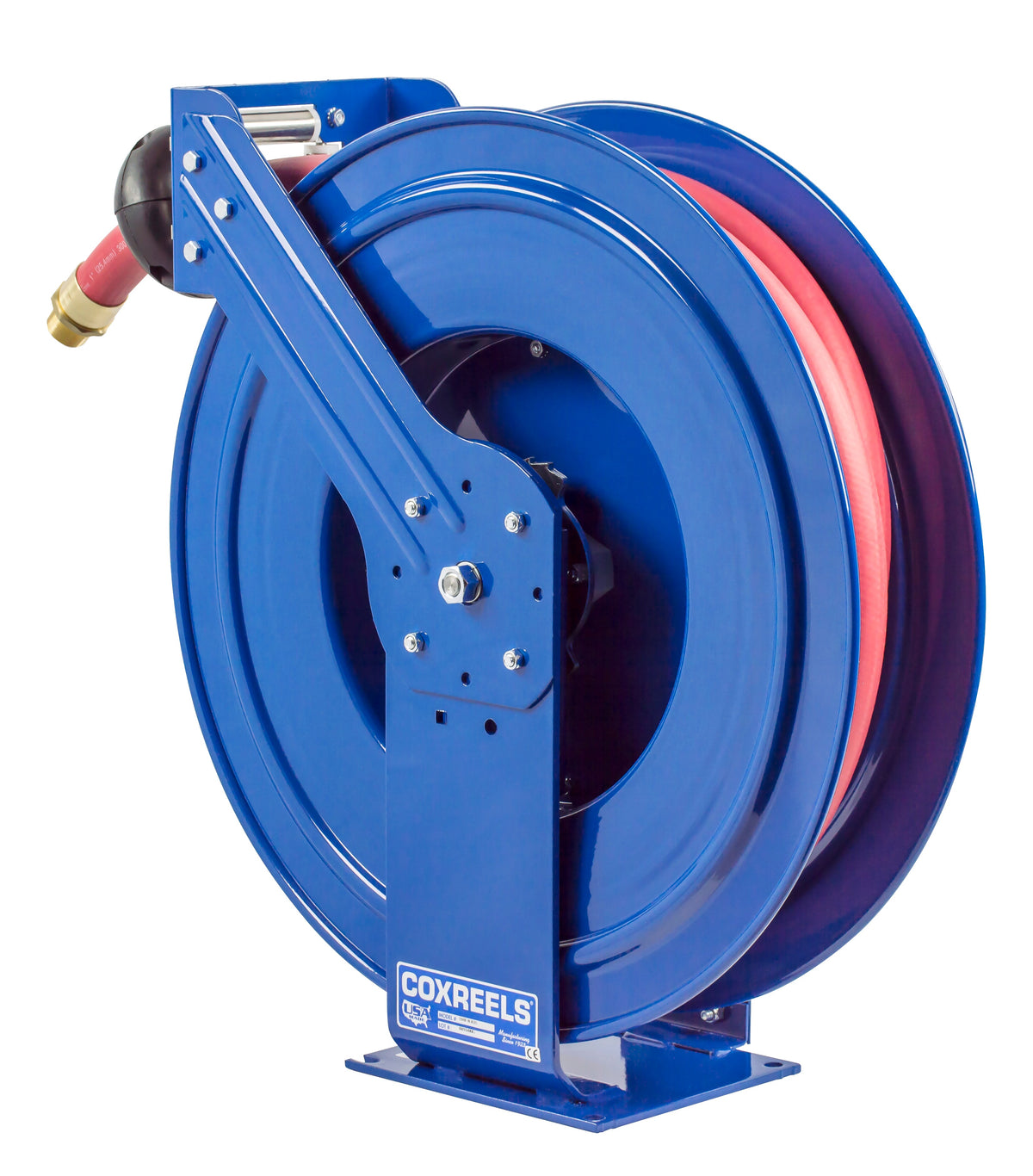

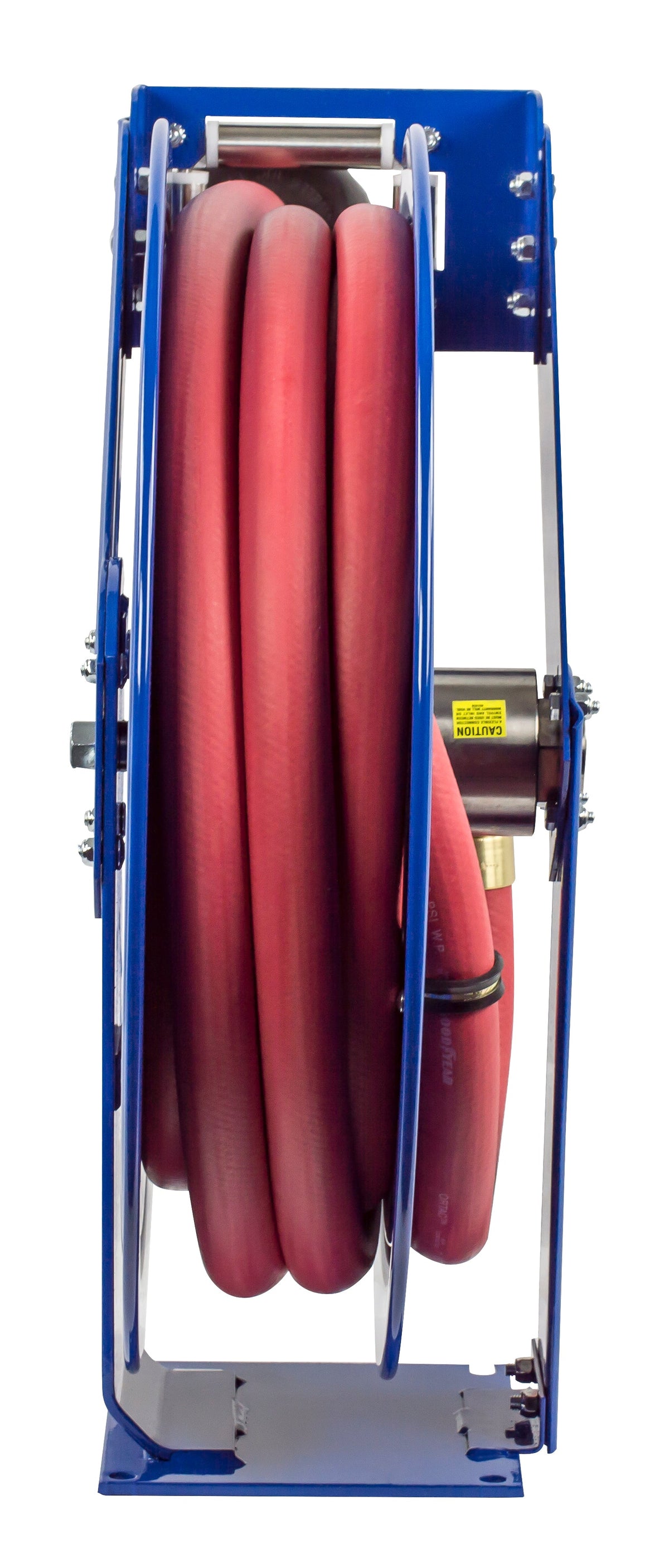

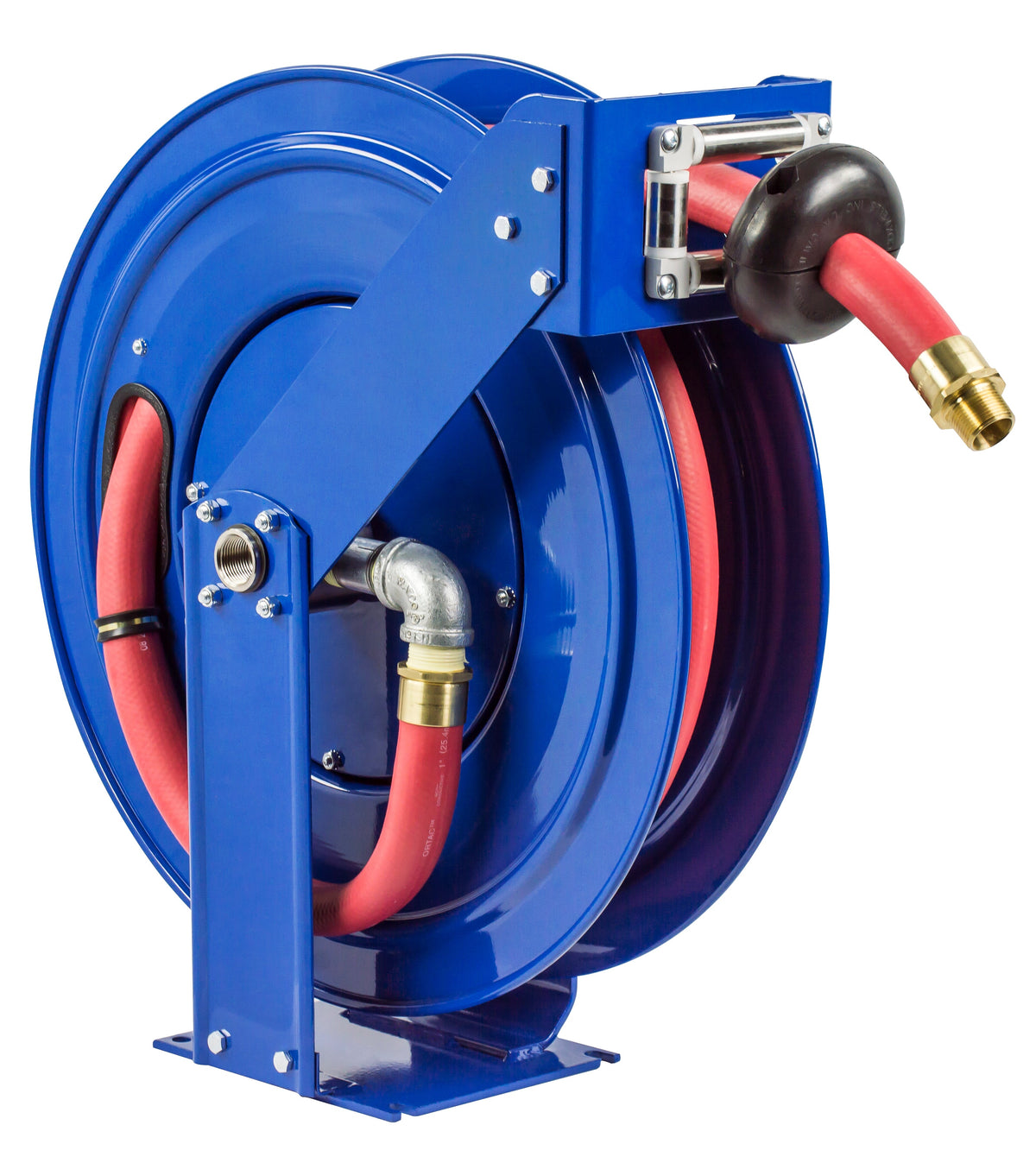

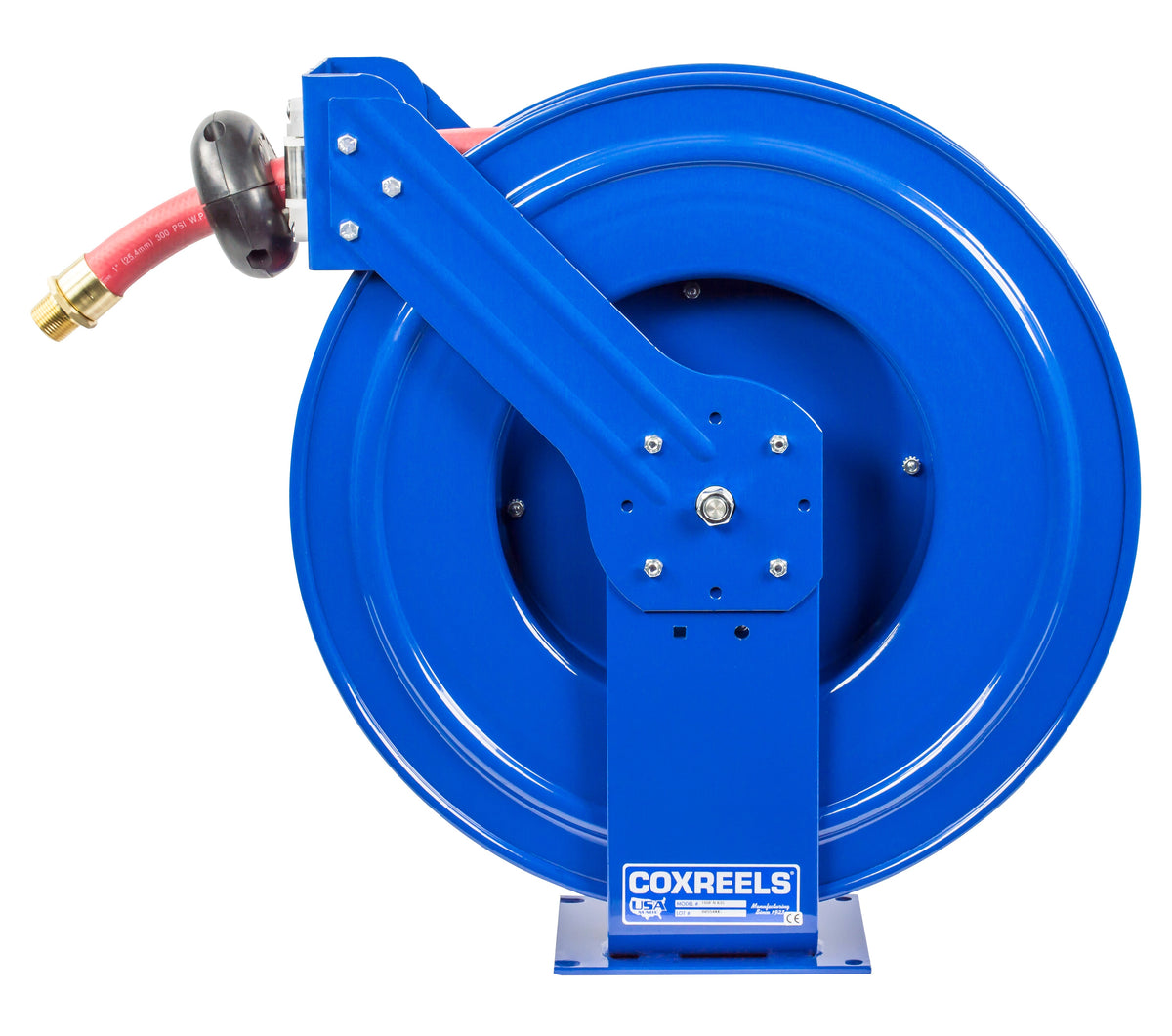

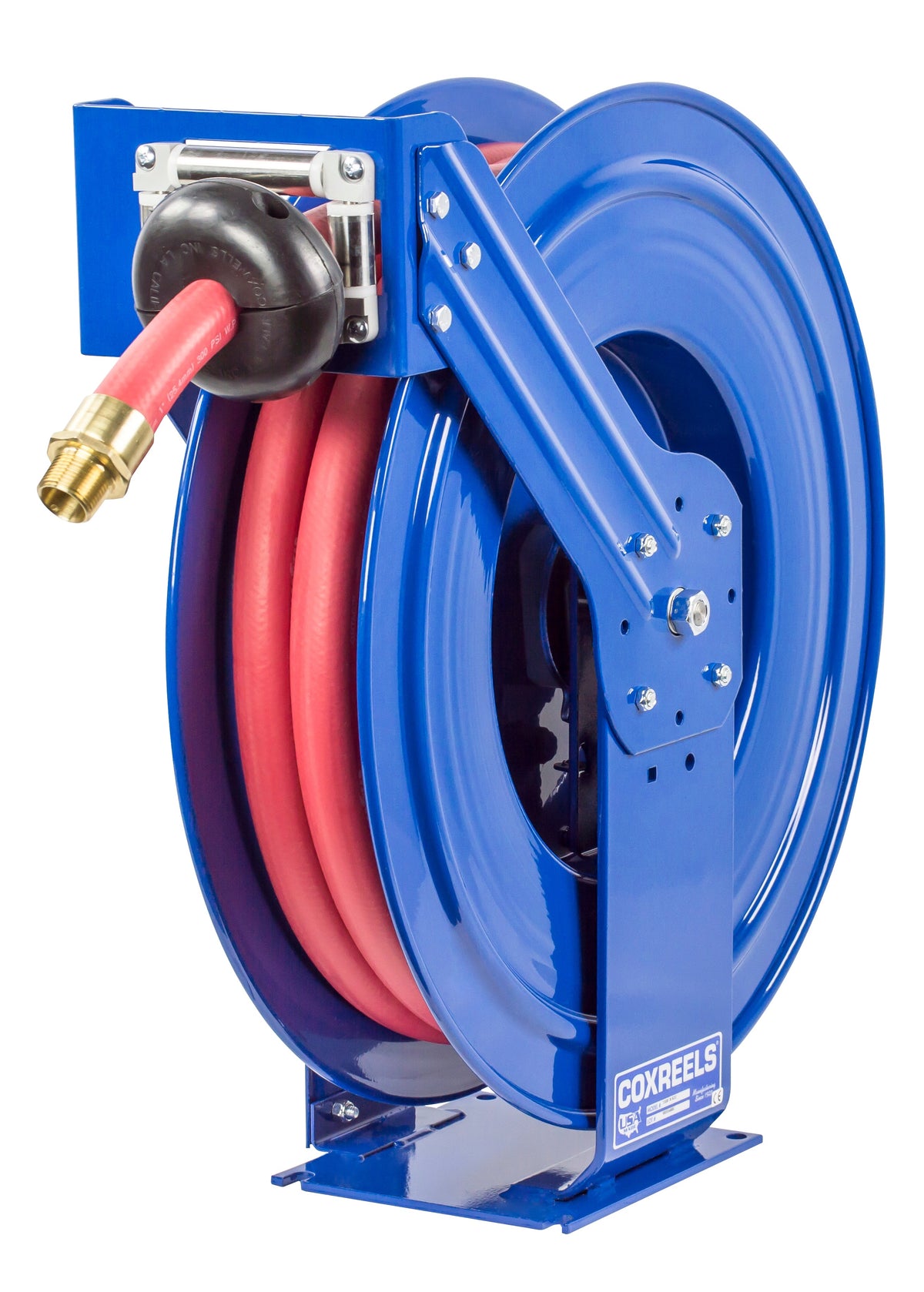

TSHF-N-635 by Coxreels | T-Fuel Series | 300 PSI Spring Driven Hose Reel for Fuel | 1" Hose ID, 1" FNPT Inlet x 1" MNPT Hose End | Steel | 35ft Nitrile Rubber Hose Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring driven hose reel
Coxreels T-Fuel Series Spring Driven Hose Reels
Steel dual-pedestal spring driven hose reels for fuel delivery, rated to 300 PSI. Made in the U.S.A.
1
What is this product used for?
- Fuel Delivery
2
What are the key specifications?
Construction
Steel, dual-pedestal
Swivel
Nitrile seals
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
190°F
Bearings
1" Permanently Lubricated Precision Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Ceiling, Bench and Vehicles
Mounting Holes
Ø0.5"
3
What are the main product features?
- Swivel — 90° full-flow NPT swivel for fuel dispensing applications.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™ triple axle support system.
- Multi-Position Guide Arm — Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| Included | |||||
| TSHL-N-650-BXN | 1" | 50 ft | 300 | 6" | 12 × 25.5 × 24 |
| Less hose | |||||
| TSHFL-N-535 | 3/4" | 35 ft | 300 | 4.5" | 9.375 × 25.5 × 24 |
| TSHFL-N-550 | 3/4" | 50 ft | 300 | 4.5" | 9.375 × 25.5 × 24 |
| TSHL-N-575-BXN | 3/4" | 75 ft | 300 | 6" | 12 × 25.5 × 24 |
| TSHL-N-635-BXN | 1" | 35 ft | 300 | 4.5" | 10 × 25.5 × 24 |
| Nitrile Synthetic Rubber, RMA Class A | |||||
| TSHF-N-535 | 3/4" | 35 ft | 300 | 4.5" | 9.375 × 25.5 × 24 |
| TSHF-N-550 | 3/4" | 50 ft | 300 | 4.5" | 9.375 × 25.5 × 24 |
| TSHF-N-575 | 3/4" | 75 ft | 300 | 6" | 12 × 25.5 × 24 |
| TSHF-N-635 | 1" | 35 ft | 300 | 4.5" | 10 × 25.5 × 24 |
| TSHF-N-650 | 1" | 50 ft | 300 | 6" | 12 × 25.5 × 24 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model | ||
| 15724 | EZ-Up "I" or "H" Beam Adapter | |
| 15723 | EZ-Up Bracket | |
| MRT-1 | Overhead Mounting Bracket | |
| 15725 | Swing Bracket | |
| 15721 | Swivel Bracket | |
| Inlet connections — fit hose I.D. 3/4" | ||
| 5155-1.5 | 18" inlet hose | |
| 385 | 90° inlet elbow (brass) | |
| Hose end | ||
| 430 | Hose/cord stop | Hose I.D. 3/4" |
| 20214 | Hose/cord stop | Hose I.D. 1" |
| 398-1 | Spiral hose/cord guard | Hose I.D. 3/4" |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BWX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXB | Bend Restrictor |
| -BXC | Constant Tension |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
