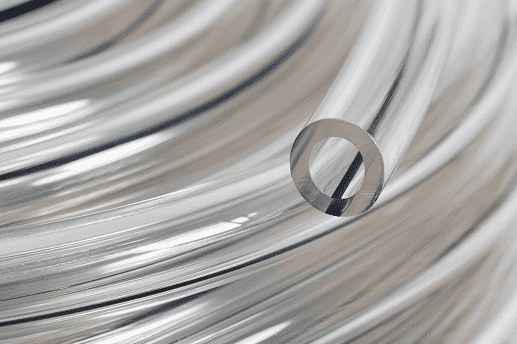

ACR02916 Transflow Tygon S3™ by Saint Gobain | 1/4" ID x 1/2" OD x 1/8" Wall | Twin Tube A24 Clear Vacuum Air Tubing | 100' Package Length
Minimum Order Quantity: 40 Units
Saint Gobain - Transflow Tygon S3® Single & Twin Tube A24 Clear Vacuum (Air) Tubing
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $256.22 |
| 30–59 | $231.68 |
| 60+ | $204.43 |
Product Data:
60
SPECIFICATIONS
| Application: | Supply Air Transport | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | N/A |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -32 deg. F (-36 deg. C) - 165 deg. F (74 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | FDA, 3-A |
| Literature: | Transflow S3® Single & Twin Tube A24 Clear Vacuum (Air) Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Min. Bend Radius (in.) | Max. Working Pressure at 73 deg. F (PSI)* | Vacuum Rating at 73 deg. F (in. Hg) | Length |
|---|---|---|---|---|---|---|---|
| ACR02019 | 1/4" | 1/2" | 1/8" | 5/8" | 60 PSI | 29.9 in. Hg | 100ft |
| ACR02021 | 9/32" | 17/32" | 1/8" | 3/4" | 55 PSI | 29.9 in. Hg | 100ft |
| ACR02029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 44 PSI | 29.9 in. Hg | 100ft |
| ACR02034 | 7/16" | 11/16" | 1/8" | 1-3/8" | 39 PSI | 29.9 in. Hg | 100ft |
| ACR02038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 34 PSI | 26.0 in. Hg | 100ft |
| Twin Tube | |||||||
| ACR02916 | 1/4" | 1/2" | 1/8" | 5/8" | 60 PSI | 29.9 in. Hg | 100ft |
| ACR02917 | 9/32" | 17/32" | 1/8" | 3/4" | 55 PSI | 29.9 in. Hg | 100ft |
| ACR02918 | 3/8" | 5/8" | 1/8" | 1-1/8" | 44 PSI | 29.9 in. Hg | 100ft |
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
