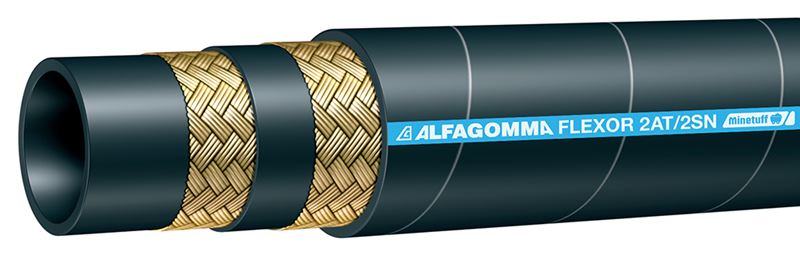

TR2MT-16 Alfagomma by Kuriyama | TR2MT Series | SAE 100 R2AT/R2S | Minetuff Hydraulic Hose | 2-Wire Braid | 1" ID | 1.44" OD | 2400 PSI
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | Medium pressure service with high temperature petroleum-based hydraulic fluids, hot oil, grease, lubricants and crude oils, air and water. For air or gas application above 250 PSI (1.7 Mpa) the cover should be pin-pricked. | SAE Rating: | SAE 100 R2AT/R2S |
|---|---|---|---|
| Other Ratings: | ISO 1436-1 EN 853 2SN MSHA IC-152/16 Approved Flame Resistance |
Tube: | Seamless synthetic rubber, black, oil-resistant. |
| Reinforcement: | High tensile steel wire braid | Cover: | Synthetic rubber, black, weather, oil, fuel, ozone and abrasion-resistant |
| Service Temperature Range: | -40°F (-40°C) to +212°F (+100°C) constant operation | Air Maximum Temperature: | +160°F (+70°C) Note: Operating temperatures in excess of +212°F (+100°C) may materially reduce the life of the hose. |
| Branding: | ALFAGOMMA FLEXOR 2SN ID ...WP ...MPa (...PSI) - SAE 100R2AT - EN 853 2SN DN ... MSHA IC-152/16 - Q/YR | ||
| Other Features: | |||
|
|||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| TR2MT-04 | 1/4" | 6mm | 0.57" | 14.5mm | 5800 PSI | 4.0" | 100mm | 0.22 lbs/ft |
| TR2MT-05 | 5/16" | 8mm | 0.63" | 16.1mm | 5000 PSI | 4.6" | 115mm | 0.23 lbs/ft |
| TR2MT-06 | 3/8" | 9.5mm | 0.72" | 18.2mm | 4800 PSI | 4.9" | 124.5mm | 0.32 lbs/ft |
| TR2MT-08 | 1/2" | 12.7mm | 0.84" | 21.3mm | 4000 PSI | 6.8" | 172.7mm | 0.36 lbs/ft |
| TR2MT-10 | 5/8" | 15.9mm | 0.96" | 24.5mm | 3630 PSI | 7.8" | 198.1mm | 0.45 lbs/ft |
| TR2MT-12 | 3/4" | 19.1mm | 1.13" | 28.6mm | 3120 PSI | 9.4" | 238.8mm | 0.58 lbs/ft |
| TR2MT-16 | 1" | 25.4mm | 1.44" | 36.6mm | 2400 PSI | 11.8" | 299.7mm | 0.83 lbs/ft |
| TR2MT-20 | 1-1/4" | 31.8mm | 1.81" | 46.0mm | 1820 PSI | 16.5" | 419.1mm | 1.19 lbs/ft |
| TR2MT-24 | 1-1/2" | 38.1mm | 2.08" | 52.8mm | 1310 PSI | 19.6" | 497.8mm | 1.37 lbs/ft |
| TR2MT-32 | 2" | 50.8mm | 2.58" | 65.6mm | 1200 PSI | 24.8" | 629.9mm | 1.86 lbs/ft |
* Minimum burst pressure 4-to-1 safety factor.
