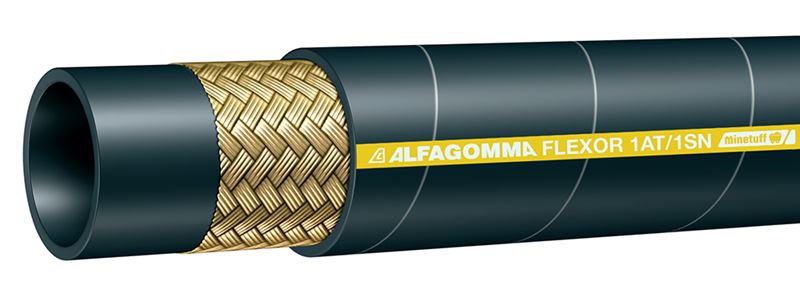

TR1MT-12 Alfagomma by Kuriyama | TR1MT Series | SAE 100 R1AT/R1S | Minetuff Hydraulic Hose | 1-Wire Braid | 3/4" ID | 1.06" OD | 1530 PSI
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | Medium pressure service with high temperature petroleum-based hydraulic fluids, hot oil, grease, lubricants and crude oils, air and water. For air or gas application above 250 psi (1.7 Mpa) the cover should be pin-pricked. | SAE Rating: | SAE 100 R1AT/R1S |
|---|---|---|---|
| Other Ratings: | ISO 1436-1 EN 853 1SN MSHA IC-152/16 Approved Flame Resistance |
Tube: | Seamless synthetic rubber, black, oil-resistant. |
| Reinforcement: | High tensile steel wire braid | Cover: | Synthetic rubber, black, weather, oil, fuel, ozone and abrasion-resistant |
| Service Temperature Range: | -40°F (-40°C) to +212°F (+100°C) constant operation | Air Maximum Temperature: | +160°F (+70°C) Note: Operating temperatures in excess of +212°F (+100°C) may materially reduce the life of the hose. |
| Branding: | ALFAGOMMA FLEXOR 1SN ID ...WP ...MPa (...PSI) - SAE 100 R1AT - EN 853 1SN MSHA IC-152/16...Q/YR DN ... | ||
| Other Features: | |||
|
|||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| TR1MT-03 | 3/16" | 4.8mm | 0.44" | 11.2mm | 3630 PSI | 3.6" | 090.0mm | 0.10 lbs/ft |
| TR1MT-04 | 1/4" | 6.4mm | 0.50" | 12.7mm | 3250 PSI | 3.9" | 099.1mm | 0.13 lbs/ft |
| TR1MT-05 | 5/16" | 7.9mm | 0.56" | 14.2mm | 3120 PSI | 4.5" | 114.3mm | 0.16 lbs/ft |
| TR1MT-06 | 3/8" | 9.5mm | 0.65" | 16.5mm | 2610 PSI | 5.1" | 129.5mm | 0.20 lbs/ft |
| TR1MT-08 | 1/2" | 12.7mm | 0.78" | 19.9mm | 2320 PSI | 7.1" | 180.3mm | 0.26 lbs/ft |
| TR1MT-10 | 5/8" | 15.9mm | 0.91" | 23.0mm | 1900 PSI | 7.9" | 200.7mm | 0.29 lbs/ft |
| TR1MT-12 | 3/4" | 19.1mm | 1.06" | 27.0mm | 1530 PSI | 9.5" | 241.3mm | 0.37 lbs/ft |
| TR1MT-16 | 1" | 25.4mm | 1.38" | 35.0mm | 1280 PSI | 11.8" | 299.7mm | 0.59 lbs/ft |
| TR1MT-20 | 1-1/4" | 31.8mm | 1.66" | 42.1mm | 920 PSI | 16.5" | 419.1mm | 0.71 lbs/ft |
| TR1MT-24 | 1-1/2" | 38.1mm | 1.94" | 49.2mm | 730 PSI | 19.7" | 500.4mm | 0.90 lbs/ft |
| TR1MT-32 | 2" | 50.8mm | 2.46" | 62.4mm | 600 PSI | 24.8" | 629.9mm | 1.24 lbs/ft |
* Minimum burst pressure 4-to-1 safety factor.
