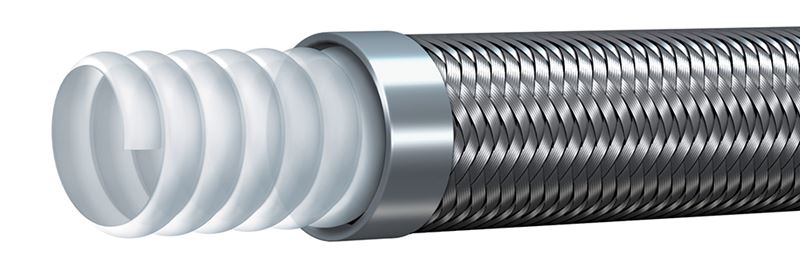

TR14C-16 Alfagomma by Kuriyama | TR14C Series | SAE 100R14 | High Temp Convoluted Stainless Steel Braided Hose | 1" ID | 1.29" OD | 670 PSI
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | Compressed air, gas, steam, fuel, oil, chemical and pharmaceutical products, particularly suitable for steam piping on injection moulding machines, diathermic oil installations, charging lines for cryogenic gas, compressor discharge lines, automotive, pharmaceutical and food sectors. Solvents, pigments and paint transfer lines. Hydraulic lines in power steering marine applications. Not suitable for molten alkali metals and halogens at high temperature. | SAE Rating: | SAE 100R14 |
|---|---|---|---|
| Other Ratings: | AISI 304 FDA US Pharmacopeia - Class VI |
Tube: | Seamless Helical Convoluted PTFE - high mechanical and vibration resistance, low permeability, dielectrical, fire resistant, food grade (FDA, DVGW, BFR compliant). Chemically inert, non-sticking, ozone and weather resistant. |
| Reinforcement: | High tensile stainless steel braid AISI 304. | Cover: | High Tensile Stainless Steel Braid. |
| Service Temperature Range: | -76°F (-60°C) to +500°F (+260°C) constant operation | Air Maximum Temperature: | - |
| Branding: | N/A | ||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| TR14C-06 | 3/8" | 9.5mm | 0.62" | 14.7mm | 2000 PSI | 0.79" | 20mm | 0.16 lbs/ft |
| TR14C-08 | 1/2" | 12.7mm | 0.74" | 18.8mm | 1500 PSI | 0.98" | 25mm | 0.19 lbs/ft |
| TR14C-10 | 5/8" | 15.9mm | 0.87" | 22.1mm | 1200 PSI | 2.00" | 51mm | 0.22 lbs/ft |
| TR14C-12 | 3/4" | 19.1mm | 0.97" | 24.6mm | 1000 PSI | 2.52" | 64mm | 0.27 lbs/ft |
| TR14C-16 | 1" | 25.4mm | 1.29" | 32.8mm | 670 PSI | 3.50" | 89mm | 0.37 lbs/ft |
| TR14C-20 | 1-1/4" | 31.8mm | 1.60" | 40.7mm | 525 PSI | 5.00" | 127mm | 0.46 lbs/ft |
| TR14C-24 | 1-1/2" | 38.1mm | 1.90" | 48.2mm | 450 PSI | 5.98" | 152mm | 0.60 lbs/ft |
| TR14C-32 | 2" | 50.8mm | 2.42" | 61.5mm | 345 PSI | 7.87" | 200mm | 0.84 lbs/ft |
* Minimum burst pressure 4-to-1 safety factor.
