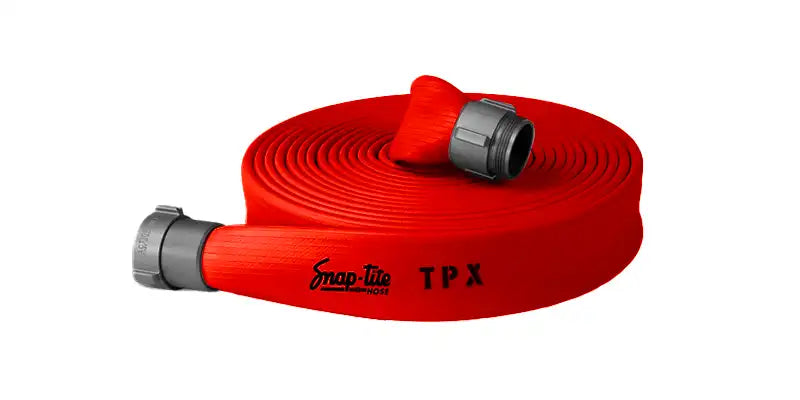

TPX30X25R25N by Snap-Tite | TPX Series | 3-Ply Fire Hose Assembly with Nitrile Liner | 3" Hose I.D. | 2-1/2" Male NH x 2-1/2" Female NH Couplings | 300 PSI | Red | 25ft Length

TPX30X25R25N by Snap-Tite | TPX Series | 3-Ply Fire Hose Assembly with Nitrile Liner | 3" Hose I.D. | 2-1/2" Male NH x 2-1/2" Female NH Couplings | 300 PSI | Red | 25ft Length

Sale price$478.47

Snap-Tite Hose
TPX™ - UNIQUE 3-PLY CONSTRUCTION

This hose may take 1-2 weeks to ship.

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
5–14 $449.76
15–29 $406.70
30+ $358.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • TPX Series
Color(s):
  • Red
Internal Diameter:
  • 3in
Model: TPX™
Basic Construction: 3-ply nitrile rubber cover/liner with polyester inner jacket.
Application: Attack, Supply, Soft Suction
Colors: Yellow, Red, Orange, Black
Temperature Range: -40 ° F - 200 ° F
Description:
Traditionally, manufactured extruded hose can vary in thickness, becoming bulky and heavy. TPX™ utilizes a 3-ply design where the ribbed cover and smooth nitrile liner are extruded independently. The cover is inserted inside the tight-weave reinforcement, vulcanized, and turned inside out. The liner is then inserted and the hose is vulcanized for a second time to form a bond of all three plies, guaranteeing a consistent, compact hose wall. The Snap-tite TPX™ is highly resistant to both conductive and radiant heat.
Features:
  • 3-ply rubber fire hose with both the cover and liner made of heavy duty nitrile rubber, high tensile strength tightly woven polyester reinforcement for maximum durability and flexibility
  • Smooth liner keeps friction loss to a minimum.
  • Nitrile rubber cover greatly increases abrasion resistance, provides long service life and the tightly woven reinforcement resists puncture.
  • Suitable for attack and soft sleeve suction applications.
  • Remains flexible at temperatures as low as -40 °F (-40 °C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
  • Tighter weave allows more resistance to puncture while also being easier to pack and store.
  • Lays flat and needs less hose bed space than typical extruded hose.
  • Made in USA to ISO-9001:2015 certified quality assurance system.
================= YELLOW =================
Yellow
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" - - - Standard 300 psi 600 psi 1000 psi 0.32 12,500
- - - Brass Rocker Lugs
2-1/2" - - - Standard 330 psi 660 psi 1000 psi 0.62 14,000
- - - Brass Rocker Lugs
3" TPX30X25Y25N TPX30X50Y25N TPX30X100Y25N Standard 300 psi 600 psi 900 psi 0.68 14,000
4" TPX40X25Y40S TPX40X50Y40S TPX40X100Y40S Standard 250 psi 500 psi 750 psi 0.80 13,000
5" TPX50X25Y50S TPX50X50Y50S TPX50X100Y50S Standard 225 psi 450 psi 675 psi 1.12 56,520
6" TPX60X25Y60S TPX60X50Y60S TPX60X100Y60S Standard 200 psi 400 psi 600 psi 1.24 13,500
8" TPX80X25Y80S TPX80X50Y80S TPX80X100Y80S Standard 125 psi 250 psi 400 psi - Available upon Request
Red
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" - - - Standard 300 psi 600 psi 1000 psi 0.32 12,500
- - - Brass Rocker Lugs
2-1/2" - - - Standard 330 psi 660 psi 1000 psi 0.62 14,000
- - - Brass Rocker Lugs
3" TPX30X25R25N TPX30X50R25N TPX30X100R25N Standard 300 psi 600 psi 900 psi 0.68 14,000
4" TPX40X25R40S TPX40X50R40S TPX40X100R40S Standard 250 psi 500 psi 750 psi 0.80 13,000
5" TPX50X25R50S TPX50X50R50S TPX50X100R50S Standard 225 psi 450 psi 675 psi 1.12 56,520
6" TPX60X25R60S TPX60X50R60S TPX60X100R60S Standard 200 psi 400 psi 600 psi 1.24 13,500
8" TPX80X25R80S TPX80X50R80S TPX80X100R80S Standard 125 psi 250 psi 400 psi - Available upon Request
Orange
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" - - - Standard 300 psi 600 psi 1000 psi 0.32 12,500
- - - Brass Rocker Lugs
2-1/2" - - - Standard 330 psi 660 psi 1000 psi 0.62 14,000
- - - Brass Rocker Lugs
3" TPX30X25O25N TPX30X50O25N TPX30X100O25N Standard 300 psi 600 psi 900 psi 0.68 14,000
4" TPX40X25O40S TPX40X50O40S TPX40X100O40S Standard 250 psi 500 psi 750 psi 0.80 13,000
5" TPX50X25O50S TPX50X50O50S TPX50X100O50S Standard 225 psi 450 psi 675 psi 1.12 56,520
6" TPX60X25O60S TPX60X50O60S TPX60X100O60S Standard 200 psi 400 psi 600 psi 1.24 13,500
8" TPX80X25O80S TPX80X50O80S TPX80X100O80S Standard 125 psi 250 psi 400 psi - Available upon Request
Black
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" - - - Standard 300 psi 600 psi 1000 psi 0.32 12,500
- - - Brass Rocker Lugs
2-1/2" - - - Standard 330 psi 660 psi 1000 psi 0.62 14,000
- - - Brass Rocker Lugs
3" TPX30X25K25N TPX30X50K25N TPX30X100K25N Standard 300 psi 600 psi 900 psi 0.68 14,000
4" TPX40X25K40S TPX40X50K40S TPX40X100K40S Standard 250 psi 500 psi 750 psi 0.80 13,000
5" TPX50X25K50S TPX50X50K50S TPX50X100K50S Standard 225 psi 450 psi 675 psi 1.12 56,520
6" TPX60X25K60S TPX60X50K60S TPX60X100K60S Standard 200 psi 400 psi 600 psi 1.24 13,500
8" TPX80X25K80S TPX80X50K80S TPX80X100K80S Standard 125 psi 250 psi 400 psi - Available upon Request

*1-year warranty.

*4" and 5" are UL/ULC Certified.

*Potable water approved: No

*Quality Management System Certification: ISO 9001:2015 Registration # 11-R1045

Snap-Tite Hose

Snap-tite Hose is a premier American manufacturer of high-performance lay-flat and industrial hoses trusted across firefighting, municipal, agricultural, and industrial markets. With more than 55 years of engineering excellence and innovation, Snap-tite produces rugged, lightweight, and reliable hose solutions built to perform in the toughest conditions — from firegrounds to farms and heavy-duty industrial sites. Every hose is proudly made in the USA to strict quality standards, delivering durability and confidence to the professionals who depend on them.
