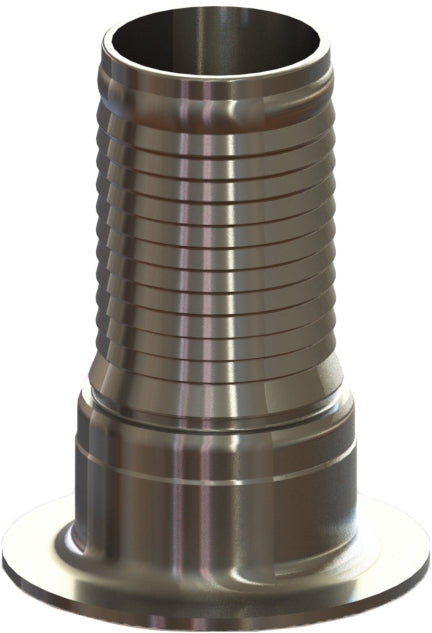

THASS-32C by Campbell Fittings | Flange Turnback | 8" Turnback x 8" Hose Barb | 316 Stainless Steel

THASS-32C by Campbell Fittings | Flange Turnback | 8" Turnback x 8" Hose Barb | 316 Stainless Steel

Sale price$2,130.24

by Campbell
Crimpnology Nipple:THASS Turnback (for use with 150lb. floating flange)
Buy More, Save More!
Quantity Price Each
4–7 $2,002.43
8–14 $1,917.22
15+ $1,704.19
Discounts applied in cart/checkout.

Product Data:

Series:
  • THASS Series
Shape:

Straight

Ends Configuration:
  • 8in Flange Stub
  • 8in Hose Barb
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible.
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
Recommended Hose Attachments:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
THASS-4C 1"
THASS-6C 1-1/2"
THASS-8C 2"
THASS-10C 2-1/2"
THASS-12C 3"
THASS-16C 4"
THASS-24C 6"
THASS-32C 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
