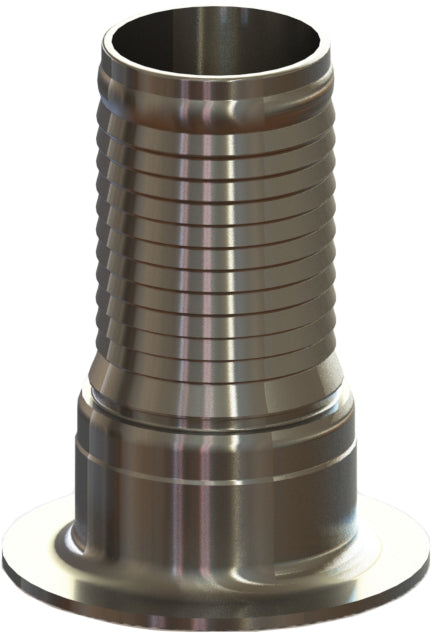

THAS-16C by Campbell Fittings | Flange Turnback | 4" Turnback x 4" Hose Barb | Steel

THAS-16C by Campbell Fittings | Flange Turnback | 4" Turnback x 4" Hose Barb | Steel

Sale price$182.47

by Campbell
Crimpnology Nipple:THAS Turnback (for use with 150lb. floating flange)
Buy More, Save More!
Quantity Price Each
5–19 $171.52
20–59 $155.10
60+ $136.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • THAS Series
Shape:

Straight

Ends Configuration:
  • 4in Flange Stub
  • 4in Hose Barb
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible.
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
Recommended Hose Attachments:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
THAS-6C 1-1/2"
THAS-8C 2"
THAS-10C 2-1/2"
THAS-12C 3"
THAS-16C 4"
THAS-24C 6"
THAS-32C 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
