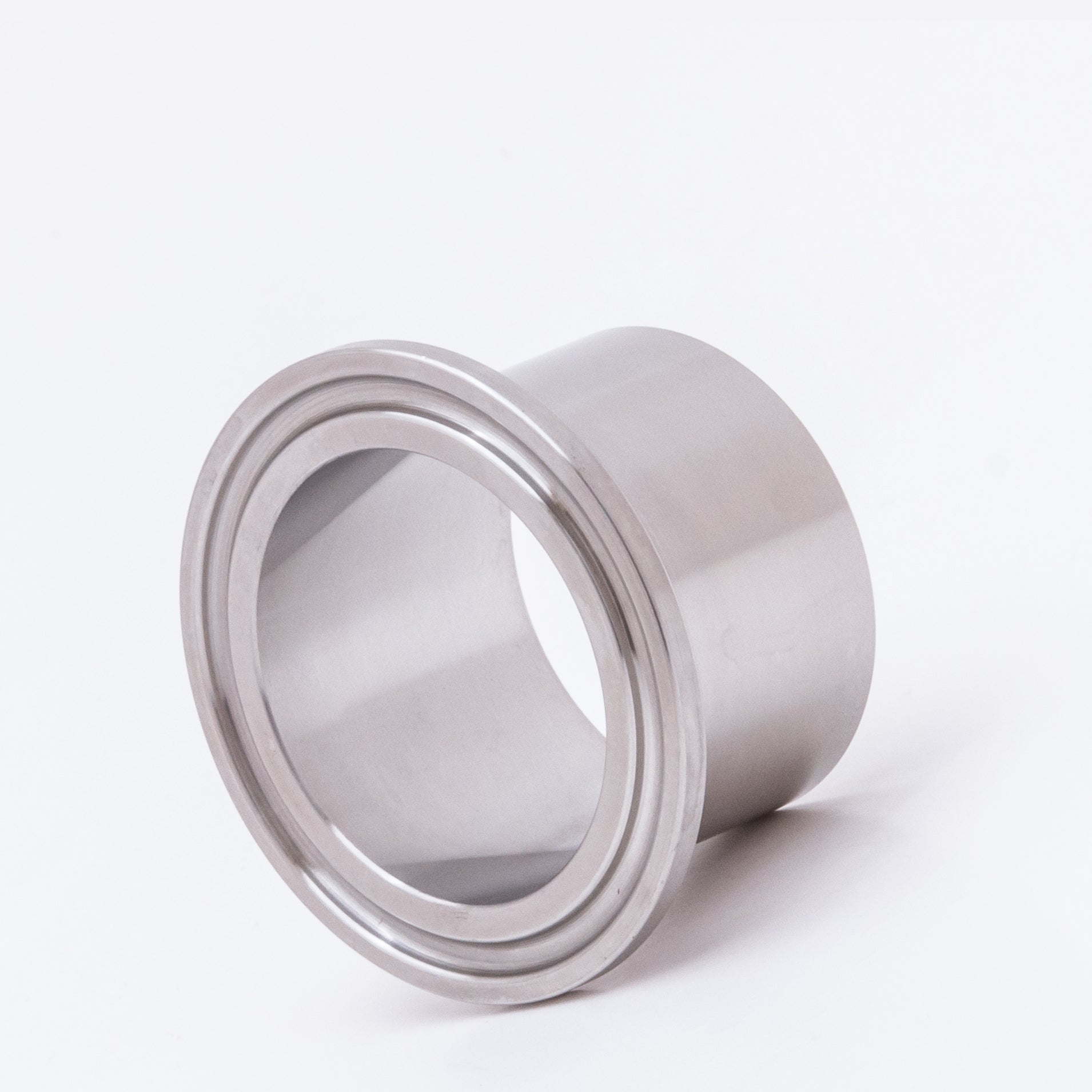

TCLW-4 316 by Campbell Fittings | 3A Fittings & Adapters | 1" Tri-Clamp x 1" Weld End | Long | Straight | 316 Stainless Steel

TCLW-4 316 by Campbell Fittings | 3A Fittings & Adapters | 1" Tri-Clamp x 1" Weld End | Long | Straight | 316 Stainless Steel

Sale price$11.96
Buy more, save moreDiscounts applied in cart/checkout.
Features and Benefits:
  • Campbell Crimpnology™ offers hose assembly systems for food grade hose applications.
  • Specially designed shank & ferrule lengths are matched for hose tube and cover protection.
  • Dedicated silicone bumper seat area on crimp hose fittings.
  • All products listed as 3A components are certified to meet 32 Ra minimum polish and all other 3A criteria under 3A RPSCQC.
  • Crimp specifications are provided for all hoses for proven performance (3A crimp process exception).
Part Number Hose Size
TCLW-2 316 1/2" x 1/2"
TCLW-3 316 3/4" x 3/4"
TCLW-4 316 1" x 1"
TCLW-6 316 1-1/2" x 1-1/2"
TCLW-8 316 2" x 2"
TCLW-10 316 2-1/2" x 2-1/2"
TCLW-12 316 3" x 3"
TCLW-16 316 4" x 4"

Additional Product Data:

Shape:

Straight

Material(s):
  • 316 Stainless Steel
Special Properties:
  • Long

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.

Explore Campbell Fittings
