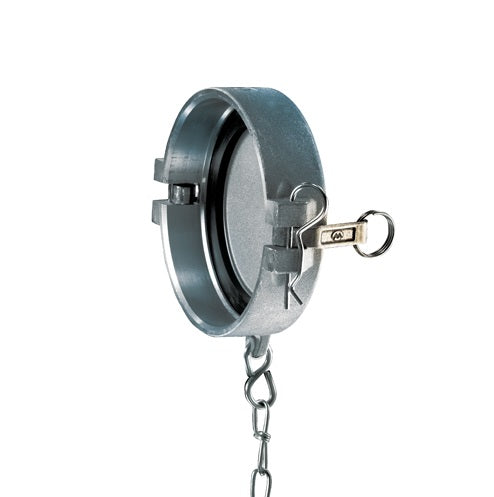

TCDC-A400 by Kuriyama | TCDC Series | Part DC | API Dust Cap | 4" Size | Aluminum
Buy more, save moreDiscounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made for use in petroleum markets with bottom loading applications.
- API coupler end designed at a 22° angle for easy connecting and unrestricted off-loading.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with forged brass handles, which results in less wear on connecting parts.
What are the Materials?
- ASTM aluminum alloy.
- Supplied with a heavy-duty attachment chain.
- Zinc-plated carbon steel handle pins, pull rings and safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|
| TCDC-A400 | 4" | 150 PSI | B26 Grade 713 | 3.00 lbs |
Additional Product Data:
Series:
MAWP:
150
Shape:
Straight
Cam & Groove Type:
Type DC
Ends Configuration:
Material(s):
Seal Material(s):
