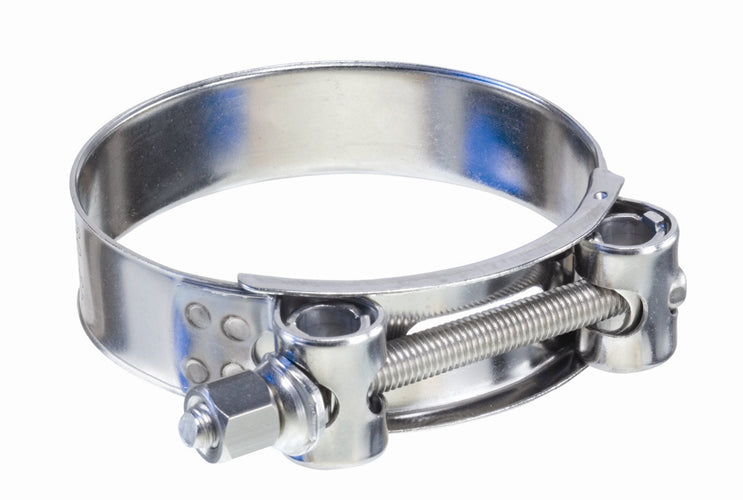

TBC-SS148 by Kuriyama | Band & Bolt and Nuts | Heavy Duty T-Bolt Clamp | Size Range: 5-17/32" - 5-13/16" | Band Width: 1-1/32" | Torque | 29ft. Lbs. | 304 Stainless Steel
Kuriyama Couplings™ - T-Bolt Clamps - Heavy Duty - 304 Stainless Steel Band, Bolt and Nut
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $21.99 |
| 40–79 | $19.88 |
| 80+ | $17.54 |
Discounts applied in cart/checkout.
Product Data:
Material(s):
Clamp Width:
1.03125"
Minimum Clamp I.D.:
5.53125"
Maximum Clamp I.D.:
5.8125"
| Applications: | |||
|---|---|---|---|
|
|||
| Features: | |||
|
|||
| Materials: | |||
|
| Part Number | Size Range (in.) | Band Width (in.) | Torque (ft. lbs.) | Weight (Lbs.) |
|---|---|---|---|---|
| TBC-SS019 | 21/32" - 3/4" | 23/32" | 6 ft. Lbs. | 0.064 lbs |
| TBC-SS022 | 25/32" - 7/8" | 23/32" | 6 ft. Lbs. | 0.066 lbs |
| TBC-SS025 | 29/32" - 1" | 23/32" | 6 ft. Lbs. | 0.068 lbs |
| TBC-SS028 | 1-1/32" - 1-3/32" | 23/32" | 6 ft. Lbs. | 0.068 lbs |
| TBC-SS031 | 1-5/32" - 1-15/32" | 25/32" | 7 ft. Lbs. | 0.115 lbs |
| TBC-SS035 | 1-1/4" - 1-3/8" | 25/32" | 7 ft. Lbs. | 0.115 lbs |
| TBC-SS039 | 1-3/8" - 1-9/16" | 25/32" | 7 ft. Lbs. | 0.117 lbs |
| TBC-SS043 | 1-5/8" - 1-13/16" | 25/32" | 7 ft. Lbs. | 0.121 lbs |
| TBC-SS047 | 1-3/4" - 1-15/16" | 7/8" | 10 ft. Lbs. | 0.198 lbs |
| TBC-SS051 | 1-7/8" - 2-1/16" | 7/8" | 10 ft. Lbs. | 0.209 lbs |
| TBC-SS055 | 2-1/8" - 2-5/16" | 7/8" | 10 ft. Lbs. | 0.216 lbs |
| TBC-SS059 | 2-1/4" - 2-7/16" | 7/8" | 10 ft. Lbs. | 0.221 lbs |
| TBC-SS063 | 2-3/8" - 2-9/16" | 7/8" | 10 ft. Lbs. | 0.227 lbs |
| TBC-SS067 | 2-17/32" - 2-13/16" | 7/8" | 10 ft. Lbs. | 0.232 lbs |
| TBC-SS073 | 2-21/32" - 2-15/16" | 15/16" | 17 ft. Lbs. | 0.331 lbs |
| TBC-SS079 | 2-29/32" - 3-3/16" | 15/16" | 17 ft. Lbs. | 0.353 lbs |
| TBC-SS085 | 3-1/32" - 3-5/16" | 15/16" | 17 ft. Lbs. | 0.353 lbs |
| TBC-SS091 | 3-9/32" - 3-9/16" | 15/16" | 17 ft. Lbs. | 0.364 lbs |
| TBC-SS097 | 3-17/32" - 3-13/16" | 15/16" | 17 ft. Lbs. | 0.397 lbs |
| TBC-SS103 | 3-25/32" - 4-1/16" | 15/16" | 17 ft. Lbs. | 0.397 lbs |
| TBC-SS112 | 4-1/32" - 4-5/16" | 15/16" | 17 ft. Lbs. | 0.419 lbs |
| TBC-SS121 | 4-17/32" - 4-13/16" | 15/16" | 17 ft. Lbs. | 0.430 lbs |
| TBC-SS130 | 4-25/32" - 5-1/16" | 15/16" | 17 ft. Lbs. | 0.441 lbs |
| TBC-SS139 | 5-9/32" - 5-9/16" | 1-1/32" | 29 ft. Lbs. | 0.644 lbs |
| TBC-SS148 | 5-17/32" - 5-13/16" | 1-1/32" | 29 ft. Lbs. | 0.679 lbs |
| TBC-SS161 | 5-9/32" - 5-9/16" | 1-1/32" | 29 ft. Lbs. | 0.644 lbs |
| TBC-SS174 | 6-17/32" - 6-13/16" | 1-1/32" | 29 ft. Lbs. | 0.723 lbs |
| TBC-SS187 | 6-7/8" - 7-3/8" | 1-1/32" | 29 ft. Lbs. | 0.750 lbs |
| TBC-SS200 | 7-13/32" - 7-7/8" | 1-1/32" | 29 ft. Lbs. | 0.787 lbs |
| TBC-SS213 | 7-29/32" - 8-3/8" | 1-1/32" | 29 ft. Lbs. | 0.809 lbs |
| TBC-SS226 | 8-21/32" - 8-15/16" | 1-1/32" | 29 ft. Lbs. | 0.844 lbs |
| TBC-SS239 | 8-15/16" - 9-13/32" | 1-1/32" | 29 ft. Lbs. | 0.882 lbs |
| TBC-SS252 | 9-7/16" - 9-29/32" | 1-1/32" | 29 ft. Lbs. | 0.919 lbs |
