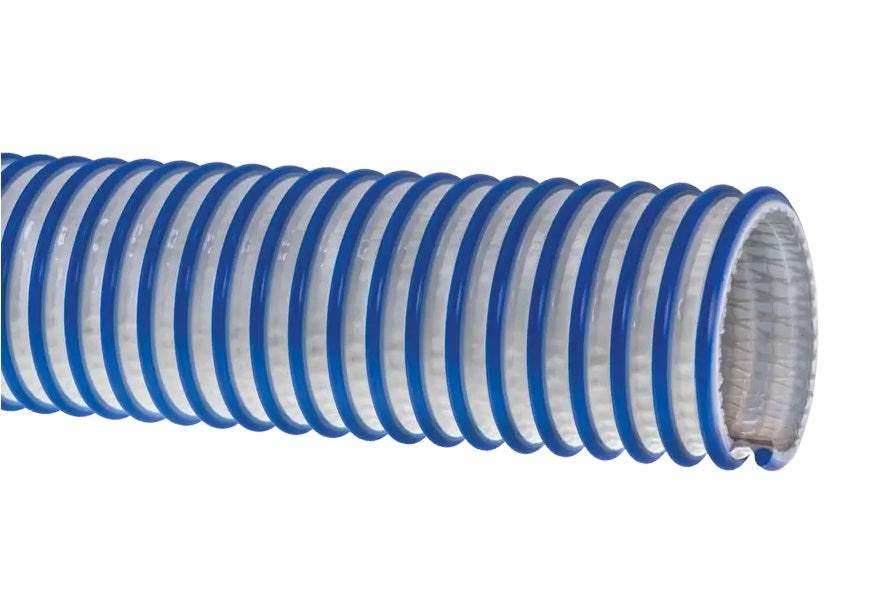

TAQ150X100 Tigerflex® Tiger™ Aqua by Kuriyama | TAQ™ Series | Potable Water Suction & Discharge Hose | PVC | 1-1/2" ID | 1.95" OD | 100ft Length
Tigerflex® | Tiger™ Aqua | TAQ™ Series Series | Potable Water Suction & Discharge Hose | PVC
Ideal for potable water service in residential, oilfield, airport, and marine applications, as well as ice transfer and food-grade liquids such as beer, wine, and juice.
Made in the USA.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $860.87 |
| 15–29 | $778.45 |
| 30+ | $686.87 |
Product Data:
110
Tigerflex™ TAQ Series
Food grade double-ply PVC suction and pressure hose with an NSF listed liner, polyester fabric reinforcement and rigid PVC helix — built for potable water transfer and food grade liquids.
NSF Listed Liner
Liner material certified under NSF/ANSI/CAN 61 for potable water
Food Grade Materials
Complies with applicable FDA requirements
Cold-Flex Materials
Remains flexible in sub-zero temperatures
Opaque White Cover
Reduces staining, blocks UV and reduces algae growth
1
What is this product used for?
- Transfer of potable water in residential, oilfield, airport and marine (ship) applications
- Ice transfer
- Food grade liquids such as beer, wine, and juice
2
What are the key specifications?
Double-ply PVC
Polyester fabric, rigid PVC helix
PVC
-40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
BSE/TSE (02) · FDA (03) · FDA (05) · Phthalate Free (10) · RoHS (11)
3
What are the main product features?
- NSF Listed Liner — Hose liner material certified under NSF/ANSI/CAN 61 for use in potable water applications. Please refer to the note below for the official NSF listing.
- Food Grade Materials — Hose complies with applicable FDA (03) requirements.
- "Cold-Flex" Materials — Hose remains flexible in sub-zero temperatures.
- Opaque Construction — Solid white cover reduces appearance of staining from conveyed materials, blocks out UV, reducing instances of algae growth.
- Fabric Reinforcement — Designed with a high tensile strength, food grade (05), polyester yarn jacket to handle suction and pressure applications.
- Easy Slide Helix — Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
- Made in the USA
4
Which sizes are available?
| Part Number |
ID | OD | Working Pressure (PSI) |
Vacuum Rating in Hg |
Min. Bending Radius |
Length (ft) |
Weight (lbs/ft) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F |
at 104°F |
at 68°F |
at 104°F |
at 68°F |
|||
| TAQ150X100 | 1-1/2" | 38.1mm | 1.95" | 49.5mm | 110 PSI | 70 PSI | Full | 28 in Hg | 2-1/2" | 100ft | 0.42 lbs |
| TAQ200X100 | 2" | 50.8mm | 2.60" | 66.0mm | 100 PSI | 65 PSI | Full | 28 in Hg | 4" | 100ft | 0.74 lbs |
| TAQ300X100 | 3" | 76.2mm | 3.62" | 92.0mm | 100 PSI | 50 PSI | Full | 28 in Hg | 6" | 100ft | 1.13 lbs |
| TAQ400X100 | 4" | 101.6mm | 4.76" | 121.0mm | 75 PSI | 37 PSI | Full | 28 in Hg | 8" | 100ft | 1.74 lbs |
| TAQ600X100 | 6" | 152.4mm | 7.17" | 182.1mm | 70 PSI | 35 PSI | 28 in Hg | 25 in Hg | 13" | 100ft | 3.88 lbs |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide PDF
Consult the Tigerflex Hose Specifications Guide for more information on BSE/TSE, FDA, Phthalate Free and RoHS compliance.
How is this product sold?
Sold by the coil in 100 ft lengths. See the size chart above for available part numbers.
