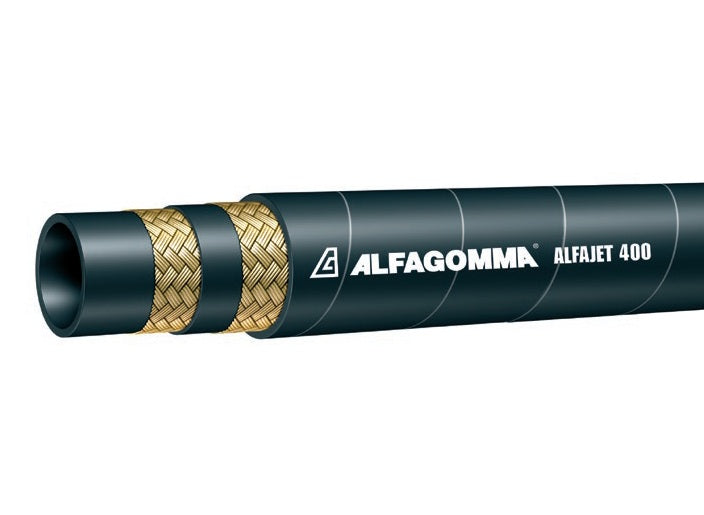

TAJ5BK-08 Alfagomma by Kuriyama | TAJ5BK Series | Alfajet 400 | Pressure Washer Hose | 2-Wire Braid | 1/2" ID | 0.79" OD | 5850 PSI | Black
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | High pressure cleaning hose. For heavy duty use with hot and cold water and detergent fluids, and high pressure cleaning equipment. Extremely flexible, light weight and easy to handle. Use bend restrictors to extend service life. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | - | Tube: | Synthetic rubber, black... hot water resistant. |
| Reinforcement: | Two high tensile steel wire braids. | Cover: | Pin-pricked, black synthetic rubber, weather, oil, ozone, and abrasion resistant. Blue cover version is non-marking. |
| Service Temperature Range: | -40°F (-40°C) to +300°F (+155°C) constant operation. Maximum operating temperature: +300°F (+155°C) |
Air Maximum Temperature: | +175°F (+80°C) Note: Operating temperatures in excess of +300°F (+155°C) may materially reduce the life of the hose. |
| Branding: | ALFAGOMMA ALFAJET 400 ID ... DN ... Bar WP - 155°C | ||
| TAJ5BK Series | Black | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||||
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |||
| TAJ5BK-04 | 1/4" | 6.4mm | 0.52" | 13.2mm | 5850 PSI | 2.7" | 68.6mm | 0.18 lbs/ft | ||
| TAJ5BK-06 | 3/8" | 9.5mm | 0.66" | 16.7mm | 5850 PSI | 3.5" | 88.9mm | 0.26 lbs/ft | ||
| TAJ5BK-08 | 1/2" | 12.7mm | 0.79" | 20.1mm | 5850 PSI | 4.5" | 114.3mm | 0.34 lbs/ft | ||
| TAJ5BU Series | Blue | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||||
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |||
| TAJ5BU-04 | 1/4" | 6.4mm | 0.52" | 13.2mm | 5850 PSI | 2.7" | 68.6mm | 0.18 lbs/ft | ||
| TAJ5BU-06 | 3/8" | 9.5mm | 0.66" | 16.7mm | 5850 PSI | 3.5" | 88.9mm | 0.26 lbs/ft | ||
| TAJ5BU-08 | 1/2" | 12.7mm | 0.79" | 20.1mm | 5850 PSI | 4.5" | 114.3mm | 0.34 lbs/ft | ||
* Minimum burst pressure 4-to-1 safety factor.
