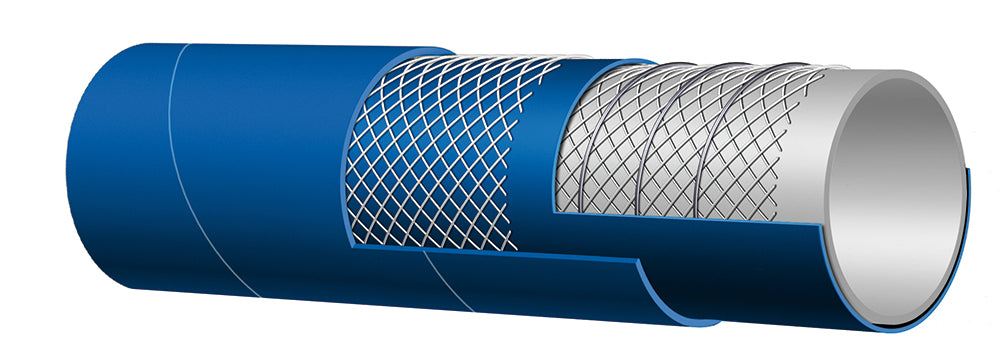

T903LE400X100 Alfagomma by Kuriyama | T903LE Series | FDA Hot Air Blower Hose | 4" ID | 4.57" OD | 150 PSI | Blue | 100ft Length
Kuriyama of America Inc.
Alfagomma | T903LE Series | 150 PSI High Quality FDA Hot Air Blower Hose
Use in the hot air transfer between the air compressor and dry bulk tank on bulk material carriers.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $3,697.22 |
| 4–9 | $3,539.89 |
| 10+ | $3,146.57 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Specifications and Approvals:
SPECIFICATIONS
| Application: | Hot air transfer between the air compressor and dry bulk tank on bulk material carriers. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | Meets FDA requirements. | Tube: | White EPDM - heat-resistant. Meets FDA requirements. |
| Reinforcement: | Spiraled high tensile textile cords with flexible steel helix wire. | Cover: | Blue EPDM - heat, abrasion and ozone resistant. |
| Service Temperature Range: | -40°F (-40°C) to +356°F (+180°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | ALFAGOMMA - ITALY T903 10 BAR (150 PSI) - HOT AIR SERVICE - FDA (in white letters) | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | inHg | (in) | lbs/ft | |
| T903LE300X100 | 3" | 76mm | 3.54" | 90mm | 150 PSI | 27 inHg | 9" | 1.65 lbs/ft |
| T903LE400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27 inHg | 12" | 2.26 lbs/ft |
