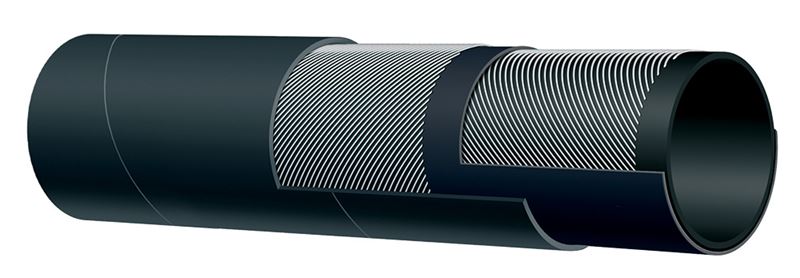

T753AA200X100 Alfagomma by Kuriyama | T753AA Series | 4-Ply Abrasive Material Blast Hose | 2" ID | 2.87" OD | 180 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | T753AA Series | 4-Ply Abrasive Material Blast Hose
Formerly T750AA Series
Designed to convey abrasives, sand and shot blast material.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,588.20 |
| 8–14 | $1,520.61 |
| 15+ | $1,351.66 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
180
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | Designed to convey abrasives, sand and shot blast material. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black static conducting natural rubber - offering excellent abrasion resistance, upgraded to 50mm3 (cubed) rating. |
| Reinforcement: | High tensile textile cords - 4-ply construction. | Cover: | Black or green, conductive SBR/NR blend - abrasion and ozone resistant - pin pricked. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Sandblast couplings and nozzle holders attached with screws. |
| Branding: | ALFAGOMMA - ITALY - 753 12 BAR (180 PSI) PREMIUM ABRASIVE MATERIAL BLAST Ω (in white letters) | ||
| T753AA Series | Black Cover | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 50ft |
Part Number 100ft |
ID | OD | Tube Thickness | Max Rec. Working Pressure |
Weight | |||
| (in) | (mm) | (in) | (mm) | (mm) | PSI | lbs/ft | |||
| T753AA075X50 | T753AA075X100 | 3/4" | 19mm | 1.50" | 38mm | 0.236mm | 180 PSI | 0.68 lbs/ft | |
| T753AA100X50 | T753AA100X100 | 1" | 25mm | 1.89" | 48mm | 0.283mm | 180 PSI | 1.04 lbs/ft | |
| T753AA125X50 | T753AA125X100 | 1-1/4" | 32mm | 2.17" | 55mm | 0.283mm | 180 PSI | 1.23 lbs/ft | |
| T753AA150X50 | T753AA150X100 | 1-1/2" | 38mm | 2.36" | 60mm | 0.260mm | 180 PSI | 1.40 lbs/ft | |
| T753AA200X50 | T753AA200X100 | 2" | 51mm | 2.87" | 73mm | 0.260mm | 180 PSI | 1.77 lbs/ft | |
NOTE: Tolerances according to RMA Class 311-A
| T753AG Series | Green Cover | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 50ft |
Part Number 100ft |
ID | OD | Tube Thickness | Max Rec. Working Pressure |
Weight | |||
| (in) | (mm) | (in) | (mm) | (mm) | PSI | lbs/ft | |||
| T753AG075X50 | T753AG075X100 | 3/4" | 19mm | 1.50" | 38mm | 0.236mm | 180 PSI | 0.68 lbs/ft | |
| T753AG100X50 | T753AG100X100 | 1" | 25mm | 1.89" | 48mm | 0.283mm | 180 PSI | 1.04 lbs/ft | |
| T753AG125X50 | T753AG125X100 | 1-1/4" | 32mm | 2.17" | 55mm | 0.283mm | 180 PSI | 1.23 lbs/ft | |
| T753AG150X50 | T753AG150X100 | 1-1/2" | 38mm | 2.36" | 60mm | 0.260mm | 180 PSI | 1.40 lbs/ft | |
NOTE: Tolerances according to RMA Class 311-A
| Hose Id (in) | Hose Ends | Nozzle Holders | Threaded Female Adapter | Gaskets |
|---|---|---|---|---|
| 3/4 | Q-AL1, Q-BR1, Q-PI1 | NH-AL1, NH-BR1 | - | SBG |
| 1 | Q-AL2, Q-BR2, Q-PI2 | NH-AL2, NH-BR2 | - | SBG |
| 1-1/4 | Q-AL3, Q-BR3, Q-PI3 | NH-AL3, NH-BR3 | SB-AL1, SB-BR1 | SBG |
| 1-1/2 | Q-AL4, Q-BR4, Q-PI4 | NH-AL4, NH-BR4 | SB-AL2, SB-BR2 | SBG |
