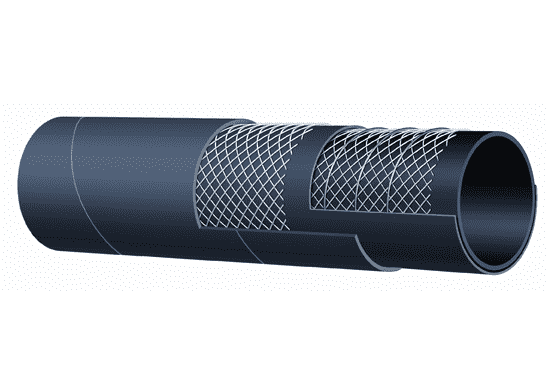

T720AA500X50 Alfagomma by Kuriyama | Bulk Material S & D Hose | Black | 5" ID | 5.63" OD | 75 PSI | 50ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Suction and discharge of wet or dry abrasive materials. Designed for grains and dry cement.SAE Rating:N/A | ||
|---|---|---|---|
| Other Ratings: | N/A | Tube: | 3/16" black conductive NR - abrasion resistant. |
| Reinforcement: | Spiralled high tensile textile cords, with 4 highly flexible steel helix wires and static wire. | Cover: | Black conductive SBR/NR blend - abrasion and ozone resistant. |
| Temperature Range: | -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Nominal ID | Nominal ID | Max Rec. Working Pressure | Vacuum HG | Min. Bend Radius at 68 deg. F | Standard Length | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (in.) | (ft.) | (lbs./ft.) | |
| T720AA200X100 | 2" | 51mm | 2.56" | 65mm | 150 PSI | 30" | 6" | 100ft | 0.97 lbs |
| T720AA300X100 | 3" | 76mm | 3.54" | 90mm | 150 PSI | 27" | 9" | 100ft | 1.54 lbs |
| T720AA400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27" | 12" | 100ft | 2.15 lbs |
| T720AA400X50 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27" | 12" | 50ft | 2.15 lbs |
| T720AA500X20 | 5" | 127mm | 5.63" | 143mm | 75 PSI | 24" | 20" | 20ft | 3.20 lbs |
| T720AA500X50 | 5" | 127mm | 5.63" | 143mm | 75 PSI | 24" | 20" | 50ft | 3.20 lbs |
| T720AA600X20 | 6" | 152mm | 6.61" | 168mm | 75 PSI | 24" | 24" | 20ft | 4.01 lbs |
| T720AA600X50 | 6" | 152mm | 6.61" | 168mm | 75 PSI | 24" | 24" | 50ft | 4.01 lbs |
Please note: Proper grounding of static wire will prolong tube life.
