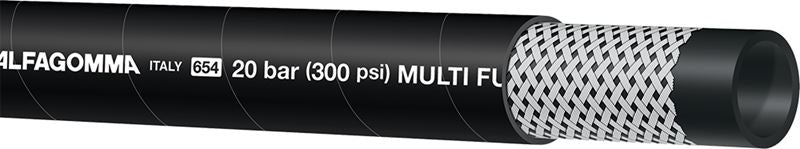

T654AA075 Alfagomma by Kuriyama | T654AA Series | Small Engine Fuel Transfer Hose | SAE J30R7 | 3/4" ID | 1.06" OD | 300 PSI | 330ft Length

T654AA075 Alfagomma by Kuriyama | T654AA Series | Small Engine Fuel Transfer Hose | SAE J30R7 | 3/4" ID | 1.06" OD | 300 PSI | 330ft Length

Sale price$1,209.13

Package Quantity: 330 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: For small engine marine and automotive fuel and oil transfer applications such as boat engines, lawnmowers, generators and snowmobiles.
Ratings: SAE J30R7 Tube: Conductive Nitrile (NBR).
Reinforcement: High tensile textile braids. Cover: Conductive Neoprene (CR) hydrocarbon resistant.
Service Temperature Range: -40°F (-40°C) to +257°F (+125°C) Coupling Suggestions: Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.
Branding: ALFAGOMMA-ITALY- 654 EVOLUTION 20 bar (300 psi) MULTI FUEL SAE 30R7 ID mm- QQ/YY (white inkjet lettering)
Other Features:
  • Broad Fuel Resistance - Exhibits resistance to a wide range of fuels. Meets SAE J30R7 compliance, meaning it can be used in a variety of fuel applications including gasoline, oil, diesel fuel and lubrication for internal combustion engines in mobile, stationary and marine applications.
  • Comprehensive Small Size Range - Wide variety of small sizes available starting at 3/16" all the way up to 1".
  • High Kink Resistance - Possesses a highly durable construction for a soft wall hose; resists the kinking, ovaling and elongation that can affect similar spaghetti style hoses.
  • Easy Installation - Flexible and lightweight construction for ease of installation in tight spaces.
Part Number ID OD Max Rec.
Working Pressure*		 Standard
Length Reel		 Weight
(in) (mm) (in) (mm) PSI ft (lbs/ft)
T654AA019 3/16" 5mm 0.47" 12mm 300 PSI 950ft 0.07 lbs/ft
T654AA025 1/4" 6mm 0.51" 13mm 300 PSI 820ft 0.09 lbs/ft
T654AA031 5/16" 8mm 0.59" 15mm 300 PSI 720ft 0.11 lbs/ft
T654AA038 3/8" 10mm 0.67" 17mm 300 PSI 620ft 0.12 lbs/ft
T654AA050 1/2" 13mm 0.79" 20mm 300 PSI 600ft 0.15 lbs/ft
T654AA062 5/8" 16mm 0.94" 24mm 300 PSI 450ft 0.21 lbs/ft
T654AA075 3/4" 19mm 1.06" 27mm 300 PSI 330ft 0.23 lbs/ft
T654AA100 1" 25mm 1.34" 34mm 300 PSI 220ft 0.34 lbs/ft

* 3-to-1 safety factor

Additional Product Data:

Brand:
  • Alfagomma
Series:
  • T654AA Series
Color(s):
  • Black

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
