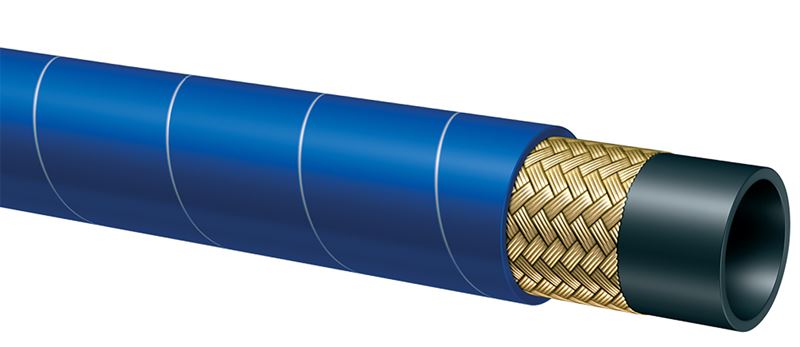

T631AE075X100 Alfagomma by Kuriyama | T631AE Series | Hydrocarbon Drain Hose | 3/4" ID | 1.26" OD | 300 PSI | Blue | 100ft Length
Kuriyama of America Inc.
Alfagomma | T631AE Series | Hydrocarbon Drain Hose
Ideal as a drain hose for residue from cleaning storage tanks and refining hydrocarbons.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $890.18 |
| 15–29 | $804.95 |
| 30+ | $710.25 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Drain hose for residue from cleaning storage tanks and refining hydrocarbons. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black NBR-hydrocarbon resistant. |
| Reinforcement: | High tensile steel wire braids. | Cover: | Blue CR - abrasion and hydrocarbon resistant. |
| Service Temperature Range: | -22°F (-30°C) to +356°F (+180°C) | Coupling Suggestions: | - |
| Branding: | ALFAGOMMA-HYDROCARBON DRAIN HOSE-300PSI | ||
| Part Number 50ft |
Part Number 100ft |
ID | OD | Wall Thickness |
Max Rec. Working Pressure |
Min. Bend Radius |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (mm) | PSI | (in) | lbs/ft | ||
| T631AE075X50 | T631AE075X100 | 3/4" | 19mm | 1.26" | 32mm | 6mm | 300 PSI | 3" | 0.50 lbs/ft |
