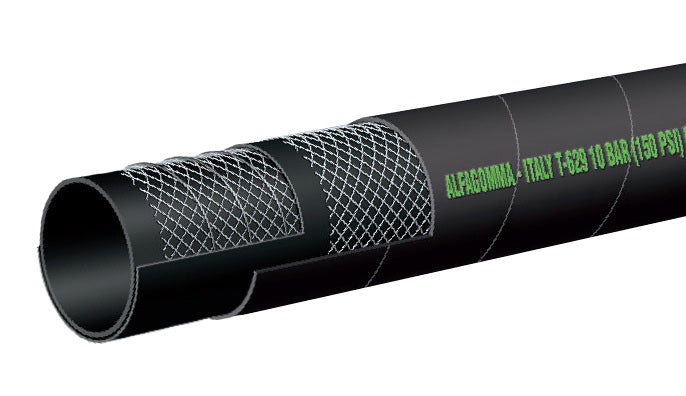

T629AA150X100 Alfagomma by Kuriyama | T629AA Series | Biofuel Petroleum Suction & Discharge Hose | 1-1/2" ID | 1.89" OD | 150 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | T629AA Series | Biofuel Petroleum Suction & Discharge Hose
For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels - up to E98 and B100* with up to 60% aromatic content at ambient temperature.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,333.57 |
| 8–14 | $1,276.82 |
| 15+ | $1,134.95 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels - up to E98 and B100* with up to 60% aromatic content at ambient temperature. *Applies to Biodiesels which meet the ASTM D6751 criteria. |
||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black conductive synthetic rubber. |
| Reinforcement: | High tensile textile cords with steel helix wire. | Cover: | Black specially-blended neoprene - added resistance against abrasion, ozone and hydrocarbons. |
| Service Temperature Range: | -22°F (-30°C) to 176°F (+80°C) | Coupling Suggestions: | Quick-Acting or combination nipples attached with bands. |
| Branding: | ALFAGOMMA - ITALY T629 - 10 BAR (150 PSI) BIOFUEL Ω (in green letters) | ||
| Note: | T629 is not recommended for use on a reel. | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |
| T629AA075X100 | 3/4" | 19mm | 1.14" | 29mm | 150 PSI | 30 in Hg | 3" | 0.41 lbs/ft |
| T629AA100X100 | 1" | 25mm | 1.38" | 35mm | 150 PSI | 30 in Hg | 4" | 0.51 lbs/ft |
| T629AA150X100 | 1-1/2" | 38mm | 1.89" | 48mm | 150 PSI | 30 in Hg | 6" | 0.71 lbs/ft |
| T629AA200X100 | 2" | 51mm | 2.40" | 61mm | 150 PSI | 30 in Hg | 8" | 0.91 lbs/ft |
| T629AA250X100 | 2-1/2" | 63mm | 2.95" | 75mm | 150 PSI | 27 in Hg | 10" | 1.42 lbs/ft |
| T629AA300X100 | 3" | 76mm | 3.46" | 88mm | 150 PSI | 27 in Hg | 12" | 1.71 lbs/ft |
| T629AA400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27 in Hg | 16" | 2.38 lbs/ft |
