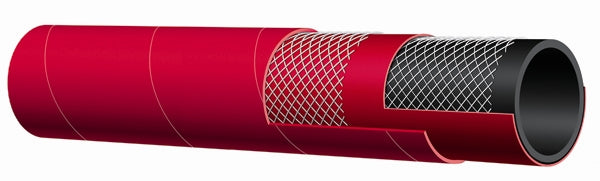

T605AH200X100 Alfagomma by Kuriyama | T605AH Series | Petroleum Suction & Discharge Hose | 2" ID | 2.40" OD | 150 PSI | Red | 100ft Length
Kuriyama of America Inc.
Alfagomma | T605AH Series | Petroleum Suction & Discharge Hose
For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,274.84 |
| 8–14 | $1,220.59 |
| 15+ | $1,084.97 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black conductive NBR. |
| Reinforcement: | High tensile textile cords with flexible steel helix wire. | Cover: | Red CR - abrasion, ozone and hydrocarbon resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules. |
| Branding: | ALFAGOMMA - ITALY T605 - 10 BAR (150 PSI) PETROLEUM - S & D (in yellow letters) | ||
| Note: | T605 is not recommended for use on a reel. | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |
| T605AH150X100 | 1-1/2" | 38mm | 1.89" | 48mm | 150 PSI | 30 in Hg | 6" | 0.73 lbs/ft |
| T605AH200X100 | 2" | 51mm | 2.40" | 61mm | 150 PSI | 30 in Hg | 8" | 0.94 lbs/ft |
| T605AH300X100 | 3" | 76mm | 3.46" | 88mm | 150 PSI | 27 in Hg | 12" | 1.74 lbs/ft |
| T605AH400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27 in Hg | 16" | 2.41 lbs/ft |
