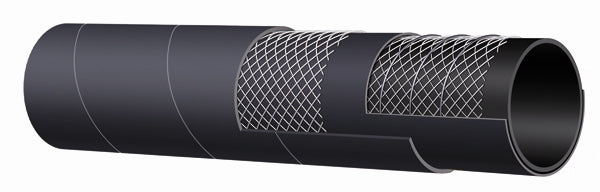

T604AA200X100 Alfagomma by Kuriyama | T604AA Series | Flexor Oil Return Petroleum Hose | SAE 100R4 | 2" ID | 2.40" OD | 100 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | T604AA Series | Flexor Oil Return Petroleum Hose
For low pressure return lines or suction lines with half the bend radius requirements of SAE J517 100 R4, service with petroleum based hydraulic fluids, water-glycol and water-fire resistant hydraulic fluids, oil, lubricants, crude oil, fuel oils and water.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,215.52 |
| 8–14 | $1,163.80 |
| 15+ | $1,034.49 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
100
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | Low pressure return lines or suction lines with half the bend radius requirements of SAE J517 100 R4, service with petroleum based hydraulic fluids, water-glycol and water-fire resistant hydraulic fluids, oil, lubricants, crude oil, fuel oils and water. | ||
|---|---|---|---|
| Other Ratings: | SAE J517 100 R4 | Tube: | Black conductive NBR. |
| Reinforcement: | High tensile textile cords with flexible steel helix wire. | Cover: | Black CR - oil, fuel, weather, ozone and abrasion-resistant. |
| Service Temperature Range: | -40° F (-40° C) to +212° F (+100° C) constant operation Maximum operating temperature: +257° F (+125° C) Air maximum temperature: 175° F (80° C). Note: Operating temperatures in excess of 212° F (+100° C) may materially reduce the life of the hose. |
Coupling Suggestions: | Crimp-on permanent type or combination nipples with bands. Note: Hose cover does not need to be removed before attaching couplings. |
| Branding: | ALFAGOMMA - ITALY - T604 (PSI) - SAE 100 R4 - (SIZE) - Date (in white letters) | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |
| T604AA075X100 | 3/4" | 19mm | 1.14" | 29mm | 300 PSI | 30 in Hg | 2-1/4" | 0.41 lbs/ft |
| T604AA100X100 | 1" | 25mm | 1.38" | 35mm | 250 PSI | 30 in Hg | 3" | 0.52 lbs/ft |
| T604AA125X100 | 1-1/4" | 32mm | 1.65" | 42mm | 200 PSI | 30 in Hg | 3-3/4" | 0.61 lbs/ft |
| T604AA150X100 | 1-1/2" | 38mm | 1.89" | 48mm | 150 PSI | 30 in Hg | 4-1/2" | 0.70 lbs/ft |
| T604AA200X100 | 2" | 51mm | 2.40" | 61mm | 100 PSI | 30 in Hg | 6" | 0.90 lbs/ft |
