T601AA600X100 Alfagomma by Kuriyama | Oil Rigger/Oil Field | Frack Tank Hose | Black | 6" ID | 6.61" OD | 150 PSI | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Oil field vacuum tank service, for handling crude oil, frack solutions and slurries. Note: For applications up to 35% aromatics. Not for use with refined petroleum products. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black Nitrile - PVC blend, limited oil resistance, for oil field use. |

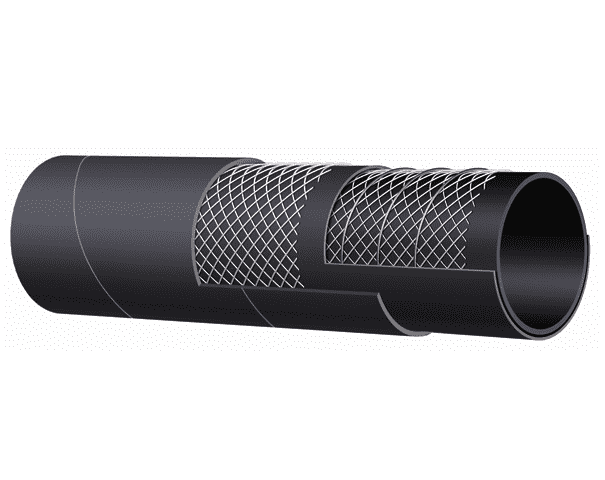

| Reinforcement: | High tensile textile cords; highly flexible steel helix wire. | Cover: | Black SBR - abrasion, ozone, limited oil resistance. |
| Temperature Range: | -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Nominal ID | Nominal OD | Max Rec. Working Pressure | Vacuum HG | Max Rec. Working Pressure | Standard Length | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (in.) | (ft.) | (lbs./ft.) | |
| T601AA200X100 | 2" | 51mm | 2.40" | 61mm | 150 PSI | 30" | 10" | 100ft | 0.93 lbs |
| T601AA300X100 | 3" | 76mm | 3.46" | 88mm | 150 PSI | 27" | 15" | 100ft | 1.73 lbs |
| T601AA400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27" | 20" | 100ft | 2.40 lbs |
| T601AA600X100 | 6" | 152mm | 6.61" | 168mm | 150 PSI | 24" | 30" | 100ft | 4.59 lbs |
| T601AA800X20 | 8" | 203mm | 8.86" | 225mm | 150 PSI | 21" | 40" | 20ft | 6.60 lbs |
