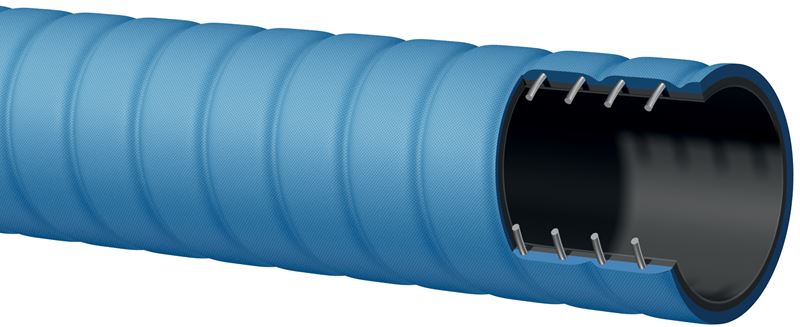

T519OE300X100 Alfagomma by Kuriyama | T519OE Series | Corrugated UHMWPE Acid / Chemical Suction & Discharge Hose | 3" ID | 3.54" OD | 240 PSI | Blue | 100ft Length
Kuriyama of America Inc.
Alfagomma | T519OE Series | Corrugated UHMWPE Acid / Chemical Suction & Discharge Hose
Suitable for use with DEF.
Suction and transfer service for a variety of chemicals and acids.
Will handle 98% of existing chemicals.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $3,220.22 |
| 4–9 | $3,083.19 |
| 10+ | $2,740.62 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
240
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Suction and transfer service for a variety of chemicals and acids. Will handle 98% of existing chemicals. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Transparent UHMWPE (Ultra High Molecular Weight Polyethylene). |
| Reinforcement: | Synthetic textile cords with flexible steel helix wire. | Cover: | Blue EPDM - abrasion and ozone resistant. |
| Service Temperature Range: | Normal recommended operating temperature is -22°F (-30°C) to +200°F (+93°C) | Coupling Suggestions: | Quick-Acting and combination nipples, preferably stainless steel, attached with bands. |
| Branding: | ALFAGOMMA - ITALY T519 16 BAR (240 PSI) - UHMWPE CHEMICAL - S & D (in orange letters) | ||
| Important: | IT IS ADVISABLE TO TEST THE TUBE MATERIAL UNDER ACTUAL SERVICE CONDITIONS PRIOR TO USE. NOTE: FOR MAXIMUM SERVICE LIFE, WE RECOMMEND THAT T509 HOSE BE FLUSHED OUT AFTER EVERY USE. | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |
| T519OE200X100 | 2" | 51mm | 2.48" | 63mm | 240 PSI | 27 in Hg | 6" | 94 lbs/ft |
| T519OE300X100 | 3" | 76mm | 3.54" | 90mm | 240 PSI | 27 in Hg | 9" | 169 lbs/ft |
| T519OE400X100 | 4" | 102mm | 4.57" | 116mm | 240 PSI | 27 in Hg | 12" | 275 lbs/ft |
