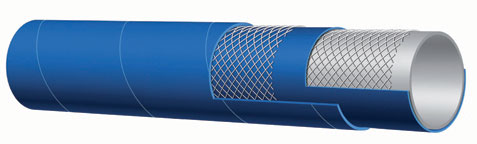

T452LE300X100 Alfagomma by Kuriyama | T452LE Series | FDA Potable Water Hose (Not NSF Approved) | 3" ID | 3.62" OD | 150 PSI | Blue | 100ft Length
Package Quantity: 100 Foot
Buy more, save moreDiscounts applied in cart/checkout.
SPECIFICATIONS
| Application: | Discharge of water used for drinking. Most often used for temporary water lines in construction and industrial applications. | ||
|---|---|---|---|
| Other Ratings: | Meets FDA and 3A (18-03) requirements. | Tube: | White NBR. Meets FDA and 3A (18-03) requirements. |
| Reinforcement: | High tensile textile cords. | Cover: | Blue SBR/EPDM blend - abrasion and ozone resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting couplings attached with bands. |
| Branding: | ALFAGOMMA - ITALY T452 10 BAR POTABLE WATER HOSE (150 PSI) WP (in white letters | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | |
| T452LE150X100 | 1-1/2" | 38mm | 1.97" | 50mm | 150 PSI | 0.73 lbs/ft |
| T452LE200X100 | 2" | 51mm | 2.56" | 65mm | 150 PSI | 1.13 lbs/ft |
| T452LE300X100 | 3" | 76mm | 3.62" | 92mm | 150 PSI | 1.88 lbs/ft |
| T452LE400X100 | 4" | 102mm | 4.65" | 118mm | 150 PSI | 2.51 lbs/ft |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Special Properties:
