T426LB400X100 Alfagomma by Kuriyama | T426LB Series | FDA Corrugated Food Suction & Discharge Hose | 4" ID | 4.65" OD | 150 PSI | Grey | 100ft Length
Kuriyama of America Inc.
Alfagomma | T426LB Series | 150 PSI FDA Grey Corrugated Food Suction & Discharge Hose
For liquid, fatty, oily food, and alcoholic beverages, max 150 proof and 75% alcohol content.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $3,177.16 |
| 4–9 | $3,041.96 |
| 10+ | $2,703.97 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Application: | - Liquid, fatty, oily food and alcoholic beverage, max 150 proof and 75% alcohol content, suction and discharge. - Hose may be sterilized with 5% soda solution. - Not recommended for dry abrasive materials. |
||
|---|---|---|---|
| Other Ratings: | Meets FDA and 3A (18-03) requirements. | Tube: | White NBR. Meets FDA and 3A (18-03) requirements. |

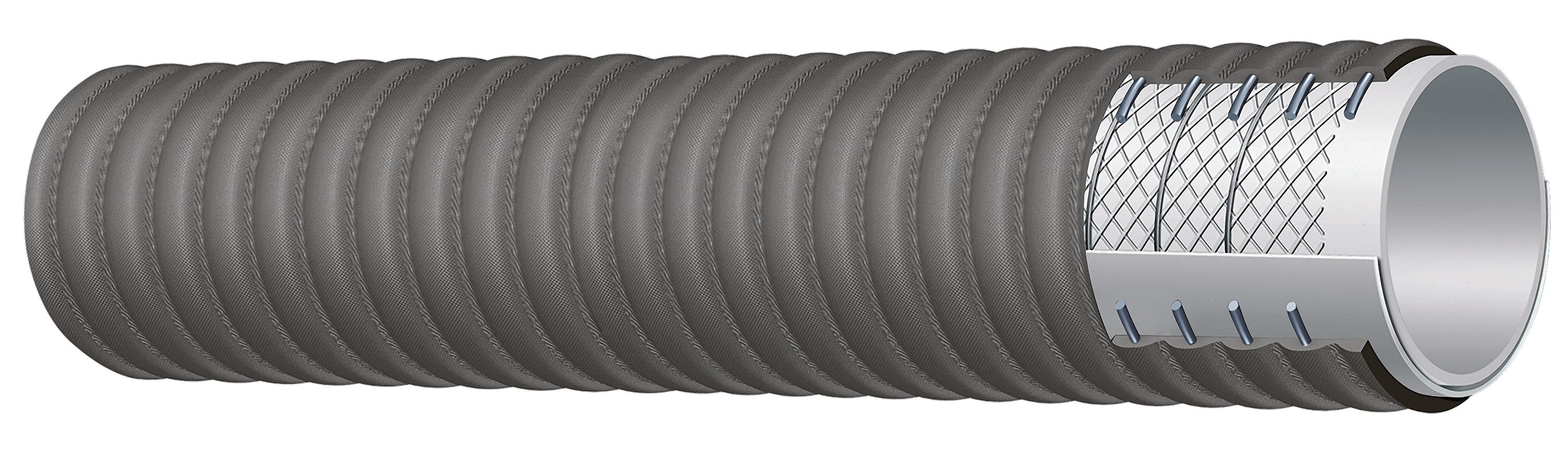

| Reinforcement: | High tensile textile cords with flexible steel helix wire. | Cover: | Gray NBR/PVC - abrasion, ozone and oil resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | ALFAGOMMA - ITALY T426 10 BAR (150 PSI) - GENERAL PURPOSE FOOD QUALITY - S & D (black letters) | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |
| T426LB300X100 | 3" | 76mm | 3.62" | 92mm | 150 PSI | 30 in Hg | 6" | 1.84 lbs/ft |
| T426LB400X100 | 4" | 102mm | 4.65" | 118mm | 150 PSI | 30 in Hg | 8" | 2.69 lbs/ft |
