T422LH200X100 by Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 2" ID | 100ft
T422LH200X100 by Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 2" ID | 100ft

T422LH200X100 by Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 2" ID | 100ft

Sale price$2,191.73

Kuriyama of America Inc.
Alfagomma® The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose

Specially designed for wine, beer and spirits up to 190 proof or 95% alcohol content.
Buy More, Save More!
Quantity Price Each
4–7 $2,060.23
8–14 $1,972.56
15+ $1,753.38
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • T422LH Series
Color(s):
  • Red

SPECIFICATIONS

Application:
  • Brewery suction and discharge.
  • Liquid food and alcoholic beverage suction and discharge, up to 190 proof or 95% alcohol content*.
  • Versatile hose for applications requiring superb flexibility and light weight, while still maintaining high strength and durability.
 SAE Rating: N/A
Other Ratings: 3A (18-03), FDA Tube: White Chlorobutyl meeting 3A (18-03) and FDA requirements

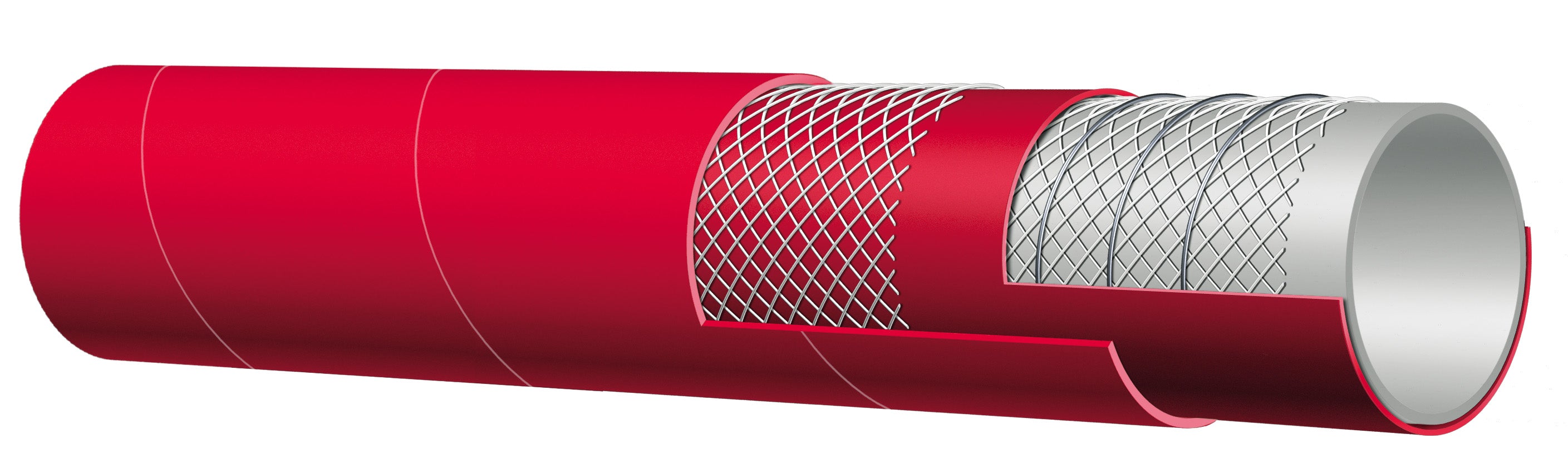

Reinforcement: High tensile textile cords with specially designed embedded helix wires Cover: Red smooth NR/EPDM blend for abrasion and ozone resistance
Temperature Range: -22°F (-30°C) to +226°F (+108°C)
Other Features:
  • Extreme Flexibility - Uniquely designed for maximum flexibility, bends easily around brewery equipment and works well in tight spaces.
  • Lightweight - Up to 25% lighter weight than similar rubber hoses, while still maintaining 150 PSI working pressure.
  • High Heat Resistance - Chlorobutyl tube capable of handling +226°F (+108°C) on a continuous basis. Allows for sterilization with +266°F (+130°C) steam for 30 minutes or with 5% soda solution.
  • High Purity Tube - Will not impart odor or taste.
  • Smooth Cover - Designed for easy cleaning, no gaps or crevices for dirt or bacteria to hide.
  • Also provides a smooth surface for clamping.

*This correction is to rectify the relationship between the unit proof and % alcohol content in the U.S. system. The alcohol content % = 0.5 x Proof. There are discrepancies between proof and % alcohol content as it differs from country to country. Calculations for the U.S. are shown here. EXAMPLE: Proof is a method of measuring the alcohol content of spirits. A spirits' product that has a 40% alcohol content by volume is 80 proof [40 multiplied by 2 = 80].

Part Number ID OD Max.
Recommended
Working
Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Min. Bend Radius
at 68°F		 Standard Length
Coil		 Weight
(Lbs/Ft)
(in.) (mm) (in.) (mm)
T422LH100X100 1" 25mm 1.54" 39mm 150 PSI 30in. Hg 2" 100ft 0.66 lbs
T422LH125X100 1-1/4" 32mm 1.81" 46mm 150 PSI 30in. Hg 2-1/2" 100ft 0.81 lbs
T422LH150X100 1-1/2" 38mm 2.05" 52mm 150 PSI 30in. Hg 3" 100ft 0.93 lbs
T422LH200X100 2" 51mm 2.56" 65mm 150 PSI 30in. Hg 4" 100ft 1.21 lbs
T422LH250X100 2-1/2" 63mm 3.11" 79mm 150 PSI 30in. Hg 5" 100ft 1.81 lbs
T422LH300X100 3" 76mm 3.62" 92mm 150 PSI 27in. Hg 6" 100ft 2.30 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
