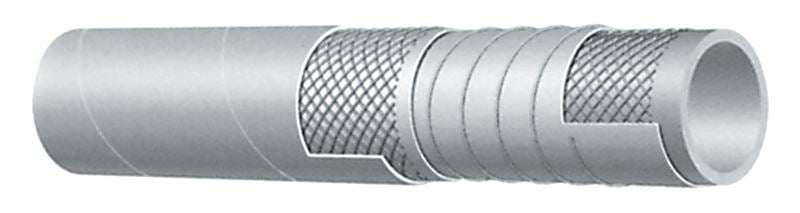

T410LL150X100 Alfagomma by Kuriyama | T410LL Series | Crush Resistant FDA Food & Beverage Suction & Discharge Hose | 1-1/2" ID | 2.05" OD | 240 PSI | White | 100ft Length
Kuriyama of America Inc.
Alfagomma | T410LL Series | 240 PSI Food & Beverage Suction & Discharge Hose - Crush Resistant
For food and alcoholic beverage suction and discharge. Specially designed for wine, beer and spirits, up to 190 proof or 95% alcohol content.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,837.04 |
| 8–14 | $1,758.87 |
| 15+ | $1,563.44 |
Product Data:
240
SPECIFICATIONS
| Application: | - Food and alcoholic beverage suction and discharge. - Specially designed for wine, beer and spirits, up to 190 proof or 95% alcohol content***. - Hose may be sterilized with steam at 226°F (+130°C) for 30 minutes or with 5% soda solution. - Not recommended for dry abrasive materials. |
||
|---|---|---|---|
| Other Ratings: | Meets FDA and 3A (18-03) requirements. | Tube: | White nontoxic CIIR. Meets FDA and 3A (18-03) requirements. |
| Reinforcement: | High tensile textile cords with embedded PET helix. | Cover: | White EPDM - abrasion and ozone resistant. |
| Service Temperature Range: | -22°F (-30°C) to +226°F (+108°C) | Coupling Suggestions: | Quick-Acting couplings attached with bands. |
| Branding: | ALFAGOMMA - ITALY T410 16 BAR (240 PSI) - FOOD SUCTION & DELIVERY - CRUSH RESISTANT (in black letters) | ||
*** This correction is to rectify the relationship between the unit proof and % alcohol content in the U.S. system. The alcohol content % = 0.5 x Proof. There are discrepancies between proof and % alcohol content as it differs from country to country. Calculations for the U.S. are shown here. EXAMPLE: Proof is a method of measuring the alcohol content of spirits. A spirits' product that has a 40% alcohol content by volume is 80 proof [40 multiplied by 2 = 80].
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |
| T410LL100X100 | 1" | 25mm | 1.46" | 37mm | 240 PSI | 30 in Hg | 4" | 0.60 lbs/ft |
| T410LL150X100 | 1-1/2" | 38mm | 2.05" | 52mm | 240 PSI | 30 in Hg | 6" | 1.00 lbs/ft |
| T410LL200X100 | 2" | 51mm | 2.56" | 65mm | 240 PSI | 30 in Hg | 8" | 1.29 lbs/ft |
| T410LL300X100 | 3" | 76mm | 3.62" | 92mm | 240 PSI | 30 in Hg | 12" | 2.23 lbs/ft |
