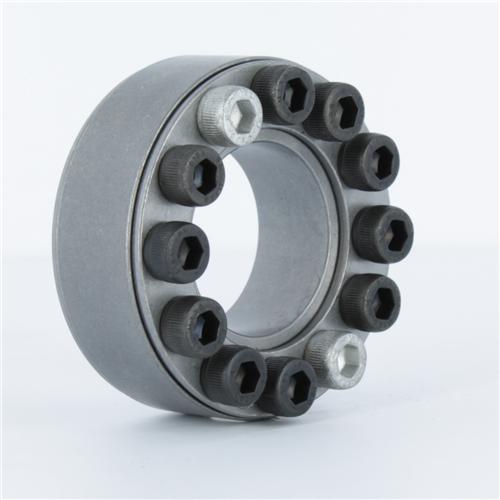

T402106 by Fenner Drives | B-Loc B400 | 1-3/8" | Steel

Overview:
The B-LOC B400 Series 3/4" Keyless Bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 3/4" in diameter by means of a mechanical interference fit and transmits up to a maximum of 234 ft lbs of torque.
Description:
B-LOC B400 Series 3/4" Keyless Bushings provide a zero-backlash frictional connection that will never wear or pound out and can accommodate high-torque, thrust, bending, and/or radial loads. Their self-releasing double taper design permits simple adjustment and removal and there is no axial movement during installation. Since the B-LOC B400 Series Keyless Bushings do not have a flange, the external diameter along the unit's entire length is the same, therefore allowing the unit to be completely inserted into the component bore for flushed or recessed mounting. Best Suited For: Applications that require a recessed installation of the bushing with no axial movement of the mounted component relative to the shaft during tightening. Self-releasing double taper design permits simple adjustment and removal No axial movement during installation Recessed installation without the need for a counterbore Note: This product is not self-centering but Fenner Drives offers pilot bushings that provide pre-centering when required. The pilot bushings are supplied in sets of three (3) bushings and three (3) longer screws (replace plated locking screws). Features of Fenner Drives Keyless Bushings: Ability to transmit higher torques True zero-backlash Less equipment downtime Ability to mount over existing keyways Complete axial and radial adjustability Simple installation, adjustment and removal All Fenner Drives keyless locking devices operate using the simple wedge principle. An axial force is applied- by either a hex nut (Trantorque) or a series of annular screws (B-LOC)- to engage circular steel rings with mating tapers. The resulting wedge action creates a radial force on the tapered rings, one of which contracts to squeeze the shaft while the other expands and presses into the component bore.

SPECIFICATIONS

Series:	B400	Torque Transmission:	234
Axial Movement:	No	Bore Tolerance:	1.852
Component Bore Diameter:	1.850"	Hub Pressure:	16067
Installation Torque:	11 ft ft lb	Internal/ External:	Internal
Material:	Steel	Metric/Inch:	Inch
Releasing/ Locking:	Releasing	Screw Size:	M6 x 18
Self-Centering:	No	Shaft Diameter:	3/4"
Shaft Tolerance:	0.748	Taper:	Double
Thrust:	7501

Part Number	d	D	L	L1	L2	Locking Screw Size		Ma	dB	Mt Max. Transmitted	Th Max. Transmitted	Ph
	(inch)	(inch)	(inch)	(inch)	(inch)	Qty	Size	Install Torque (ft lb)		Torque (ft lb)	Thrust (lbs)	Hub Pressure (PSI)
B402012	3/4"	1.850"	0.669"	0.787"	1.024"	8	M6 x 18	11 ft lb	M8	234 ft lb	7501 lbs	16067
B402014	7/8"	1.850"	0.669"	0.787"	1.024"	8	M6 x 18	11 ft lb	M8	273 ft lb	7501 lbs	16067
B402100	1"	1.969"	0.669"	0.787"	1.024"	9	M6 x 18	11 ft lb	M8	352 ft lb	8439 lbs	16991
B402102	1-1/8"	2.165"	0.669"	0.787"	1.024"	10	M6 x 18	11 ft lb	M8	440 ft lb	9377 lbs	17162
T402103	1-3/16"	2.159"	0.669"	0.787"	1.024"	10	M6 x 18	11 ft lb	M8	464 ft lb	9377 lbs	17212
B402104	1-1/4"	2.362"	0.669"	0.787"	1.024"	12	M6 x 18	11 ft lb	M8	586 ft lb	11252 lbs	18880
T402106	1-3/8"	2.365"	0.669"	0.787"	1.024"	12	M6 x 18	11 ft lb	M8	645 ft lb	11252 lbs	18856
B402107	1-7/16"	2.559"	0.669"	0.787"	1.024"	14	M6 x 18	11 ft lb	M8	786 ft lb	13127 lbs	20331
B402108	1-1/2"	2.559"	0.669"	0.787"	1.024"	14	M6 x 18	11 ft lb	M8	820 ft lb	13127 lbs	20331
B402110	1-5/8"	2.953"	0.787"	0.945"	1.260"	12	M8 x 22	26 ft lb	M10	1381 ft lb	20393 lbs	23267
B402111	1-11/16"	2.953"	0.787"	0.945"	1.260"	12	M8 x 22	26 ft lb	M10	1434 ft lb	20393 lbs	23267
B402112	1-3/4"	2.953"	0.787"	0.945"	1.260"	12	M8 x 22	26 ft lb	M10	1487 ft lb	20393 lbs	23267
B402114	1-7/8"	3.150"	0.787"	0.945"	1.260"	12	M8 x 22	26 ft lb	M10	1593 ft lb	20393 lbs	21812
B402115	1-15/16"	3.150"	0.787"	0.945"	1.260"	12	M8 x 22	26 ft lb	M10	1646 ft lb	20393 lbs	21812
B402200	2"	3.346"	0.787"	0.945"	1.260"	14	M8 x 22	26 ft lb	M10	1983 ft lb	23792 lbs	23951
B402202	2-1/8"	3.346"	0.787"	0.945"	1.260"	14	M8 x 22	26 ft lb	M10	2107 ft lb	23792 lbs	23951
B402203	2-3/16"	3.543"	0.787"	0.945"	1.260"	14	M8 x 22	26 ft lb	M10	2169 ft lb	23792 lbs	22622
B402204	2-1/4"	3.543"	0.787"	0.945"	1.260"	14	M8 x 22	26 ft lb	M10	2231 ft lb	23792 lbs	22620
T402206	2-3/8"	3.531"	0.787"	0.945"	1.260"	14	M8 x 22	26 ft lb	M10	2354 ft lb	23792 lbs	22699
B402207	2-7/16"	3.740"	0.787"	0.945"	1.260"	16	M8 x 22	26 ft lb	M10	2762 ft lb	27191 lbs	24491
B402208	2-1/2"	3.740"	0.787"	0.945"	1.260"	16	M8 x 22	26 ft lb	M10	2832 ft lb	27191 lbs	24491
T402209	2-9/16"	3.737"	0.787"	0.945"	1.260"	16	M8 x 22	26 ft lb	M10	2903 ft lb	27191 lbs	24512
B402210	2-5/8"	4.331"	0.945"	1.102"	1.496"	14	M10 x 25	51 ft lb	M12	4139 ft lb	37844 lbs	24532
B402211	2-11/16"	4.331"	0.945"	1.102"	1.496"	14	M10 x 25	51 ft lb	M12	4238 ft lb	37844 lbs	24532
T402212	2-3/4"	4.337"	0.945"	1.102"	1.496"	14	M10 x 25	51 ft lb	M12	4336 ft lb	37844 lbs	24496
T402214	2-7/8"	4.528"	0.945"	1.102"	1.496"	14	M10 x 25	51 ft lb	M12	4533 ft lb	37844 lbs	23465
B402215	2-15/16"	4.528"	0.945"	1.102"	1.496"	14	M10 x 25	51 ft lb	M12	4632 ft lb	37844 lbs	23465
B402300	3"	4.724"	0.945"	1.102"	1.496"	14	M10 x 25	51 ft lb	M12	4730 ft lb	37844 lbs	22487
B402302	3-1/8"	4.724"	0.945"	1.102"	1.496"	14	M10 x 25	51 ft lb	M12	4928 ft lb	37844 lbs	22487
T402304	3-1/4"	4.921"	0.945"	1.102"	1.496"	16	M10 x 25	51 ft lb	M12	5857 ft lb	43250 lbs	24672
B402306	3-3/8"	4.921"	0.945"	1.102"	1.496"	16	M10 x 25	51 ft lb	M12	6082 ft lb	43250 lbs	24672
B402307	3-7/16"	5.118"	0.945"	1.102"	1.496"	16	M10 x 25	51 ft lb	M12	6195 ft lb	43250 lbs	23723
B402308	3-1/2"	5.118"	0.945"	1.102"	1.496"	16	M10 x 25	51 ft lb	M12	6307 ft lb	43250 lbs	23723
T402312	3-3/4"	5.305"	0.945"	1.102"	1.496"	18	M10 x 25	51 ft lb	M12	7603 ft lb	48656 lbs	25748
T402314	3-7/8"	5.709"	1.024"	1.299"	1.772"	14	M12 x 30	91 ft lb	M14	9320 ft lb	57726 lbs	26204
T402315	3-15/16"	5.709"	1.024"	1.299"	1.772"	14	M12 x 30	91 ft lb	M14	9471 ft lb	57726 lbs	26204
B402400	4"	5.843"	1.024"	1.299"	1.772"	14	M12 x 30	91 ft lb	M14	9320 ft lb	57726 lbs	25602
T402403	4-3/16"	6.102"	1.024"	1.299"	1.772"	14	M12 x 30	91 ft lb	M14	10072 ft lb	57726 lbs	24513
B402407	4-7/16"	6.496"	1.024"	1.299"	1.772"	16	M12 x 30	91 ft lb	M14	12198 ft lb	65972 lbs	26317
B402408	4-1/2"	6.496"	1.024"	1.299"	1.772"	16	M12 x 30	91 ft lb	M14	12370 ft lb	65972 lbs	26317
B402415	4-15/16"	7.087"	1.339"	1.496"	1.969"	20	M12 x 35	91 ft lb	M14	16966 ft lb	82466 lbs	23060
T402500	5"	7.087"	1.339"	1.496"	1.969"	20	M12 x 35	91 ft lb	M14	17180 ft lb	82466 lbs	23060
B402507	5-7/16"	7.480"	1.339"	1.496"	1.969"	22	M12 x 35	91 ft lb	M14	20552 ft lb	90712 lbs	24031
T402508	5-1/2"	7.492"	1.339"	1.496"	1.969"	22	M12 x 35	91 ft lb	M14	20788 ft lb	90712 lbs	23993
B402600	6"	8.268"	1.339"	1.496"	1.969"	26	M12 x 35	91 ft lb	M14	26801 ft lb	107205 lbs	25695
T402607	6-7/16"	8.858"	1.496"	1.732"	2.283"	22	M14 x 40	138 ft lb	M16	31764 ft lb	118419 lbs	23702
B402608	6-1/2"	8.858"	1.496"	1.732"	2.283"	22	M14 x 40	138 ft lb	M16	32072 ft lb	118419 lbs	23702
B402615	6-15/16"	9.252"	1.496"	1.732"	2.283"	24	M14 x 40	138 ft lb	M16	37343 ft lb	129185 lbs	24757
B402700	7"	9.252"	1.496"	1.732"	2.283"	24	M14 x 40	138 ft lb	M16	37679 ft lb	129185 lbs	24757
T402708	7-1/2"	9.823"	1.811"	2.047"	2.598"	28	M14 x 45	138 ft lb	M16	47099 ft lb	150716 lbs	22473
T402714	7-7/8"	10.236"	1.811"	2.047"	2.598"	30	M14 x 45	138 ft lb	M16	52986 ft lb	161481 lbs	23106
T402715	7-15/16"	10.504"	1.811"	2.047"	2.598"	30	M14 x 45	138 ft lb	M16	53407 ft lb	161481 lbs	22517
T402800	8"	10.504"	1.811"	2.047"	2.598"	30	M14 x 45	138 ft lb	M16	53827 ft lb	161481 lbs	22517

TOLERANCE (TL) Bore diameter machined to D -0/+TL
TL = .002" for bores up to 1.969"
.003" for bores up to 4.724"
.004" for bores up to 9.252"
.005" for bores up to 14.764"
.006" for bores over 14.764"
d = Shaft diameter machined to d +0/-TL
