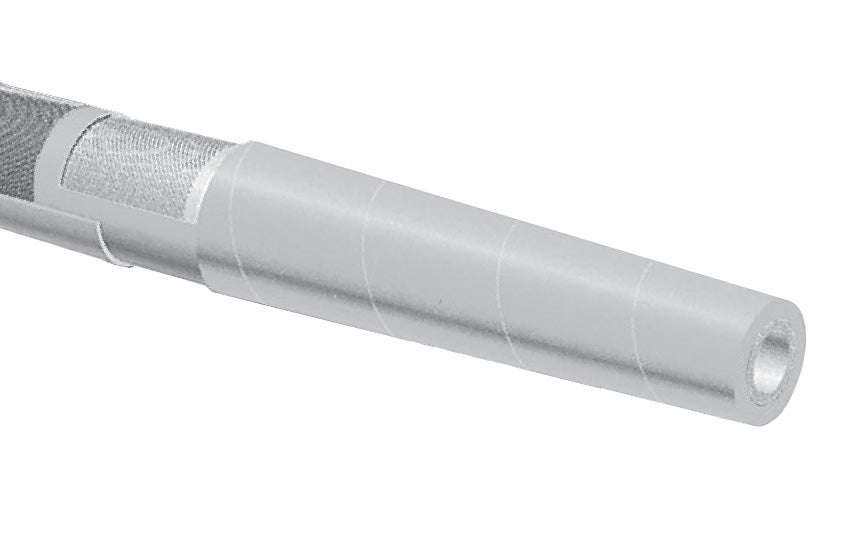

T351LL100X50 Alfagomma by Kuriyama | T351LL Series | Premium Paper Mill/Creamery Wash Down Hot Water Hose | With Tapered Nozzle | 1" ID | 1.46" OD | 150 PSI | White | 50ft Length
Kuriyama of America Inc.
Alfagomma | T351LL / T351LG Series | 150 PSI Premium Paper Mill/Creamery Wash Down Hose With Tapered Nozzle
Designed for general washdown service with hot or cold water in paper mills, food processing, and dairy facilities.
Package Quantity: 50 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $333.63 |
| 15–29 | $301.69 |
| 30+ | $266.20 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Specifications and Approvals:
SPECIFICATIONS
| Application: | For general wash down service, using hot and cold water in paper mills and in food and dairy plants. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | Meets FDA and 3A (18-03) requirements. T351 fully complies with the requirements listed in FDA CFR21. |
Tube: | White EPDM. |
| Reinforcement: | High tensile textile cords. | Cover: | White or green EPDM - heat, abrasion and ozone resistant. |
| Service Temperature Range: | -40°F (-40°C) to +248°F (+120°C) | Coupling Suggestions: | Short shank, long shank couplings (NPT, GHT), barbed inserts attached with bands. |
| Tapered Nozzle Hole Size: | Hose has an additional 6" long built-in tapered nozzle 3/4" and 1" ID: 3/8" 1-1/4" ID: 1/2" 1-1/2" ID: 5/8" |
||
| Part Number White Cover 50ft |
Part Number Green Cover 50ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | ||
| T351LL075X50 | T351LG075X50 | 3/4" | 19mm | 1.22" | 31mm | 150 PSI | 0.44 lbs/ft |
| T351LL100X50 | T351LG100X50 | 1" | 25mm | 1.46" | 37mm | 150 PSI | 0.54 lbs/ft |
| T351LL125X50 | T351LG125X50 | 1-1/4" | 32mm | 1.81" | 46mm | 150 PSI | 0.78 lbs/ft |
| T351LL150X50 | T351LG150X50 | 1-1/2" | 38mm | 2.05" | 52mm | 150 PSI | 0.91 lbs/ft |
