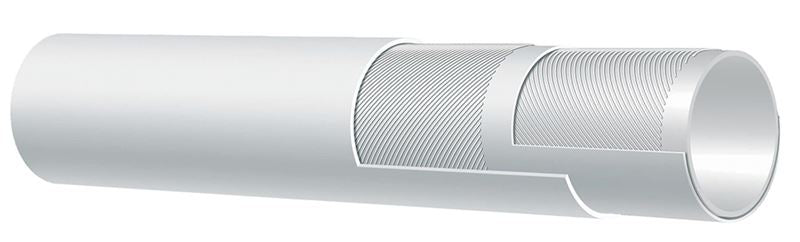

T350LL100X200 Alfagomma by Kuriyama | Premium Paper Mill/Creamery Wash Down Hose | No Nozzle | White | 1" ID | 1.46" OD | 225 PSI | 200ft Length
Kuriyama Alfagomma® T350LH Series 225 PSI Premium Paper Mill/Creamery Wash Down Hose - No Nozzle - Red / White
Package Quantity: 200 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,335.03 |
| 8–14 | $1,278.22 |
| 15+ | $1,136.19 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
225
Tubing Construction:
Cover Construction:
Specifications and Approvals:
SPECIFICATIONS
| Application: | For general wash down service, using hot water or low pressure saturated steam in processing plants and facilities and in food and dairy plants. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | White EPDM. |
| Reinforcement: | High tensile textile cords. | Cover: | Red EPDM - heat, abrasion and ozone resistant. or White EPDM - heat, abrasion and ozone resistant. |
| Temperature Range: | -40 deg. F (-40 deg. C) to 330 deg. F (+165 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Color | Nominal ID | Nominal OD | Max Rec. Working Pressure | Steam Pressure | Standard Length | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | PSI | (ft.) | (lbs./ft.) | ||
| T350LL050X200 | White | 1/2" | 13mm | 0.91" | 23mm | 225 PSI | 90 PSI | 200ft | 0.27 lbs |
| T350LL062X200 | White | 5/8" | 16mm | 1.02" | 26mm | 225 PSI | 90 PSI | 200ft | 0.31 lbs |
| T350LL075X200 | White | 3/4" | 19mm | 1.22" | 31mm | 225 PSI | 90 PSI | 200ft | 0.44 lbs |
| T350LL100X200 | White | 1" | 25mm | 1.46" | 37mm | 225 PSI | 90 PSI | 200ft | 0.54 lbs |
| T350LH075X200 | Red | 3/4" | 19mm | 1.22" | 31mm | 225 PSI | 90 PSI | 200ft | 0.44 lbs |
| T350LH100X200 | Red | 1" | 25mm | 1.46" | 37mm | 225 PSI | 90 PSI | 200ft | 0.54 lbs |
