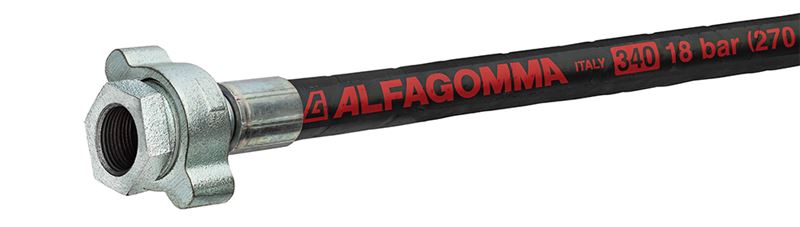

T340AA200GFMPX25 Alfagomma by Kuriyama | T340AA Series | Steam Hose Assembly | 2" ID | 2" Female GJ x 2" Male NPT | 270 PSI | Black | 25ft Length
Alfagomma® by Kuriyama
T340AA / T340AH Series | EPDM Braided Steam Hose Assembly
A Steam hose, for use with high pressure industrial equipment cleaning at refineries, processing plants and shipyards.
Can be used in the thawing and de-icing of outdoor pipes and other equipment during cold temperatures.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $767.56 |
| 15–29 | $694.07 |
| 30+ | $612.41 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
270
Tubing Construction:
Cover Construction:
Shape:
Straight
Special Properties:
SPECIFICATIONS
| Applications: | Saturated steam applications up to 270 PSI and 410°F. High pressure industrial equipment cleaning at refineries, processing plants and shipyards. Thawing and de-icing of outdoor pipes and other equipment during cold temperatures. |
||
|---|---|---|---|
| Hose Ends: | Crimped-On Fittings | Tube: | Black, conductive EPDM. |
| Reinforcement: | Single high tensile steel wire braid (1/2" Size), Two high tensile steel wire braids (3/4" to 3"). | Cover: | Red or black pin-pricked EPDM. |
| Service Temperature Range: | Saturated Steam. Constant Operation: -40°F (-40 °C) to +410°F (+210°C) Intermittent to +450°F (+232°C) |
Coupling Suggestions: | - |
| Branding: | - | ||
| Other Features: | |||
|
|||
| T340AA Series | Black Cover | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ID | Max. Rec.* Working Pressure |
Min. Bend Radius at 68°F |
Fitting Type | Length | Weight | |||
| (in) | (mm) | PSI | (in) | (lbs/each) | |||||
| T340AA050MPMPX50 | 1/2" | 13mm | 270 PSI | 5" | Male NPT x Male NPT | 50ft | 14.11 lbs/ft | ||
| T340AA075GFGFX50 | 3/4" | 19mm | 270 PSI | 7-1/2" | Female GJ x Female GJ | 50ft | 33.51 lbs/ft | ||
| T340AA075GFMPX25 | 3/4" | 19mm | 270 PSI | 7-1/2" | Female GJ x Male NPT | 25ft | 12.60 lbs/ft | ||
| T340AA075GFMPX50 | 3/4" | 19mm | 270 PSI | 7-1/2" | Female GJ x Male NPT | 50ft | 25.10 lbs/ft | ||
| T340AA075MPMPX50 | 3/4" | 19mm | 270 PSI | 7-1/2" | Male NPT x Male NPT | 50ft | 26.01 lbs/ft | ||
| T340AA100GFGFX50 | 1" | 25mm | 270 PSI | 10" | Female GJ x Male NPT | 50ft | 38.14 lbs/ft | ||
| T340AA100GFMPX25 | 1" | 25mm | 270 PSI | 10" | Female GJ x Male NPT | 25ft | 15.40 lbs/ft | ||
| T340AA100GFMPX50 | 1" | 25mm | 270 PSI | 10" | Female GJ x Male NPT | 50ft | 30.60 lbs/ft | ||
| T340AA100MPMPX50 | 1" | 25mm | 270 PSI | 10" | Male NPT x Male NPT | 50ft | 32.41 lbs/ft | ||
| T340AA200GFMPX25 | 2" | 51mm | 270 PSI | 20" | Female GJ x Male NPT | 25ft | 40.34 lbs/ft | ||
| T340AA200GFMPX50 | 2" | 51mm | 270 PSI | 20" | Female GJ x Male NPT | 50ft | 76.06 lbs/ft | ||
* *10:1 Safety Factor
| T340AH Series | Red Cover | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ID | Max. Rec.* Working Pressure |
Min. Bend Radius at 68°F |
Fitting Type | Length | Weight | |||
| (in) | (mm) | PSI | (in) | (lbs/each) | |||||
| T340AH075GFMPX25 | 3/4" | 19mm | 270 PSI | 7-1/2" | Female GJ x Male NPT | 25ft | 12.60 lbs/ft | ||
| T340AH075GFMPX50 | 3/4" | 19mm | 270 PSI | 7-1/2" | Female GJ x Male NPT | 50ft | 25.40 lbs/ft | ||
| T340AH100GFMPX25 | 1" | 25mm | 270 PSI | 10" | Female GJ x Male NPT | 25ft | 15.50 lbs/ft | ||
| T340AH100GFMPX50 | 1" | 25mm | 270 PSI | 10" | Female GJ x Male NPT | 50ft | 31.10 lbs/ft | ||
* *10:1 Safety Factor
