T32-8X8 by Couplamatic | T Series Coupling | 1/2" Hose ID x 13/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 10
Package Quantity: 10 EA
Buy more, save moreDiscounts applied in cart/checkout.
T Series — PTFE / Reduced OD 100R7
T32 T Series — O-Ring Face Seal (ORF), Female Swivel, 90° Elbow
T32 is the O-Ring Face Seal (ORF), Female Swivel, 90° Elbow configuration of the T Series, terminating SAE 100R14 PTFE hose, 1/4"–3/8" reduced OD 100R7 hose, and standard 1/2"–1" 100R7 hose.
1
What are the main product features?
- The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
- Trivalent Zinc Plating
- Covers PTFE and reduced OD hose — the configurations the 3 Series does not fit.
- Minimum order quantities apply — 10 pieces for 3/16"–1/2", 5 pieces for 3/4" and 1".
2
Which sizes are available?

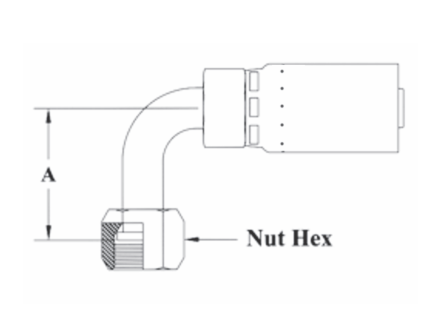

| Part Number | Hose ID | Thread Size | Tube OD | A-DropInches | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Weatherhead E | ||||||
| T32-4X4 | 1/4" | 9/16x18 | 1/4" | .78" | 11/16" | 04E-A24 |
| T32-4X6 | 1/4" | 11/16x18 | 3/8" | .90" | 13/16" | 04E-A26 |
| T32-5X6 | 5/16" | 11/16x16 | 3/8" | .90" | 13/16" | 05E-A26 |
| T32-6X6 | 3/8" | 11/16x16 | 3/8" | .90" | 13/16" | 06E-A26 |
| T32-6X8 | 3/8" | 13/16x16 | 1/2" | 1.15" | 15/16" | 06E-A28 |
| T32-8X8 | 1/2" | 13/16x16 | 1/2" | 1.15" | 15/16" | 08E-A28 |
| T32-12X12 | 3/4" | 1-3/16x12 | 3/4" | 1.88" | 1-3/8" | 12E-A32 |
| T32-16X16 | 1" | 1-7/16x12 | 1" | 2.20" | 1-5/8" | 16E-A36 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
