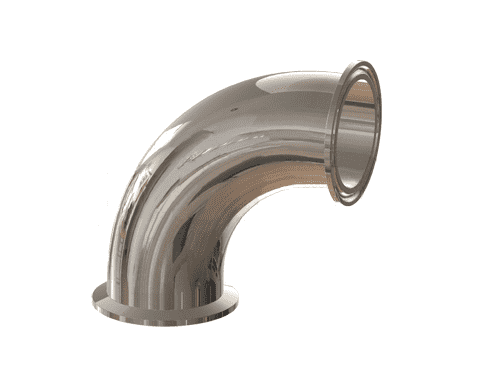

T2CMP-050PL Dixon Valve 1/2" 316L Stainless Steel High Purity BioPharm 90 deg. Clamp x Clamp Elbow with a PL finish - SF1

T2CMP-050PL Dixon Valve 1/2" 316L Stainless Steel High Purity BioPharm 90 deg. Clamp x Clamp Elbow with a PL finish - SF1

Sale price$69.61

Dixon Bio-Pharmaceutical Fittings (BPE) - High Purity BioPharm 90 deg. Clamp x Clamp Elbows - 316L Stainless Steel - PL finish - SF1
Buy More, Save More!
Quantity Price Each
10–39 $65.43
40–79 $59.17
80+ $52.21
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Sanitary Clamp End
  • 1/2in Sanitary Clamp End
  • Some Ends Match
Material(s):
  • 316L Stainless Steel
Applications:
  • High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Notes:
  • PL Finish - SF1:
    • OD = 32Ra Mechanically Polished
    • ID = 20Ra Mechanically Polished
  • PM Finish - SF4:
    • OD = 32Ra Mechanically Polished
    • ID = 15Ra Mechanically Polished and Electropolished
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
Part Number Size Dimensions Weight (Lbs.)
A
T2CMP-050PL 1/2" 1.625" 0.0900
T2CMP-075PL 3/4" 1.625" 0.1500
T2CMP-100PL 1" 2.000" 0.4000
T2CMP-150PL 1-1/2" 2.750" 0.4400
T2CMP-200PL 2" 3.500" 0.8500
T2CMP-250PL 2-1/2" 4.250" N/A
T2CMP-300PL 3" 5.000" 1.6400
T2CMP-400PL 4" 6.625" 3.4000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
