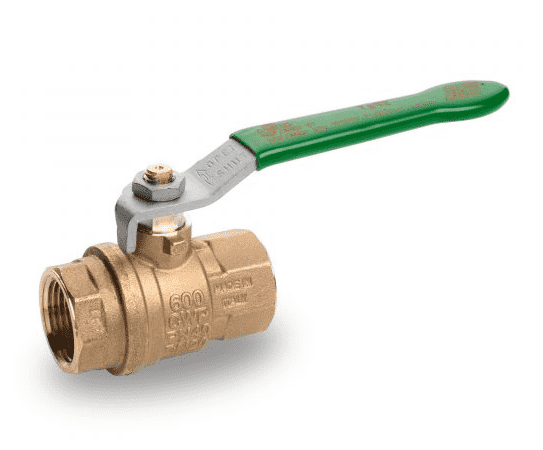

T292C41 by RuB Inc. | PURI-T Series Drinking Water Ball Valve | 3/8" Female NPT x 3/8" Female NPT | with Green Steel Handle | Brass | Pack of 14

T292C41 by RuB Inc. | PURI-T Series Drinking Water Ball Valve | 3/8" Female NPT x 3/8" Female NPT | with Green Steel Handle | Brass | Pack of 14

Sale price$209.55

RuB Inc. - Puri-T Series Drinking Water Ball Valve - T292 Series - Female NPT x Female NPT - with Green Steel Handle

Package Quantity: 14 Units

Buy More, Save More!
Quantity Price Each
5–19 $196.98
20–59 $178.12
60+ $157.16
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Female NPT
  • 3/8in Female NPT
  • Some Ends Match
Material(s):
  • Lead Free Brass
Quality:
  • Certified by CSA International to comply with U.S. s3874, California AB1953, and similar laws of other states for the safe handling of drinking water
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Handle stops on body to avoid stresses at stem
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Chrome plated lead free brass ball for longer life
Stem:
  • Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
  • Blowout-proof unplated lead free brass stem
Sealing:
  • Glass filled pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service
Working Pressure & Temperature:
  • Maximum working pressure 600 PSI (CWP)
  • -40°F/+350°F
  • NSF 61 limits (CSA approval): tested for use in continuous exposure to water of ambient temperature
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon request:
  • Custom design
  • Pure PTFE seals
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • Certified by CSA International for Drinking Water to NSF/ANSI 61 - NSF/ANSI 372 (USA)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G A H CH
T292B41 1/4" 1/4" 0.314" 0.472" 1.771" 0.885" 3.228" 1.563" 0.787"
T292C41 3/8" 3/8" 0.393" 0.472" 1.771" 0.885" 3.228" 1.563" 0.787"
T292D41 1/2" 1/2" 0.590" 0.610" 2.322" 1.161" 3.937" 1.695" 0.984"
T292E41 3/4" 3/4" 0.787" 0.669" 2.519" 1.259" 4.724" 1.988" 1.220"
T292F41 1" 1" 0.984" 0.826" 3.188" 1.594" 4.724" 2.153" 1.574"
T292G41 1-1/4" 1-1/4" 1.259" 0.905" 3.661" 1.830" 6.220" 2.988" 1.929"
T292H41 1-1/2" 1-1/2" 1.574" 0.905" 4.015" 2.007" 6.220" 3.236" 2.125"
T292I41 2" 2" 1.968" 1.043" 4.763" 2.381" 6.220" 3.500" 2.696"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
