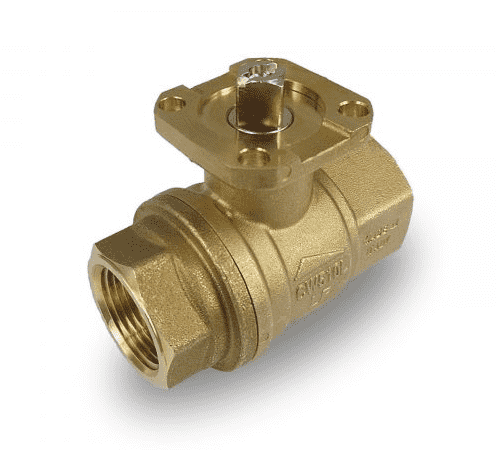

T264G41 by RuB Inc. | PURI-T Series Drinking Water Ball Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | with ISO 5211 Actuator Flange | Brass | Pack of 10

T264G41 by RuB Inc. | PURI-T Series Drinking Water Ball Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | with ISO 5211 Actuator Flange | Brass | Pack of 10

Sale price$982.98

RuB Inc. - Puri-T Series Drinking Water Ball Valve - T264 Series - Female NPT x Female NPT - with ISO 5211 Actuator Flange

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $924.00
15–29 $835.53
30+ $737.24
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Female NPT
  • 1-1/4in Female NPT
  • Some Ends Match
Material(s):
  • Lead Free Brass
Quality:
  • Certified by CSA International to comply with U.S. s3874, California AB1953, and similar laws of other states for the safe handling of drinking water
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Silicone-free lubricant on all seals
  • Chrome plated lead free brass ball for longer life
Body:
  • Hot forged sand blasted, unplated lead free brass body and cap sealed with Loctite® or equivalent thread sealant
  • Integrated ISO 5211 and DIN 3337 mounting flange for universal connection to actuator
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Blowout-proof nickel plated lead free brass stem
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • Reinforced PTFE self-lubricating seats with flexible-lip and wear compensation design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • 100% full port for maximum flow
Handle:
  • Integrated sturdy ISO 5211 flange allows direct mounting of electric and pneumatic actuators, with no bracket or coupling required.
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • Maximum working pressure 600 PSI (CWP)
  • -40°F/+350°F
  • For 1" size up to 1-1/2" size:
    • -Shell rating: 600 PSI
    • -Seat rating: Delta P max permissible 230 PSI
  • Non-shock cold working pressure
  • NSF 61 limits (CSA approval): tested for use in continuous exposure to water of ambient temperature
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon request:
  • Custom design
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • Certified by CSA International for Drinking Water to NSF/ANSI 61 - NSF/ANSI 372 (USA)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G H CH Ø A B C E F Flange Connection
DIN ISO 5211
DIN 3337
T264D41 1/2" 1/2" 0.590" 0.610" 2.598" 1.201" 1.220" 1.063" 1.417" 0.354" 0.220" 0.984" 0.295" F03
T264E41 3/4" 3/4" 0.787" 0.708" 2.933" 1.456" 1.515" 1.259" 1.417" 0.354" 0.220" 0.984" 0.334" F03
T264F41 1" 1" 0.984" 0.826" 3.562" 1.791" 1.673" 1.614" 1.417" 0.354" 0.220" 0.984" 0.334" F03
T264G41 1-1/4" 1-1/4" 1.259" 0.905" 4.094" 2.047" 1.941" 1.968" 1.417" 0.354" 0.220" 0.984" 0.334" F03
T264H41 1-1/2" 1-1/2" 1.575" 0.964" 4.606" 2.322" 2.441" 2.165" 1.968" 0.551" 0.259" 1.378" 0.570" F05

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
