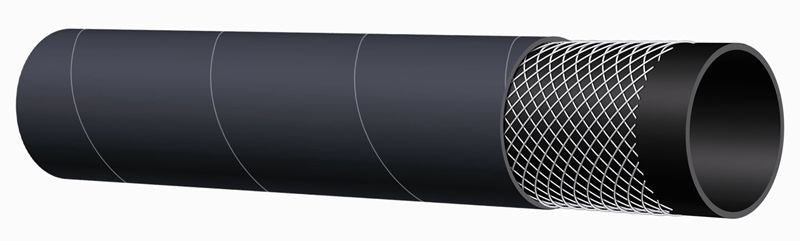

T254AA200X100 Alfagomma by Kuriyama | T254AA Series | Water Discharge Hose | 2" ID | 2.40" OD | 150 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | T254AA Series | 150 PSI SBR Water Discharge Hose
Suitable for water discharge operations in construction, irrigation, and general industrial use.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $887.06 |
| 15–29 | $802.13 |
| 30+ | $707.76 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Water discharge hose for construction and irrigation. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | - | Tube: | Black SBR. |
| Reinforcement: | High tensile textile cords. | Cover: | Black SBR - abrasion and ozoneresistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | - | ||
| Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | ||
| - | T254AA150X100 | 1-1/2" | 38mm | 1.89" | 48mm | 150 PSI | 0.66 lbs/ft |
| - | T254AA200X100 | 2" | 51mm | 2.40" | 61mm | 150 PSI | 0.87 lbs/ft |
| - | T254AA300X100 | 3" | 76mm | 3.46" | 88mm | 150 PSI | 1.54 lbs/ft |
| - | T254AA400X100 | 4" | 102mm | 4.49" | 114mm | 150 PSI | 2.08 lbs/ft |
| T254AA600X100 | 6" | 152mm | 6.54" | 166mm | 150 PSI | 3.13 lbs/ft | |
| T254AA800X50 | T254AA800X100 | 8" | 203mm | 8.62" | 219mm | 150 PSI | 4.64 lbs/ft |
