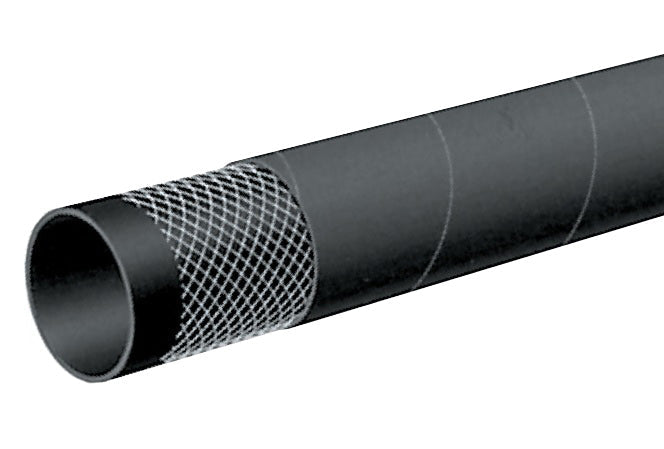

T253AA662X100 Alfagomma by Kuriyama | T253AA Series | Layflat Water Discharge Hose (Elephant Trunk Hose) | 6-5/8" ID | 7.01" OD | 150 PSI | EPDM | Black | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | High pressure, 150 PSI lay flat type hose for general industrial construction and irrigation. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | - | Tube: | Black EPDM. |
| Reinforcement: | High tensile textile cords. | Cover: | Black EPDM - abrasion and ozoneresistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | Alfagomma - Italy - T253 10 Bar (150 PSI) EPDM WATER DISCHARGE (in green letters) | ||
| Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | ||
| - | T253AA150X100 | 1-1/2" | 38mm | 1.81" | 46mm | 150 PSI | 0.37 lbs/ft |
| - | T253AA200X100 | 2" | 51mm | 2.32" | 59mm | 150 PSI | 0.50 lbs/ft |
| - | T253AA250X100 | 2-1/2" | 63mm | 2.80" | 71mm | 150 PSI | 0.60 lbs/ft |
| - | T253AA300X100 | 3" | 76mm | 3.31" | 84mm | 150 PSI | 0.86 lbs/ft |
| - | T253AA400X100 | 4" | 102mm | 4.33" | 110mm | 150 PSI | 1.19 lbs/ft |
| T253AA600X50 | T253AA600X100 | 6" | 152mm | 6.38" | 162mm | 150 PSI | 2.00 lbs/ft |
| T253AA662X50* | T253AA662X100* | 6-5/8" | 168mm | 7.01" | 178mm | 150 PSI | 2.17 lbs/ft |
| T253AA800X50 | T253AA800X100 | 8" | 203mm | 8.46" | 215mm | 150 PSI | 2.82 lbs/ft |
| T253AA1000X50 | T253AA1000X100 | 10" | 254mm | 10.63" | 270mm | 150 PSI | 5.11 lbs/ft |
| T253AA1200X50 | - | 12" | 305mm | 12.56" | 319mm | 150 PSI | 5.93 lbs/ft |
* 6-5/8" referred to as Elephant Trunk Hose - Ideal for "Irrigation Boots."
