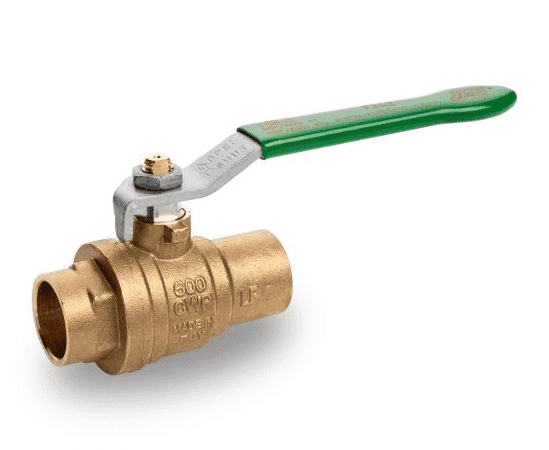

T242F00 by RuB Inc. | PURI-T Series Drinking Water Ball Valve | 1" Solder End x 1" Solder End | with Green Steel Handle | Brass | Pack of 10

T242F00 by RuB Inc. | PURI-T Series Drinking Water Ball Valve | 1" Solder End x 1" Solder End | with Green Steel Handle | Brass | Pack of 10

Sale price$369.26

RuB Inc. - Puri-T Series Drinking Water Ball Valve - T242 Series - Solder Ends x Solder Ends - with Green Steel Handle

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $347.10
15–29 $313.87
30+ $276.95
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Solder End
  • 1in Solder End
  • Some Ends Match
Material(s):
  • Lead Free Brass
Quality:
  • Certified by CSA International to comply with U.S. s3874, California AB1953, and similar laws of other states for the safe handling of drinking water
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated lead free brass ball for longer life
  • Handle stops on body to avoid stresses at stem
Body:
  • Hot forged sand blasted, unplated lead free brass body and cap sealed with Loctite® or equivalent thread sealant
Stem:
  • Pure PTFE adjustable packing gland and reinforced PTFE washer for lower torque and easy maintenance
  • Blowout-proof unplated lead free brass stem
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • Solder-end ANSI B16.18 female by female connections
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service
Working Pressure & Temperature:
  • Maximum working pressure 600 PSI (CWP)
  • -40°F/+350°F
  • NSF 61 limits (CSA approval): tested for use in continuous exposure to water of ambient temperature
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon request:
  • Glass filled PTFE seals
  • AISI 430 stainless steel handle
  • Custom design
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • Certified by CSA International for Drinking Water to NSF/ANSI 61 - NSF/ANSI 372 (USA)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D
(Nominal)		 D
(Actual)		 DN I L G A H
T242D00 1/2" 1/2" 0.6271" 0.590" 0.492" 2.244" 1.181" 3.937" 1.695"
T242E00 3/4" 3/4" 0.8771" 0.787" 0.748" 2.854" 1.476" 4.724" 1.988"
T242F00 1" 1" 1.1279" 0.984" 0.905" 3.346" 1.673" 4.724" 2.153"
T242G00 1-1/4" 1-1/4" 1.3779" 1.259" 0.964" 3.819" 1.909" 6.220" 2.988"
T242H00 1-1/2" 1-1/2" 1.6279" 1.574" 1.102" 4.488" 2.244" 6.220" 3.236"
T242I00 2" 2" 2.1279" 1.968" 1.338" 5.433" 2.716" 6.220" 3.500"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
