T23-6X6 by Couplamatic | T Series Coupling | 3/8" Hose ID x 5/8x18 Thread Size SAE 45° Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 5

T23-6X6 by Couplamatic | T Series Coupling | 3/8" Hose ID x 5/8x18 Thread Size SAE 45° Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 5

Sale price$54.04

Package Quantity: 5 EA

Buy more, save moreDiscounts applied in cart/checkout.
T Series — PTFE / Reduced OD 100R7

T23 T Series — SAE 45°, Female Swivel, 90° Elbow

T23 is the SAE 45°, Female Swivel, 90° Elbow configuration of the T Series, terminating SAE 100R14 PTFE hose, 1/4"–3/8" reduced OD 100R7 hose, and standard 1/2"–1" 100R7 hose.

1

What are the main product features?
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating
  • Covers PTFE and reduced OD hose — the configurations the 3 Series does not fit.
  • Minimum order quantities apply — 10 pieces for 3/16"–1/2", 5 pieces for 3/4" and 1".
2

Which sizes are available?

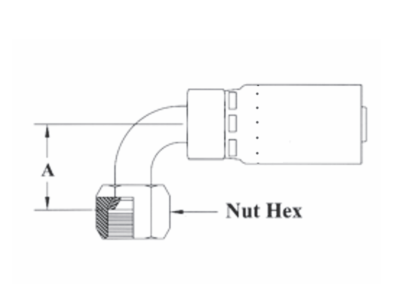

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead E
T23-5X6 5/16" 3/8" 5/8x18 0.91" 3/4" 05E-466
T23-6X6 3/8" 3/8" 5/8x18 0.91" 3/4" 06E-466
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Additional Product Data:

Series:
  • T Series
Shape:

90 Degree

Ends Configuration:
  • 3/8in Female SAE 45 Flare
  • 3/8in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
