T204AA800X25 Alfagomma by Kuriyama | T204AA Series | Water Suction & Discharge Hose | 8" ID | 8.70" OD | 75 PSI | Black | 25ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Water Hose
T204® Water Suction & Discharge Hose
A flexible steel-helix reinforced hose built for suction and discharge of water in irrigation and construction applications.
75 PSI Rated
Up to 24 inHg vacuum

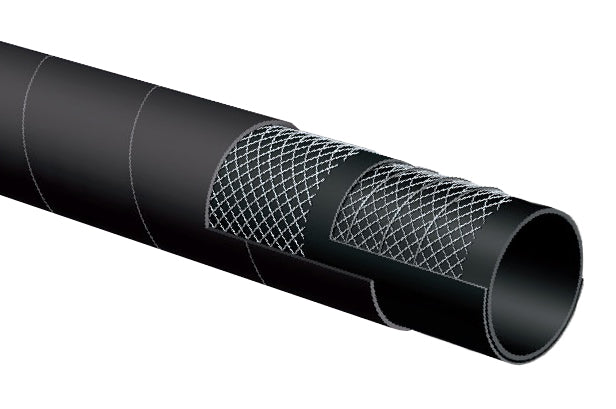

Steel Helix Reinforced
Spiraled textile cords with flexible steel wire
Ozone & Abrasion Resistant Cover
Black SBR construction
Kink Resistant
Maintains shape under vacuum
1
What is this product used for?
- Water suction
- Water discharge
- Irrigation service
- Construction service
2
What are the key specifications?
Application
Suction and discharge of water for irrigation and construction.
Service Temperature Range
-22°F (-30°C) to +176°F (+80°C)
Tube
Black SBR.
Reinforcement
Spiraled high tensile textile cords with flexible steel helix wire.
Cover
Black SBR — ozone and abrasion resistant.
Branding
ALFAGOMMA - ITALY - T204 (embossed)
Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
3
Which options or configurations are available?
| Part Number | Length | ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| 6" ID | |||||||||
| T204AA600X20 | 20ft | 6" | 152mm | 6.54" | 166mm | 75 PSI | 24 inHg | 30" | 4.13 lbs/ft |
| T204AA600X25 | 25ft | 6" | 152mm | 6.54" | 166mm | 75 PSI | 24 inHg | 30" | 4.13 lbs/ft |
| T204AA600X50 | 50ft | 6" | 152mm | 6.54" | 166mm | 75 PSI | 24 inHg | 30" | 4.13 lbs/ft |
| T204AA600X100 | 100ft | 6" | 152mm | 6.54" | 166mm | 75 PSI | 24 inHg | 30" | 4.13 lbs/ft |
| 8" ID | |||||||||
| T204AA800X20 | 20ft | 8" | 203mm | 8.70" | 221mm | 75 PSI | 21 inHg | 40" | 7.06 lbs/ft |
| T204AA800X25 | 25ft | 8" | 203mm | 8.70" | 221mm | 75 PSI | 21 inHg | 40" | 7.06 lbs/ft |
